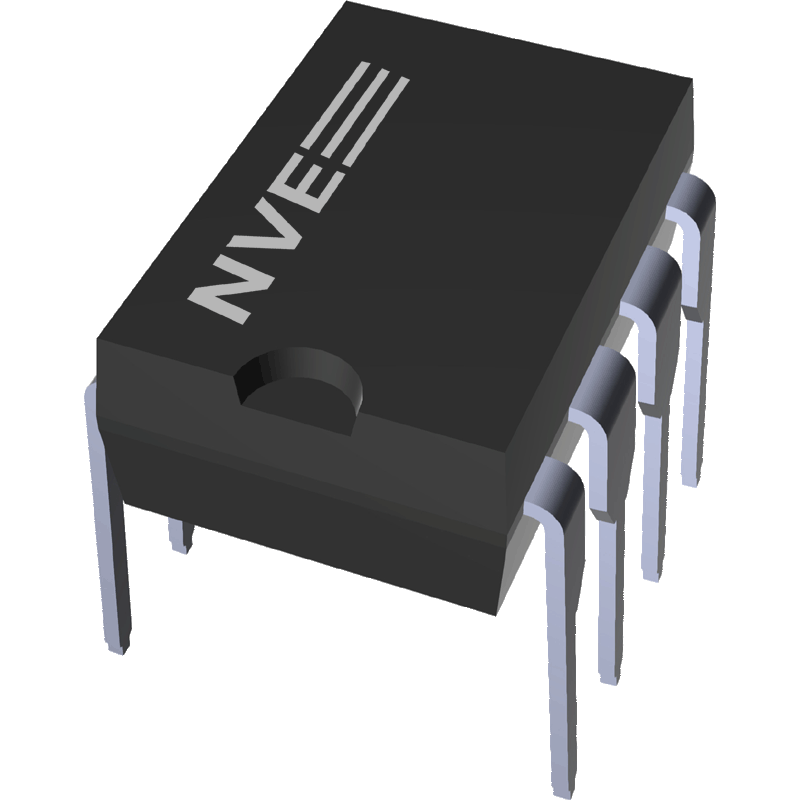

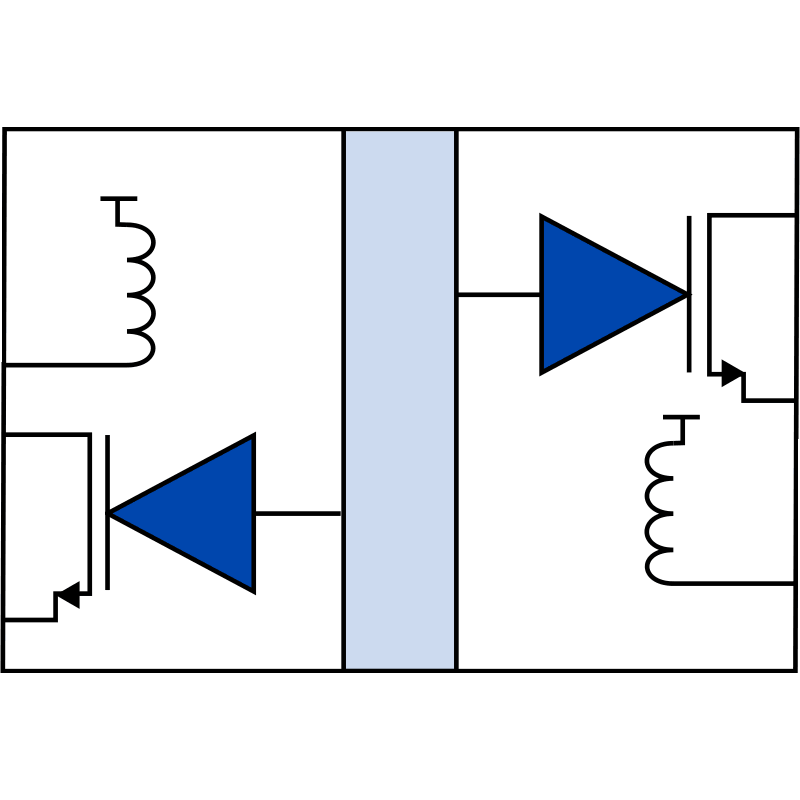

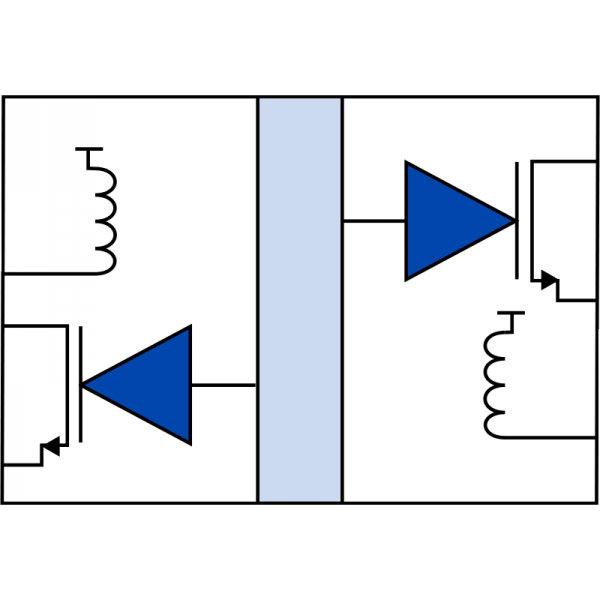

The IL612A-2E is a 3.3/5V, dual-channel, 10 Mbps isolated signal coupler with open-drain transistor outputs, which can be used to replace optocouplers in many standard isolation functions. The device is manufactured with NVE IsoLoop GMR Sensor technology giving exceptionally small size and low power dissipation. The passive input structure allows direct interface to a very wide range of voltage inputs. A single resistor is used to set maximum current for input voltages above 0.5 V. 20 kV/microsecond transient immunity. 8-pin DIP package.
RoHS compliant.
Lead-free product information
