IL4622E: Isolated RS422 Transceiver w/3.3-3.3V DC-DC Convertor, 2.5 kV, Wide SOIC

  • Part Number
  • IL4622E
  • Bus Load (Unit Load)
  • 1/5
  • Max. Temperature (°C)
  • 85
  • Isolation Voltage (Vrms)
  • 2500

Description:

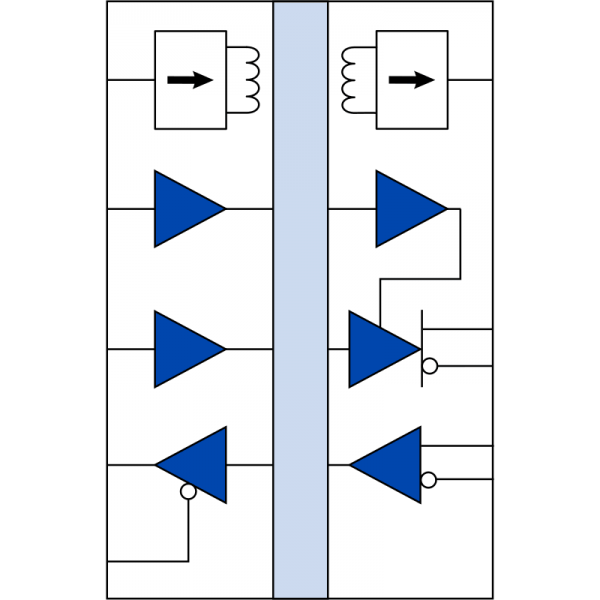

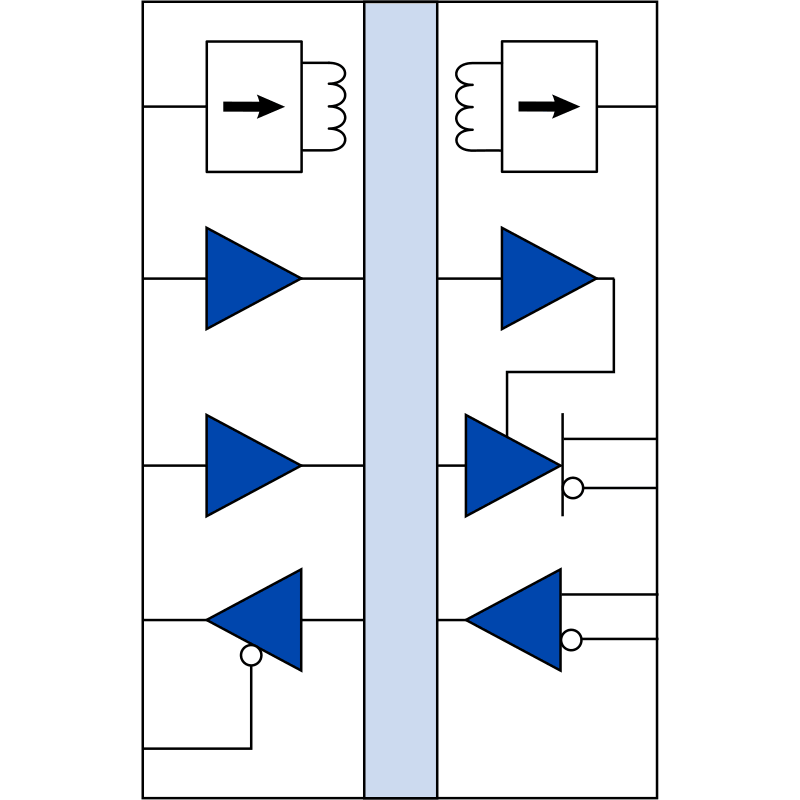

The IL4622 is an isolated, full-duplex 40 Mbps 3.3-volt bus RS-422 / RS-485 transceiver with an integrated 3.3V-to-3.3V DC-DC convertor.

The transceiver runs up to 40 Mbps, has a 1/5 Unit Load.

The DC-DC convertor can output up to 80 mA and is fully regulated.

2500 VRMS isolation; 16.5 kV bus ESD protection; 16-pin wide-body SOIC package with True 8™ mm creepage.
$9.32
1 - 9 $9.32
10 - 24 $8.70
25 - 99 $7.62
100 - 499 $6.60
500 + $6.30
4285 in stock
