IL41050TFD-1E: Isolated CAN FD Transceiver, 125C, 5 Mbps, 2.5 kV, QSOP
IL41050TFD-1E: Isolated CAN FD Transceiver, 125C, 5 Mbps, 2.5 kV, QSOP
Part Number
IL41050TFD-1E
Bus
CAN-FD
Bus Load (Unit Load)
1
Bus Voltage (V)
5
Speed (Mbps)
5
Max. Temperature (°C)
125
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
Package
QSOP16
Electronic Data Automation
(External Link)
Data Sheet
(.pdf)
Description:

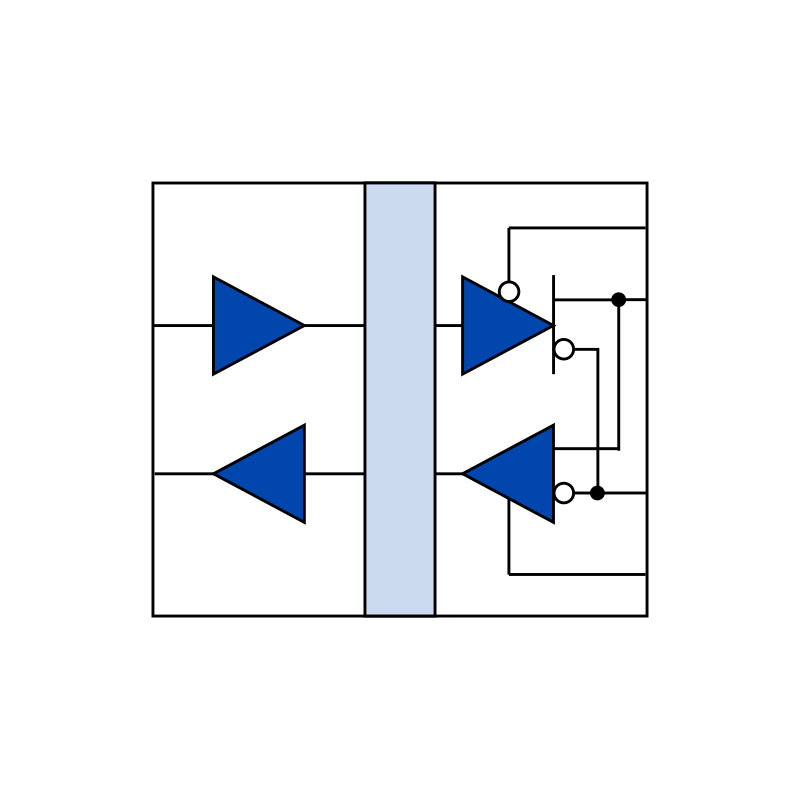

The IL41050TFD-1E is an ultraminiature isolated CAN FD transceiver with no performance compromises. 125C; 5 Mbps; 3.3 V or 5.0 V input logic.

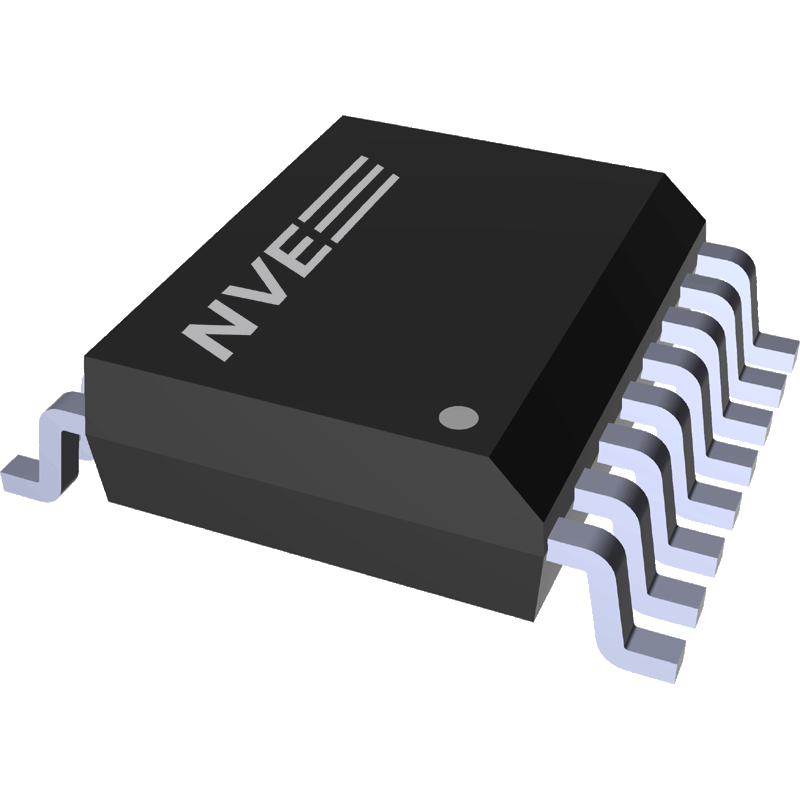

16-pin QSOP package--the world smallest isolated transceiver.
$
4.52
1 - 9
$
4.52
10 - 24
$
4.22
25 - 99
$
3.70
100 - 499
$
3.21
500 +
$
3.06
Qty:
3831 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
Related Products
IL41050TFD-1-01: QSOP Isolated CAN FD Evaluation Board
$49.95
