IL3685VE: 6 kV Isolated PROFIBUS-Compatible RS485 Transceiver, Wide SOIC

  • Part Number
  • IL3685VE
  • Bus Load (Unit Load)
  • Bus Voltage (V)
  • Max. Temperature (°C)

Description:

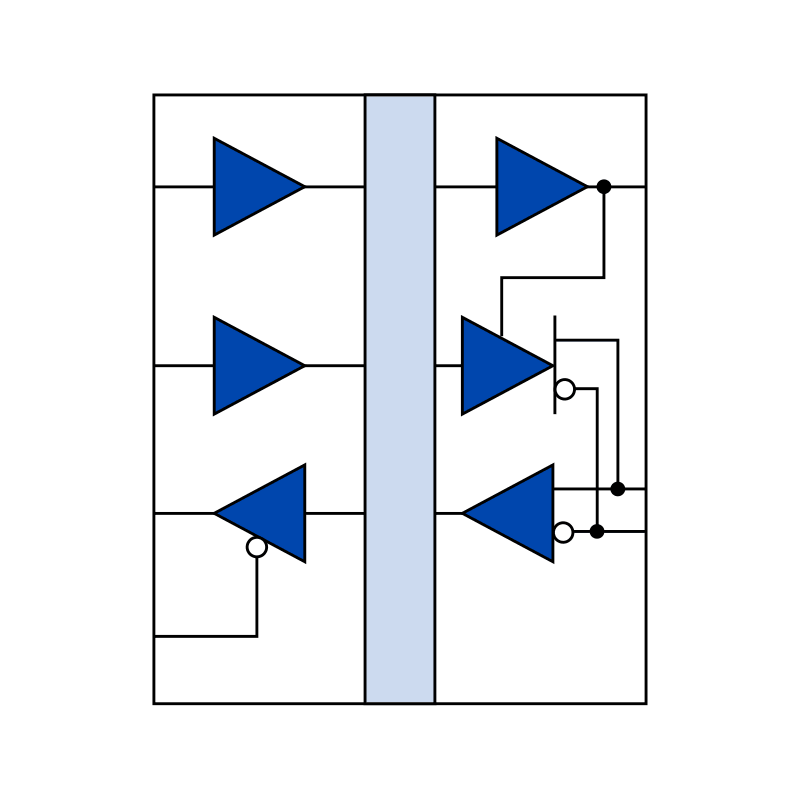

The IL3685 is a 6 kVrms isolated 40 Mbps RS-485 transceiver that is fully PROFIBUS compliant. 3.3 V or 5 V input logic. 15 kV bus ESD protection; 50 kV per microsecond transient immunity. 16-pin wide-body SOIC package with True 8™ mm creepage.

RoHS compliant.

Lead-free product information

$6.07
1 - 9 $6.07
10 - 24 $5.67
25 - 99 $4.96
100 - 499 $4.30
500 + $4.11
8202 in stock
