IL3685TE: 40 Mbps Isolated RS485 Transceiver, 125C, 2.5kV, Wide SOIC

  • Part Number
  • IL3685TE
  • Bus Load (Unit Load)
  • 1/5
  • Bus Voltage (V)
  • 5
  • Max. Temperature (°C)
  • 125
  • Isolation Voltage (Vrms)
  • 2500

Description:

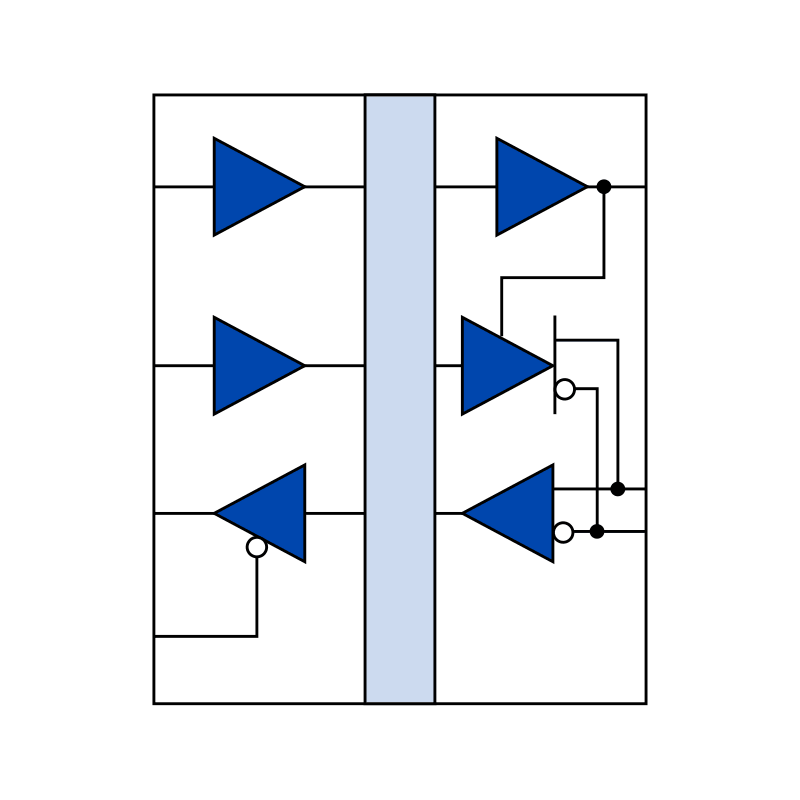

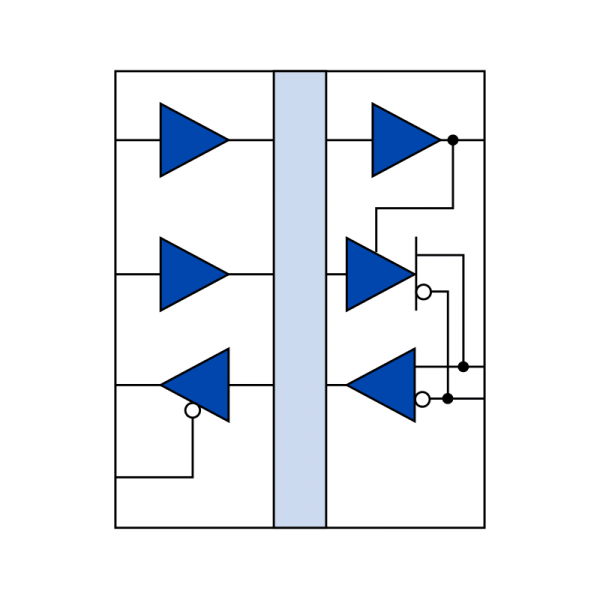

The IL3685 is an isolated 40 Mbps RS-485 transceiver with an extended temperature range. Over-temperature protection; fully PROFIBUS compliant; 15 kV bus ESD protection; 50 kV per microsecond transient immunity. 16-pin wide-body SOIC package with True 8™ mm creepage.

$6.07
1 - 9 $6.07
10 - 24 $5.47
25 - 99 $4.87
100 - 499 $4.25
500 + $3.73
698 in stock
