Isolators
Digital Input Isolated Transceivers (IL4xx / IL29xx / IL30xx / IL35xx / IL36xx / IL41050xx)

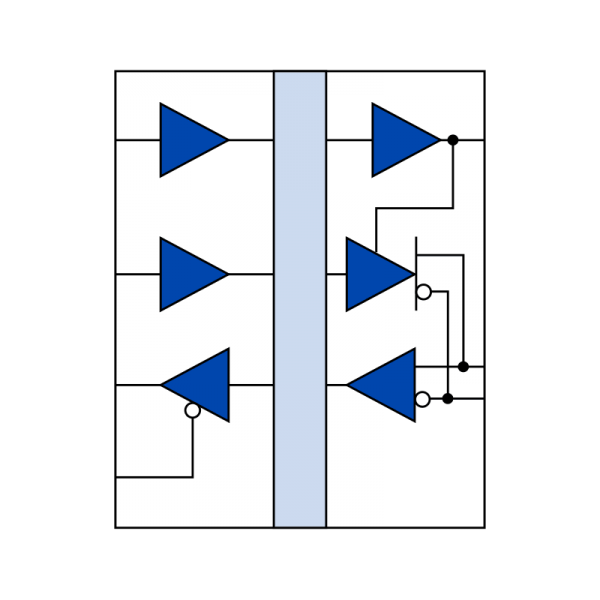

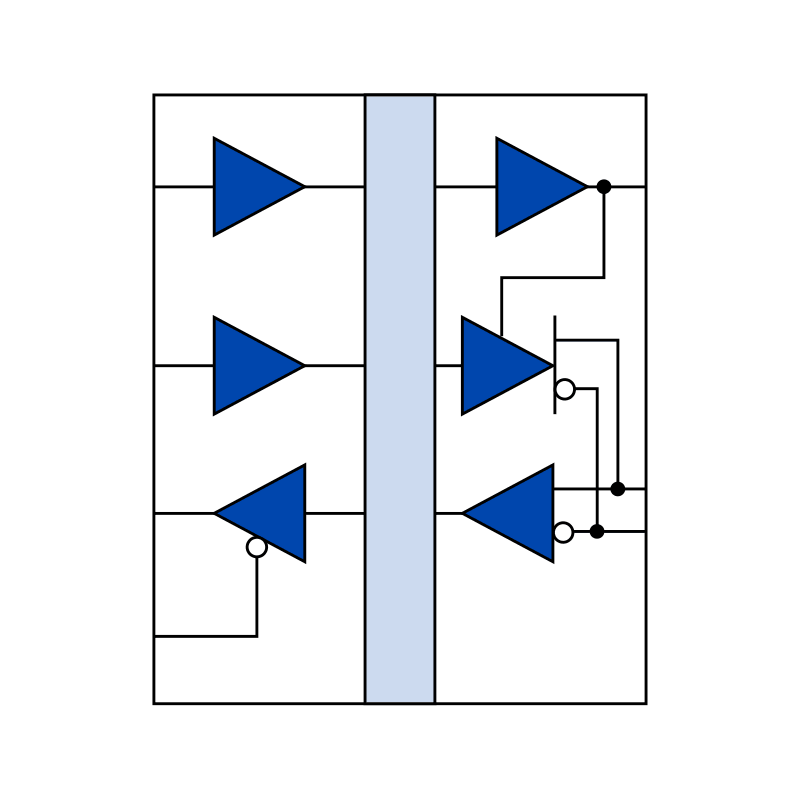

IL3685E: PROFIBUS-Compatible Isolated RS485 Transceiver, 2.5 kV, Wide SOIC
IL3685E: PROFIBUS-Compatible Isolated RS485 Transceiver, 2.5 kV, Wide SOIC
Part Number
IL3685E
Bus
RS-485
Duplex
Half
Bus Load (Unit Load)
1/5
Bus Voltage (V)
5
Speed (Mbps)
40
Max. Temperature (°C)
85
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
Approvals
PROFIBUS
Package
SOIC16WB
Data Sheet
(.pdf)
Electronic Data Automation
(External Link)
Description:
The IL3685 is an isolated 40 Mbps RS-485 transceiver that is fully PROFIBUS compliant. 3.3 V or 5 V input logic. 15 kV bus ESD protection; 50 kV per microsecond transient immunity. 16-pin wide-body SOIC package with True 8™ mm creepage.
$
5.52
1 - 9
$
5.52
10 - 24
$
5.15
25 - 99
$
4.51
100 - 499
$
3.91
500 +
$
3.73
Qty:
51164 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
