IL3522E: High-Speed Isolated RS422 Transceiver, 2.5 kV, Wide SOIC

  • Part Number
  • IL3522E
  • Bus Load (Unit Load)
  • Bus Voltage (V)
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

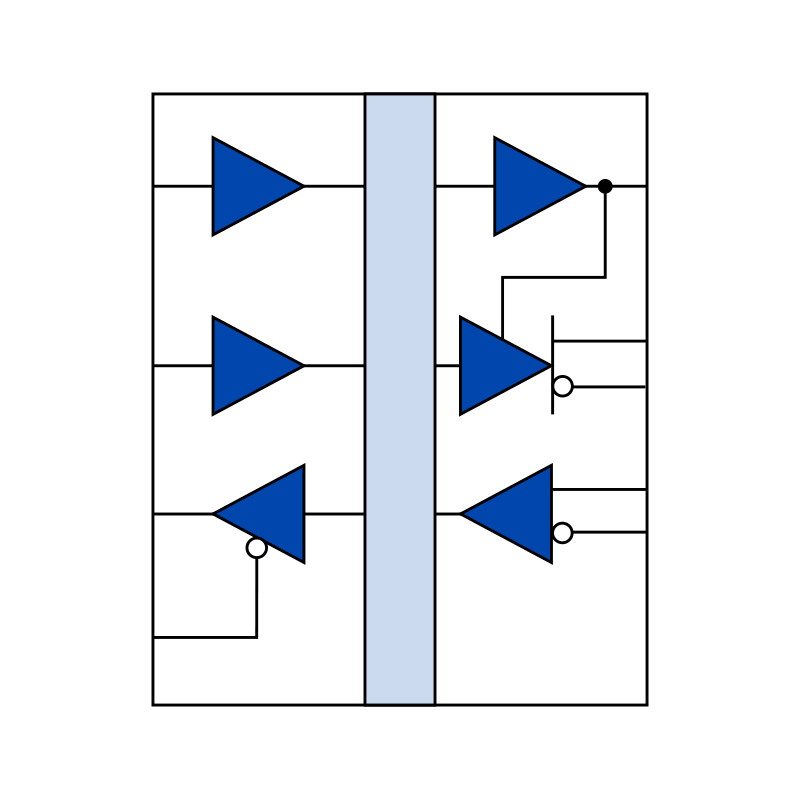

The IL3522 is a galvanically isolated, high-speed differential bus transceiver, designed for bidirectional data communications on balanced transmission lines. The IL3522 offers an exceptional 2.3 V differential output into a 54 ohm load, over the supply range of 4.5 V to 5.5 V. 15 kV bus ESD protection; 50 kV per microsecond transient immunity. 16-pin wide-body SOIC package with True 8™ mm creepage.

RoHS compliant.

Lead-free product information

$5.52
1 - 9 $5.52
10 - 24 $5.15
25 - 99 $4.51
100 - 499 $3.91
500 + $3.73
10808 in stock
