Isolators
Passive-Input Isolated Transceivers (IL31xx/IL32xx/IL34xx)

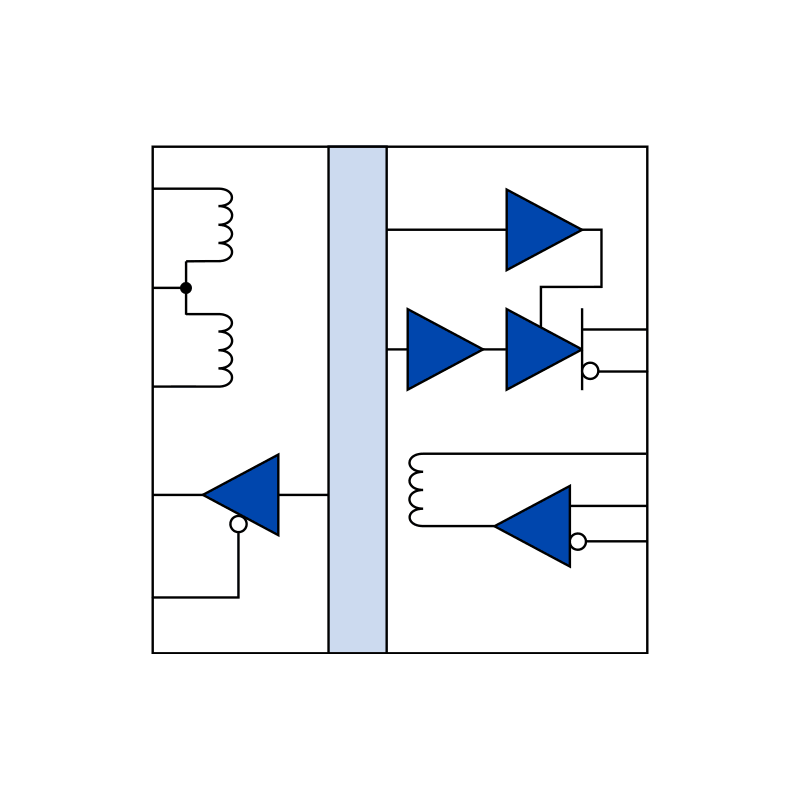

IL3122E: Low-Cost Passive-Input Isolated RS422 Xcvr, 2.5 kV, Wide SOIC
IL3122E: Low-Cost Passive-Input Isolated RS422 Xcvr, 2.5 kV, Wide SOIC
Part Number
IL3122E
Input
Passive (resistive)
Bus
RS-422/RS-485
Duplex
Full
Bus Load (Unit Load)
1
Bus Voltage (V)
5
Speed (Mbps)
5
Max. Temperature (°C)
85
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
Package
SOIC16WB
Data Sheet
(.pdf)
Electronic Data Automation
(External Link)
Description:
Features include 3.3 V or 5.0 V input logic, 15 kV bus ESD protection, 5 Mbps data rate, and 20 kV per microsecond transient immunity. 16-pin wide-body (0.3'') SOIC package.
RoHS compliant.
Lead-free product information
$
4.04
1 - 9
$
4.04
10 - 24
$
3.77
25 - 99
$
3.31
100 - 499
$
2.86
500 +
$
2.73
Qty:
9372 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
