IL3085-3E: Low-Cost Isolated RS485 Transceiver, 2.5 kV, Narrow SOIC

  • Part Number
  • IL3085-3E
  • Bus Load (Unit Load)
  • 1
  • Bus Voltage (V)
  • 5
  • Speed (Mbps)
  • 4
  • Max. Temperature (°C)
  • 85
  • Isolation Voltage (Vrms)
  • 2500
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
KiCAD Footprints
Ibis
(External Link)
×
×
Model for SOIC16NB

Description:

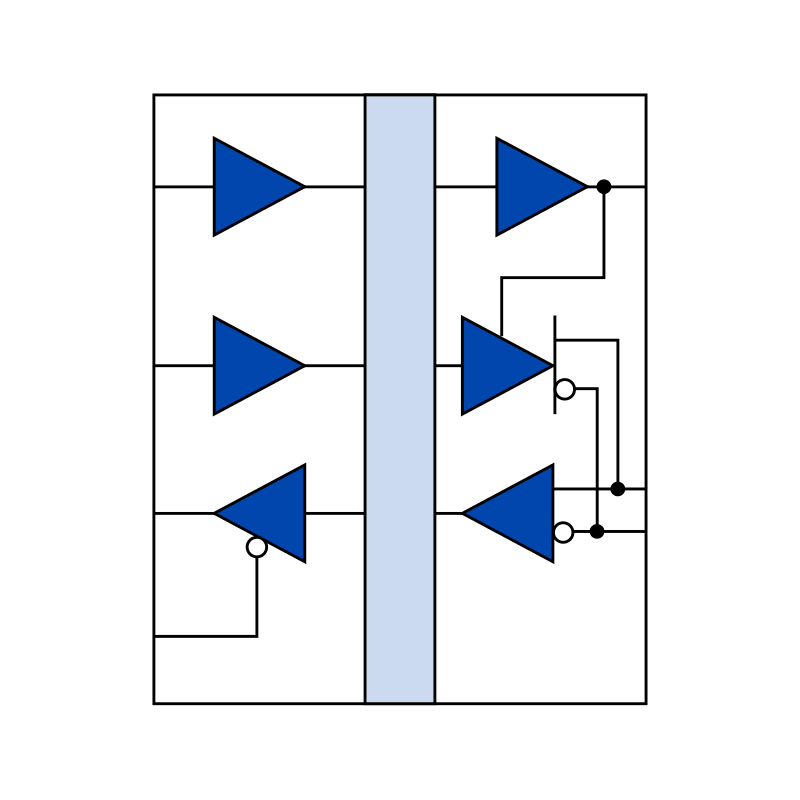

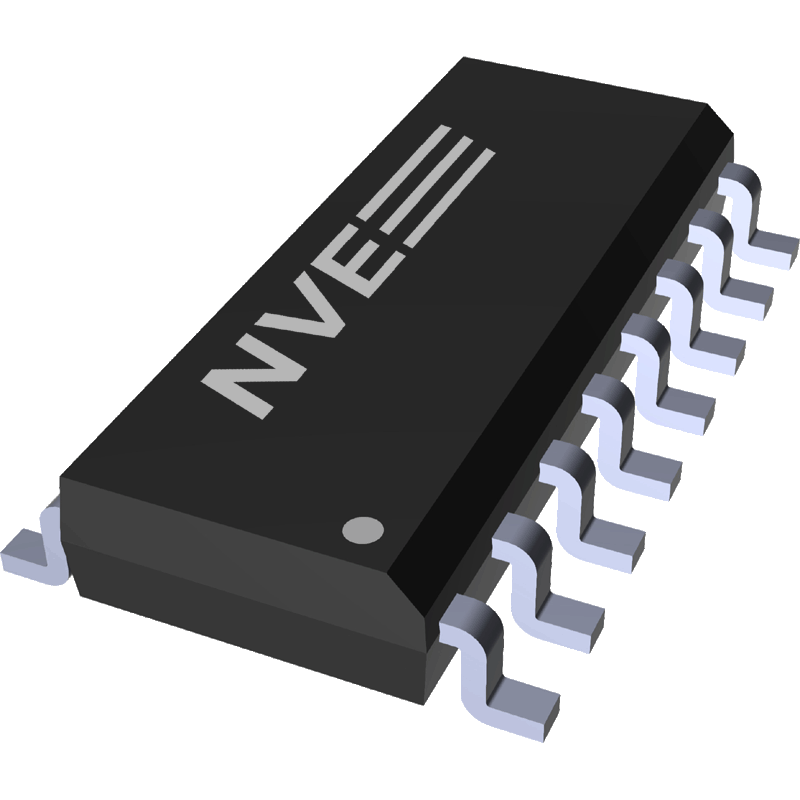

The IL3085-3 is a cost-effective isolated 4 Mbps RS-485 transceiver, compatible with 3.3 V or 5 V input logic. 7 kV bus ESD protection; 50 kV per microsecond transient immunity. 16-pin narrow-body (0.15’’-wide) SOIC package (Pb-free).

1 - 9 $4.44
10 - 24 $4.15
25 - 99 $3.63
100 - 499 $3.15
500 + $3.00
8751 in stock
$4.44
