IL3085-1-01: RS-485 QSOP Isolator Evaluation Board

  • Part Number
  • IL3085-1-01
  • Bus Load (Unit Load)
  • Bus Voltage (V)
  • Speed (Mbps)
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

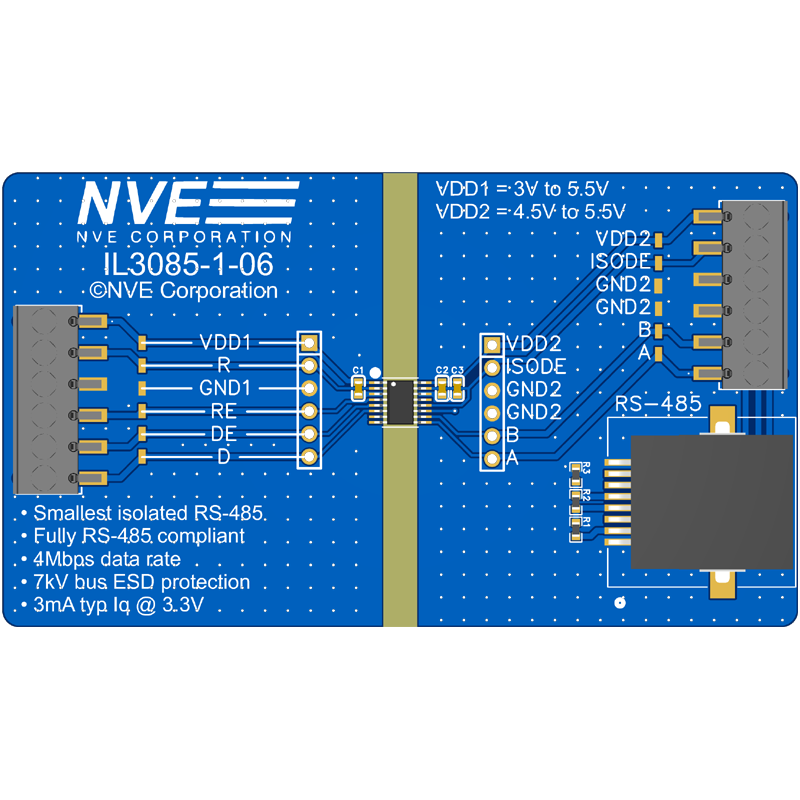

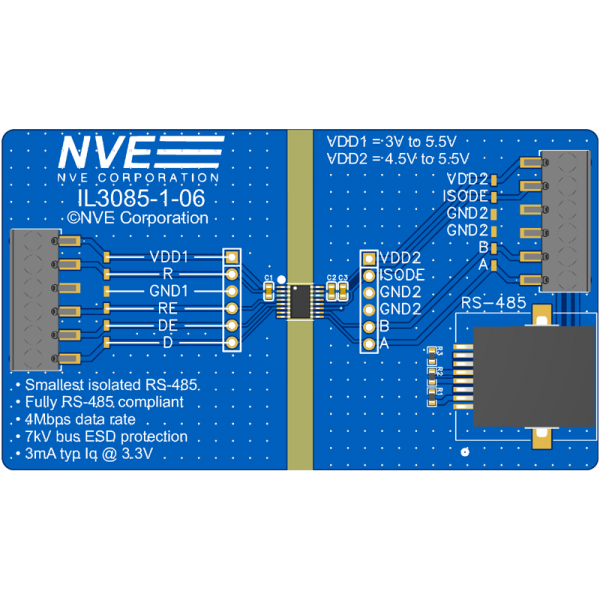

The RS-485 QSOP Isolated Transceiver Evaluation Board provides a complete isolated RS-485 node using the world isolated transceiver, the IL3085-1E. The board provides screw terminal and RJ45 connections, and demonstrates best layout practices.

Termination, pull-up, and pull-down resistors are easily changed to accommodate various fanouts and termination methods.

The transceiver delivers an exceptional 2.3 V differential output into a 54 Ohm load and data rates to 40 Mbps. The device is also compatible with 3.3 V input supplies, allowing interface to standard microcontrollers without additional level shifting.

Isolating RS-485 nodes reduces noise, eliminates ground loops, and improves safety.
$74.95
50 in stock
