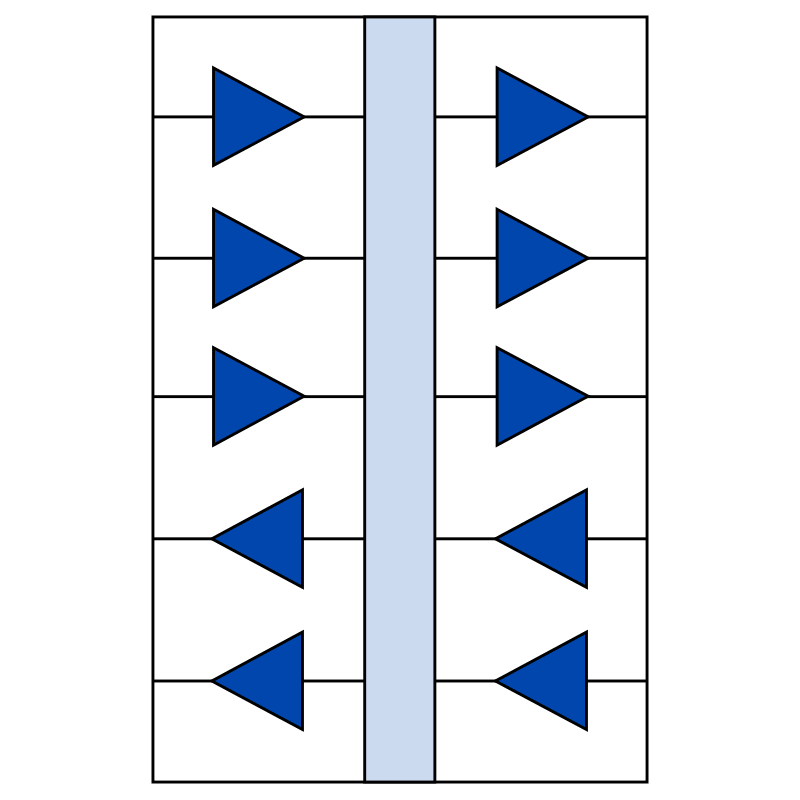

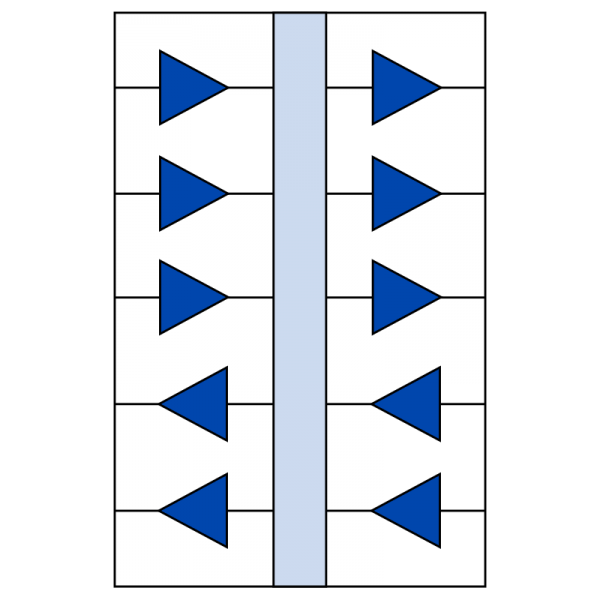

IL262VE: 6 kV, 5-Channel (3 transmit, 2 receive) Isolator, Wide SOIC

  • Part Number
  • IL262VE
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)

Description:

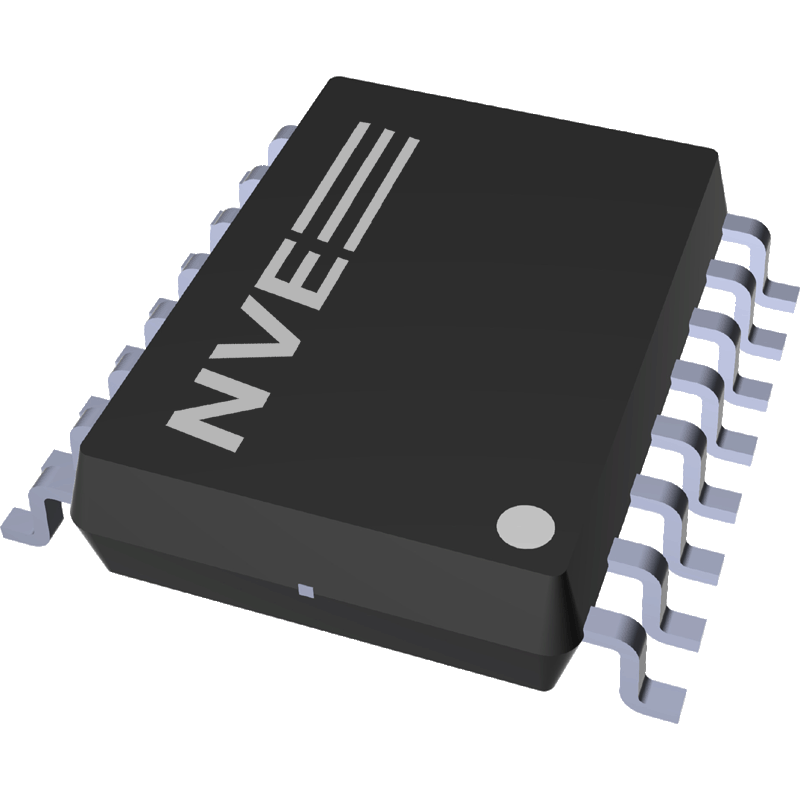

The IL262VE is a 6 kVrms isolation, 3.3/5V, 5 channel (3 transmit; 2 receive) isolated, 110 Mbps, CMOS-compatible logic buffers with 10 ns propagation delay, 3 ns pulse width distortion, and 50 kV/microsecond transient immunity. 16-pin RoHS wide-body SOIC package with True 8™ mm creepage.
$9.40
1 - 9 $9.40
10 - 24 $8.78
25 - 99 $7.69
100 - 499 $6.66
500 + $6.36
99999 in stock
Notify me when in stock
