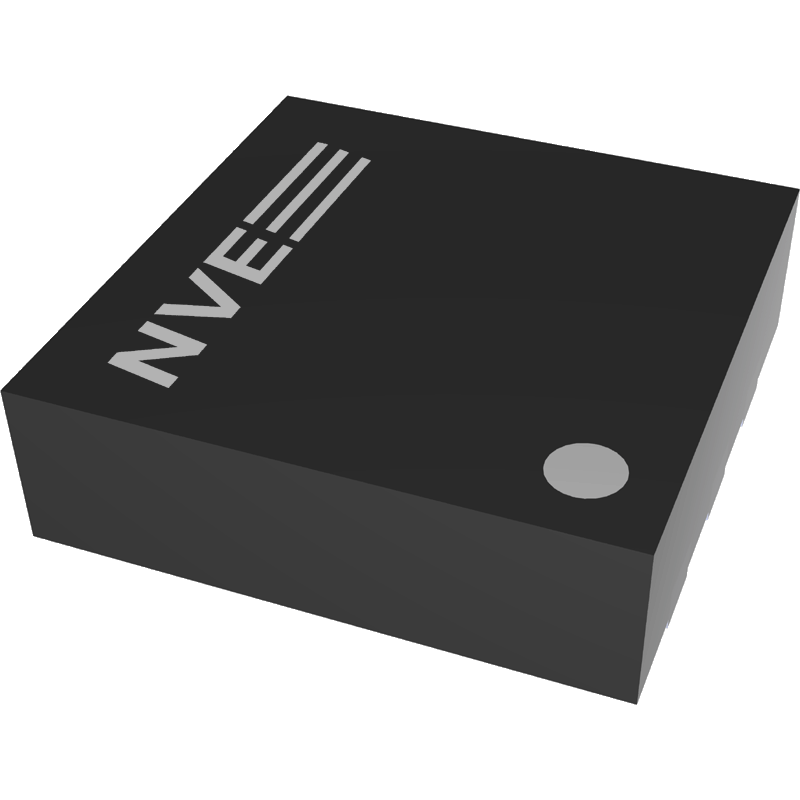

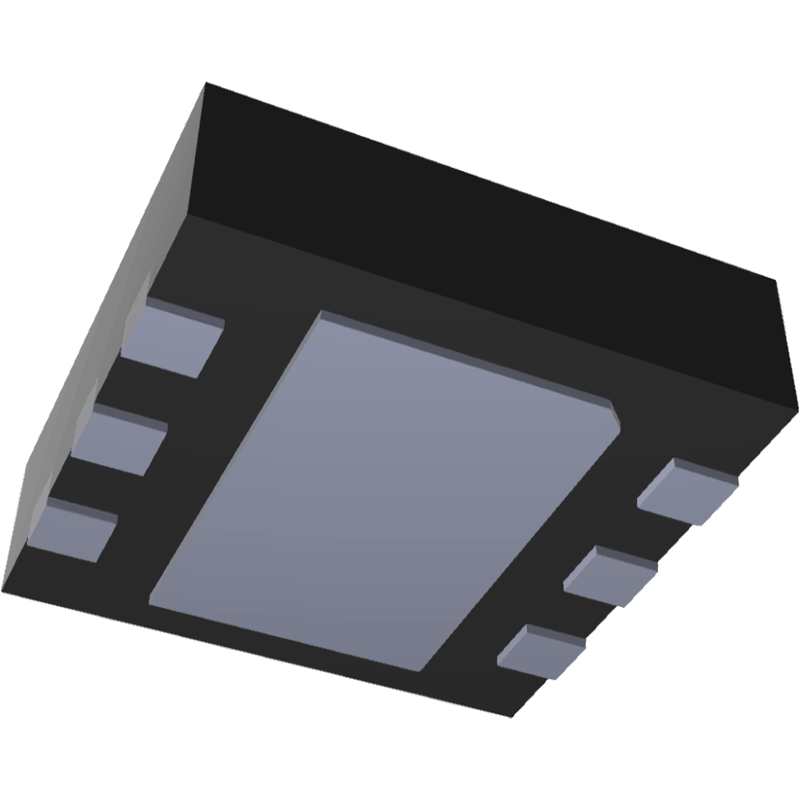

ASR012-10E: Smart I²C TMR Angle Sensor, DFN6

  • Part Number
  • ASR012-10E
  • Magnetic Field Operating Range (mT)
  • Resolution (bits)
  • Supply Current @ 3.3 V (µA)
  • Max. Temperature (°C)

Description:

ASR012 TMR Smart Angle Sensors provide a precise digital indication of magnetic rotation operating over a wide range of speeds.

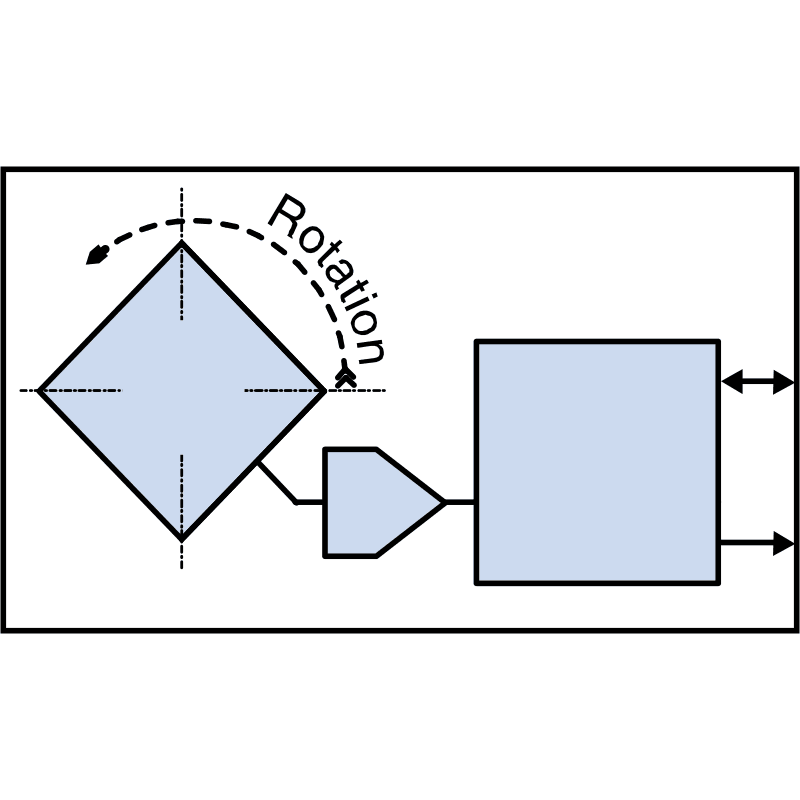

The sensor combines a precise, low-power Tunneling Magnetoresistance (TMR) sensor with sophisticated digital signal processing.

The ASR012 provides an extraordinary combination of speed and precision, with a 12.5 kSps sample rate and ±0.2° repeatability.

The sensor is factory calibrated, with coefficients stored in internal memory.

An I²C interface provides angle data and allows setting device parameters. A PWM output is also provided

The ASR012 is designed for harsh industrial or automotive environments with ESD protection and full −40°C to +125°C operating temperature range.
$8.98
1 - 9 $8.98
10 - 99 $6.78
100 - 499 $4.87
500 + $3.43
99999 in stock
