AKT001-14E: 1.5 T Sat. High-Field Omnidirectional TMR Magnetometer, DFN4

  • Part Number
  • AKT001-14E
  • Min. Detectable Field (µT)
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

The AKT001-14E is an ultrahigh-field magnetometer sensor that provides precise sensing of magnetic fields up to 1.5 T (15 kOe). NVE’s unique omnidirectional Tunneling Magnetoresistive (Omni-TMR) technology provides unmatched field range, low power, and small size. The AKT001 sensor is sensitive to magnetic fields of any direction in or out of the IC plane, so multiple sensors are not needed for orthogonal or unknown directions of applied fields.

Features:

  • 1.5 T saturation
  • 0.05 to 1 T linear range
  • High resistance for battery powered applications
  • Unique omnidirectional response

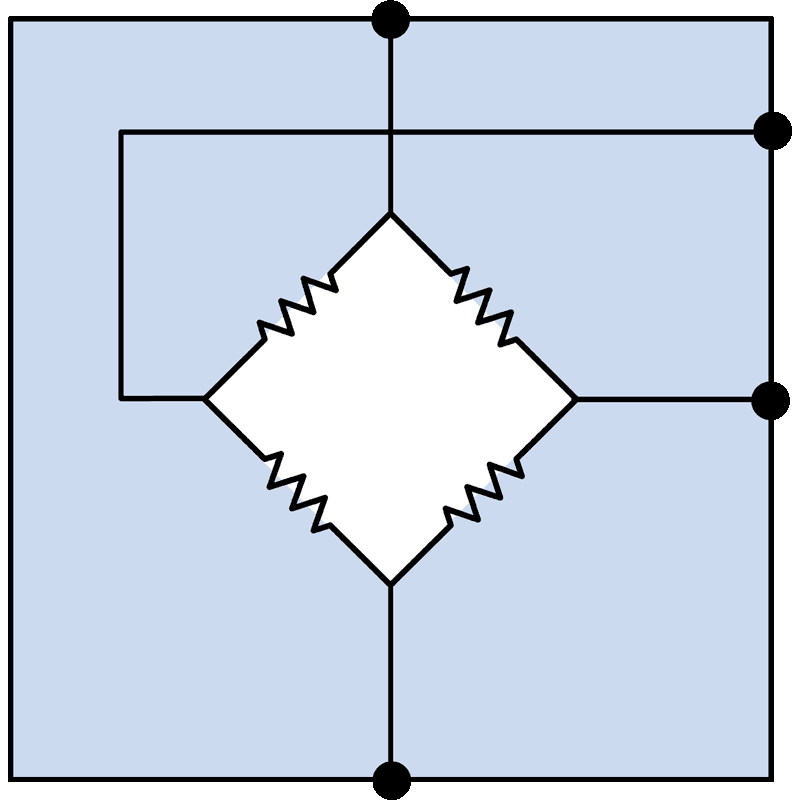

  • Ratiometric Wheatstone bridge outputs
  • Wide supply voltage range (<1 V to 5.5 V)

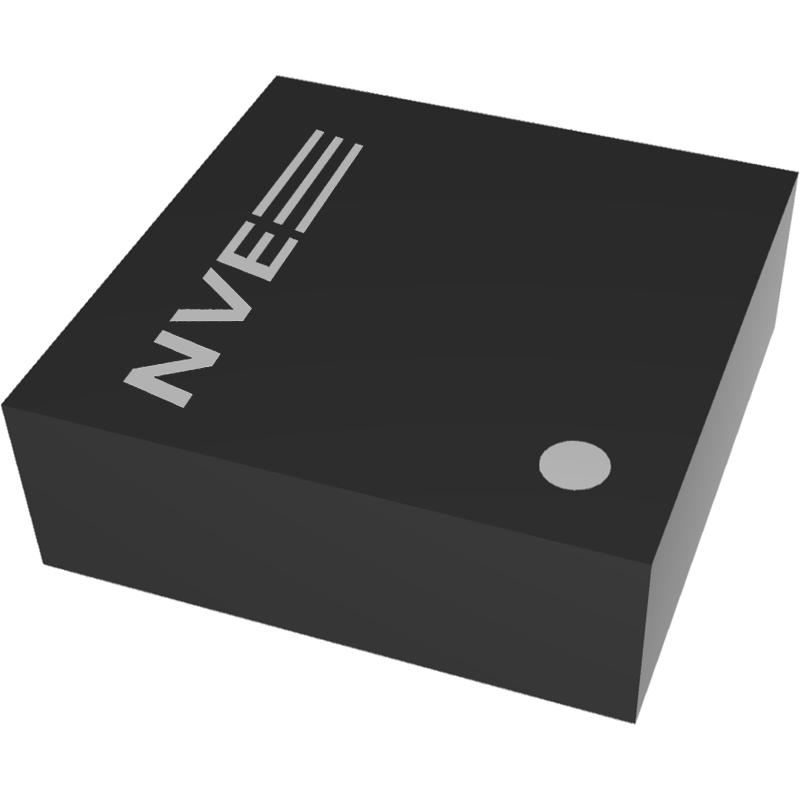

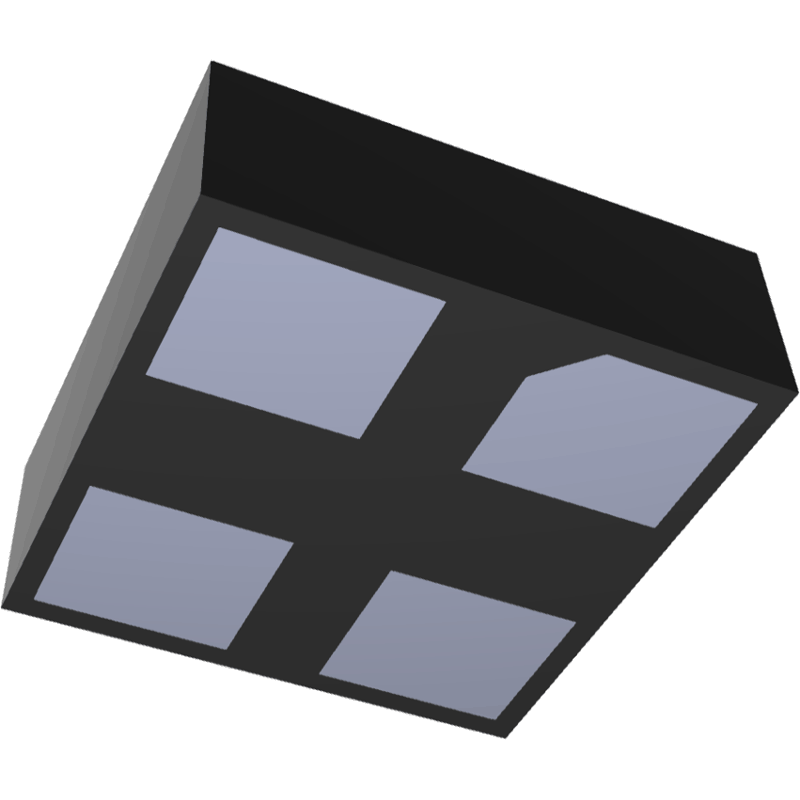

  • Ultraminiature 1.1 x 1.1 mm package

Note: Parts are sold in increments of 100 for quantities of 100 or more.

$17.05
1 - 9 $17.05
10 - 99 $15.79
100 - 499 $14.03
500 + $14.03
274 in stock
