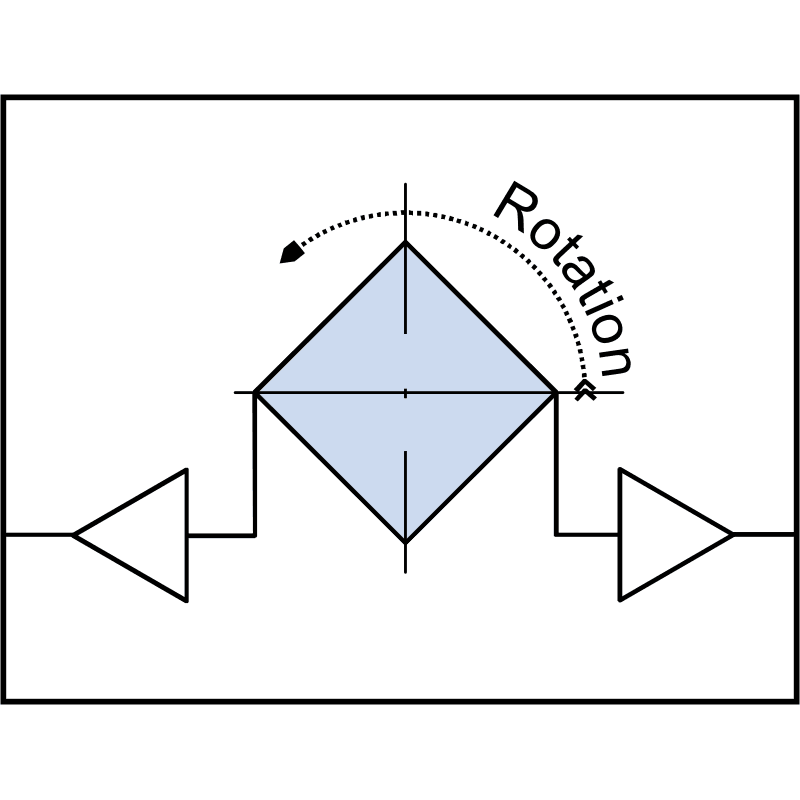

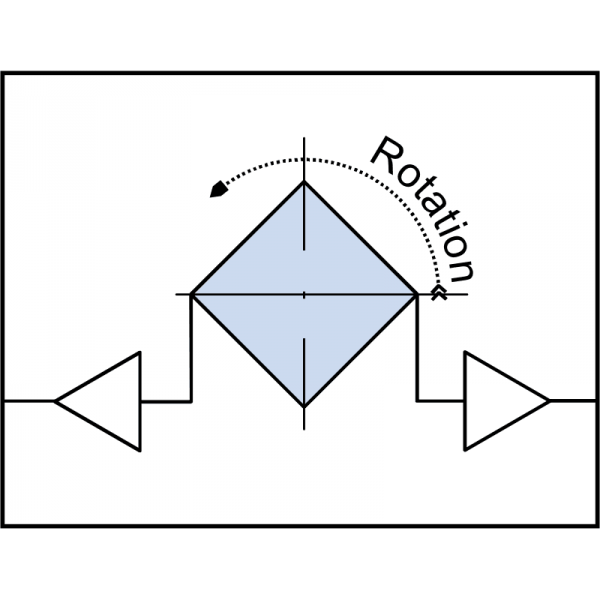

ADT002-10E Rotation Sensors provide two binary digital outputs to accurately indicate the absolute rotational quadrant of a rotating magnet. The two outputs are 90 degrees out of phase to also provide directional information.
The ADT002 is lower hysteresis than the ADT005 to provide accurate, absolute rotational quadrant information.
The sensors use NVE’s unique Tunneling Magnetoresistance (TMR) technology to minimize power consumption and size.
The sensors are typically used with radially-magnetized disk magnets or split pole magnet.
An Evaluation Kit is available with an angle sensor, magnet, circuit board with indicator LEDs, and a plastic magnet locating fixture.
Note: Please purchase in increments of 100 when purchasing quantities of 100 or more.
