AG932-07E: ADT002 Rotation Sensor Evaluation Kit

  • Part Number
  • AG932-07E
  • Magnetic Field Operating Range (mT)
  • 3 to 20
  • Angular Resolution (°)
  • 90
  • Supply Current @ 3.3 V (µA)
  • 2.7
  • Fault Detection
  • No
  • Max. Temperature (°C)
  • 125
  • Batteries Included?
  • Yes

Description:

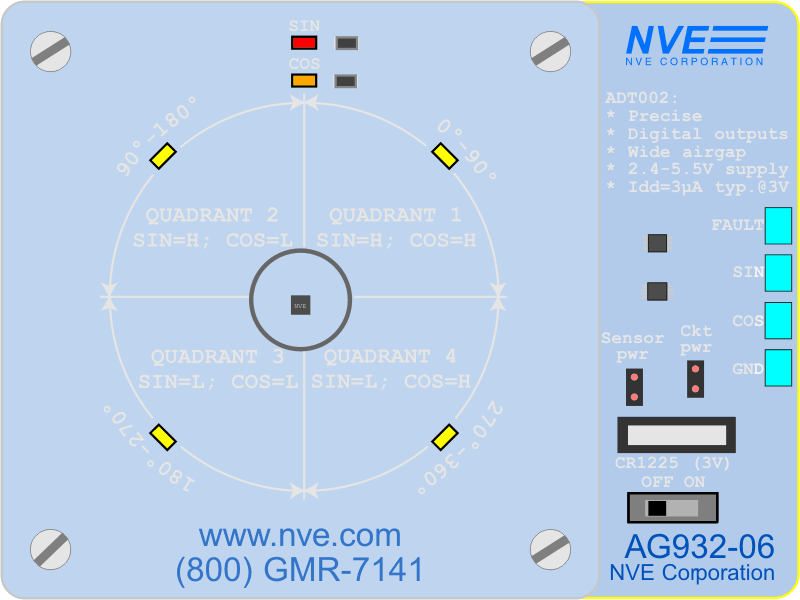

The kit includes a circuit board with an ADT002 low hysteresis, ultralow-power rotation sensor, a split-pole magnet that can be turned, and simple circuitry to drive LEDs from the sensor outputs. Two LEDs follow the sensor outputs; four others indicate the rotational quadrant.

A 3-volt coin cell (included) powers the board.

9 in stock
$90.00
