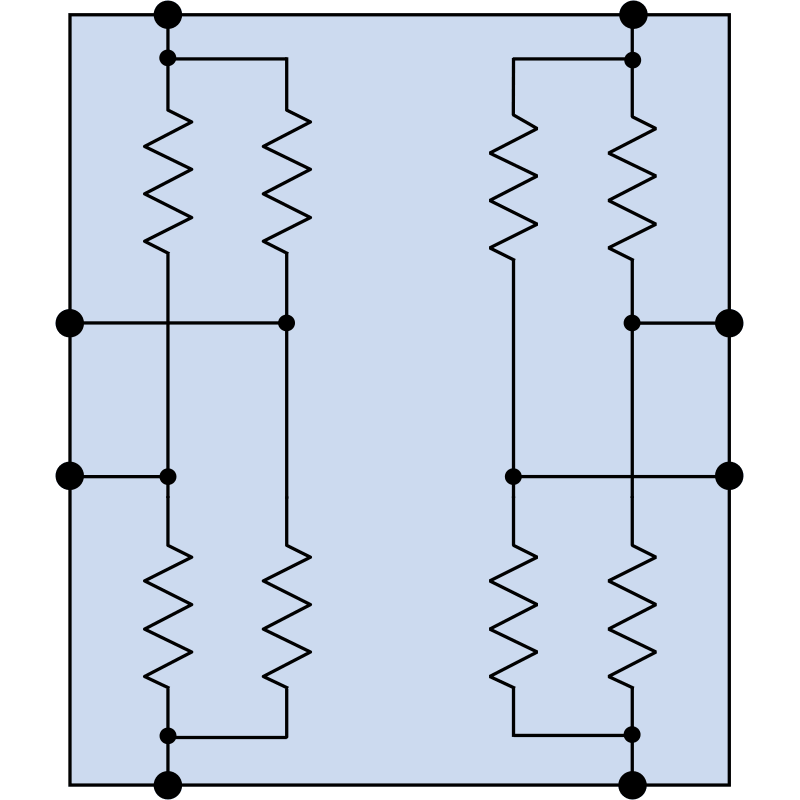

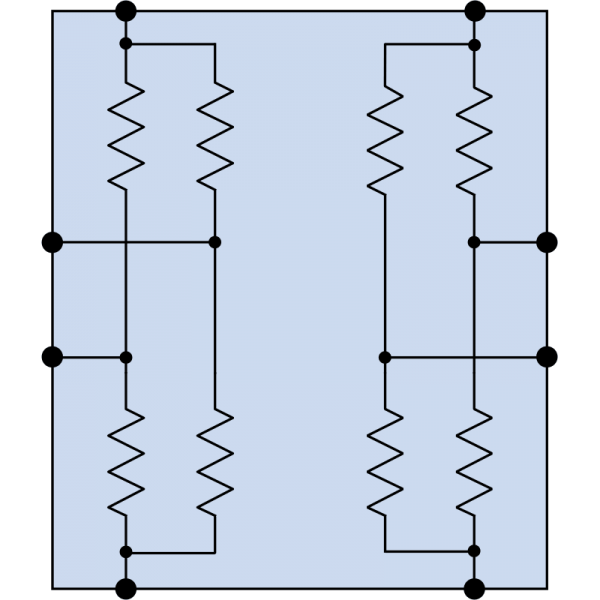

ABT600-00E gear-tooth sensors are typically used with back-biasing magnets to encode the position of a ferrous gear.
The ABT600-00E is optimized for 2.4 mm pitch gears, and can be used for pitches from 1.6 to 4.8 mm. The sensors have two channels to detect direction.
Key features include:
• 0.001° resolution
• Large analog peak-to-peak signals
• Operating frequency to 350 kHz
• 150 °C operating temperature |
