Key specifications are as follows:

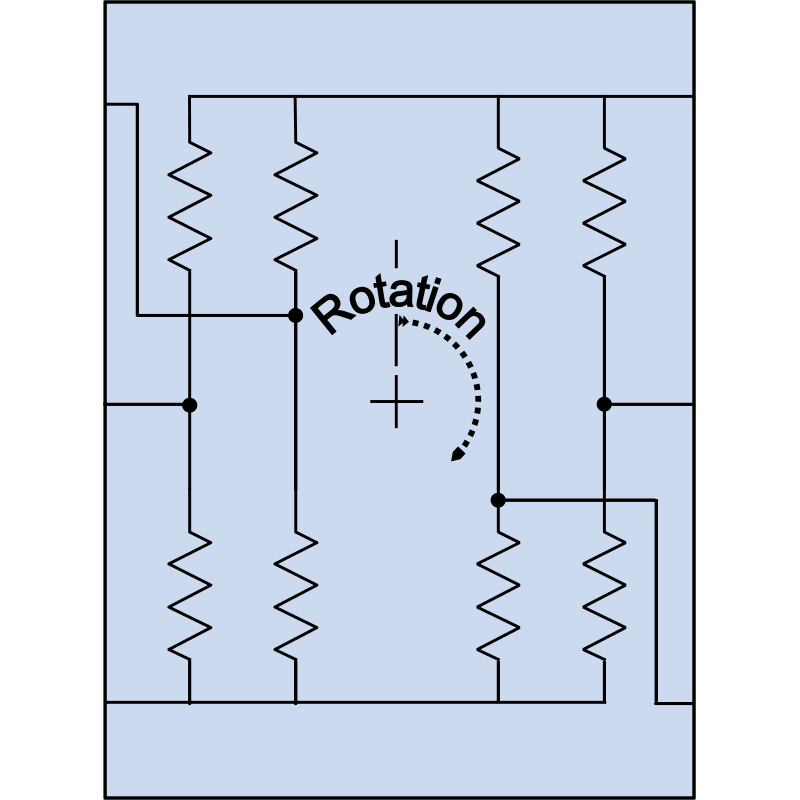

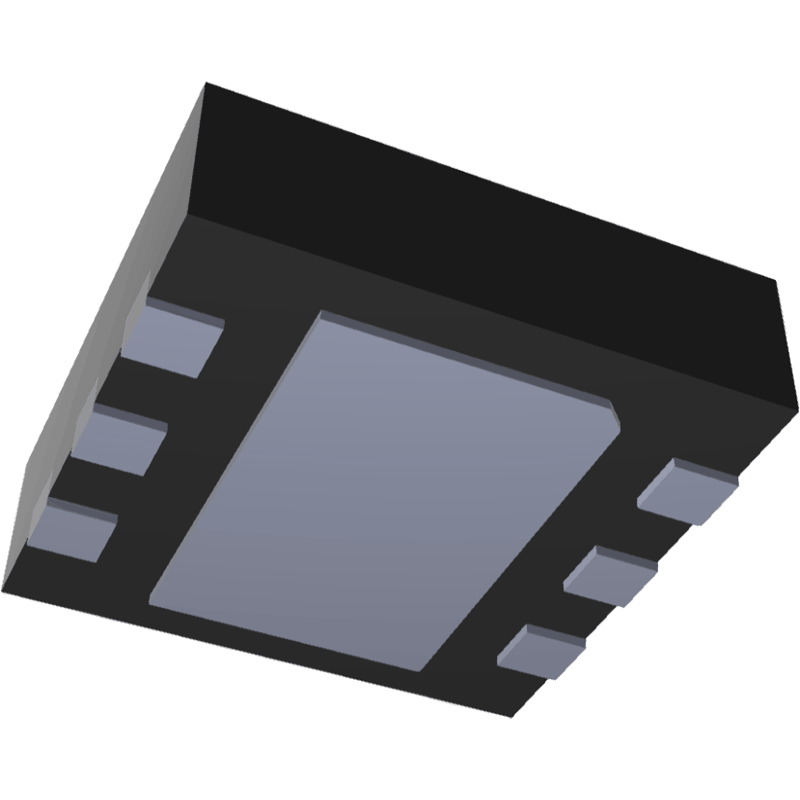

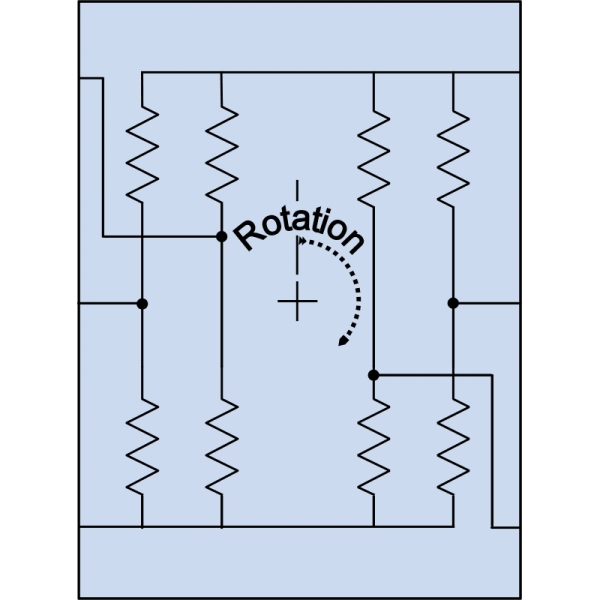

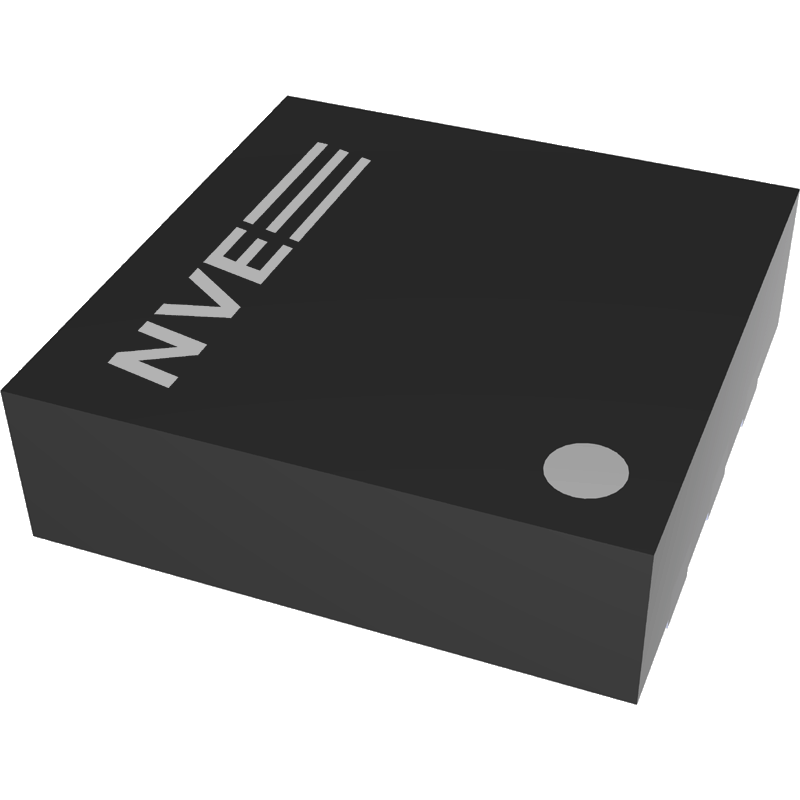

Full-Bridge TMR Angle Sensor
Typ. p-p Signal
The angle sensors are typically used with a split pole magnets such as NVE part no. 12249 or 12426.
An Evaluation Kit is available with an angle sensor, circuit board, unity-gain buffer amplifier, split-pole magnet, and a plastic magnet locating fixture.
Note: Please purchase in increments of 100 when purchasing quantities of 100 or more.
The kit includes a circuit board with an AAT101-10E Full-Bridge Angle Sensor, which provides two differential analog outputs, 90 degrees out of phase. The circuit
A 0.8 x 0.4 inch (21 x 10 mm) breakout board with the AAT101-10E Full-Bridge Tunneling Magnetoresistance (TMR) analog angle sensor. The board has
Contact us for higher volume pricing.
