AG934-07E: AAT101 Full-Bridge Angle Sensor Evaluation Kit

  • Part Number
  • AG934-07E
  • Magnetic Field Operating Range (mT)
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

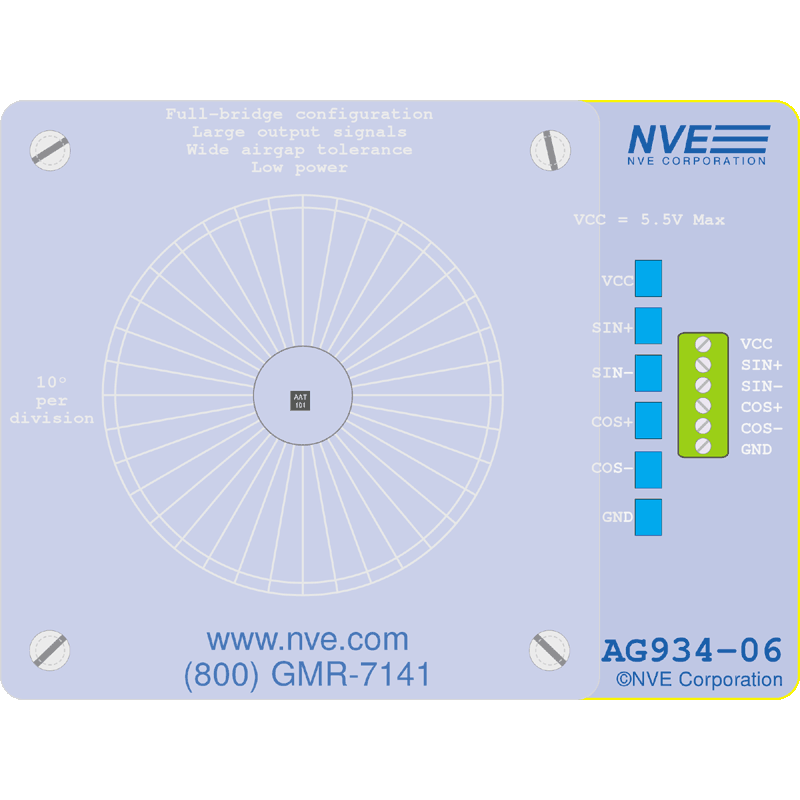

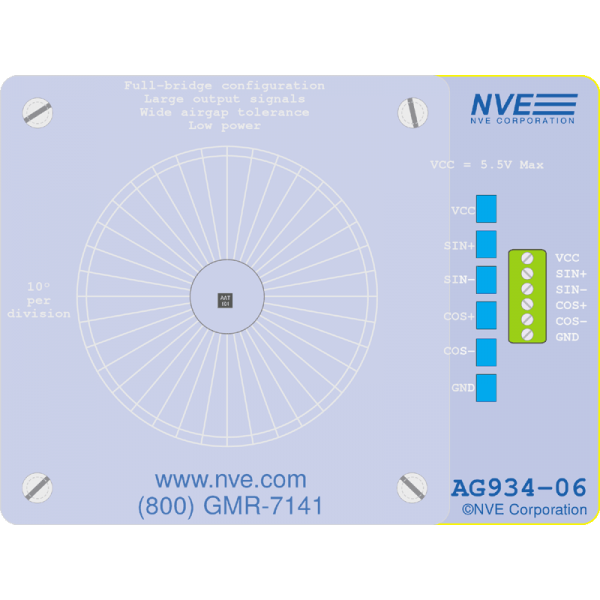

The kit includes a circuit board with an AAT101-10E Full-Bridge Angle Sensor, which provides two differential analog outputs, 90 degrees out of phase. The circuit board can be powered with a 0 V to 5.5 V power supply. An angular reticle on the circuit board aids in characterizing output versus angle.

The kit also includes a split-pole magnet and a plastic magnet locating fixture.

The AAT101-10E Angle Sensor typical output amplitude is 400 mV/V peak-to-peak for each output.

3 in stock
$75.00
