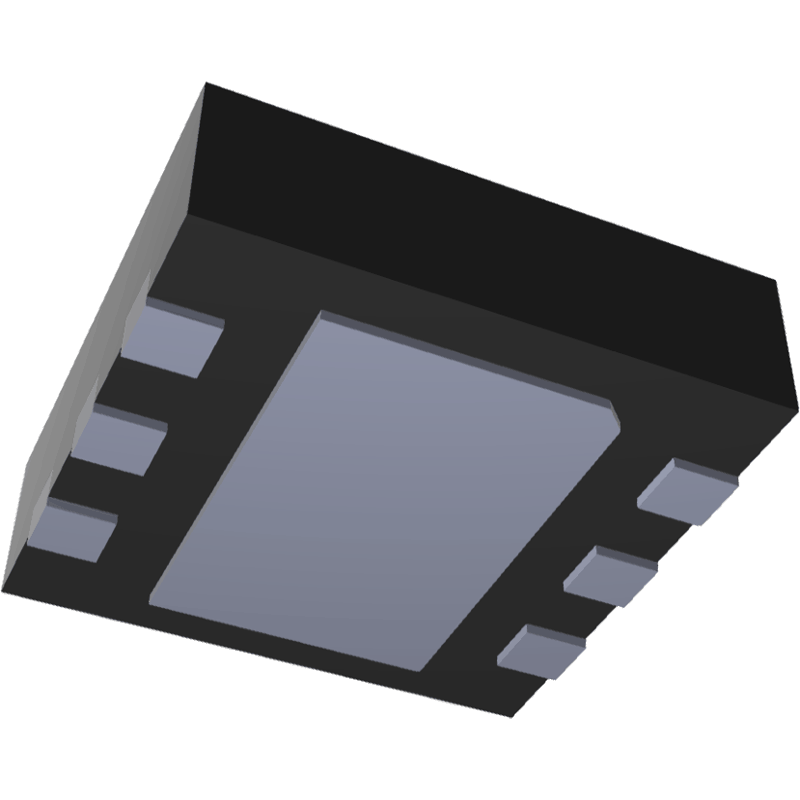

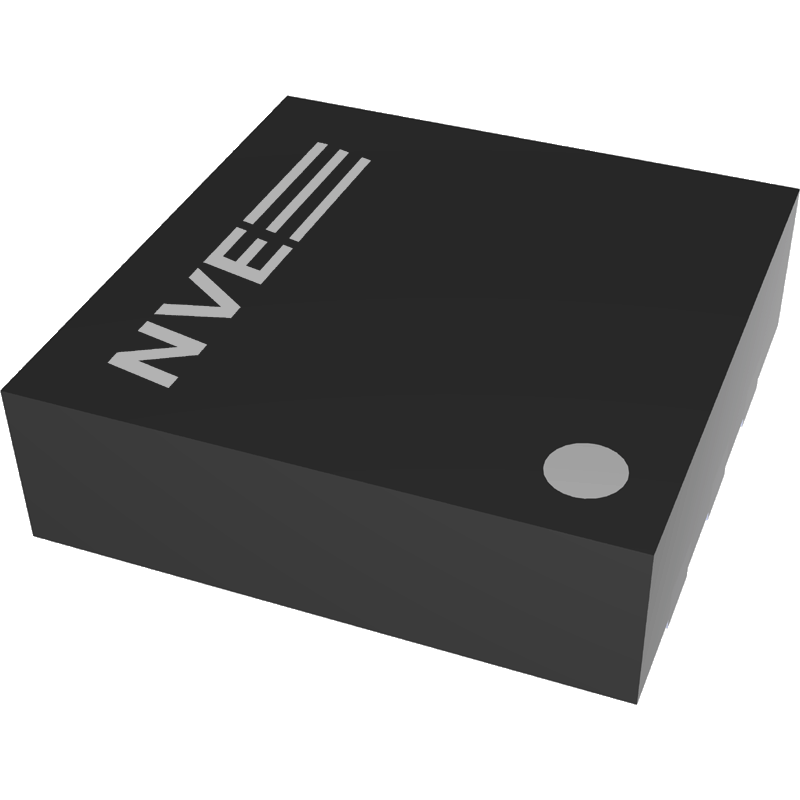

AAT006-10E: Low-Field Angle Sensor, TDFN6

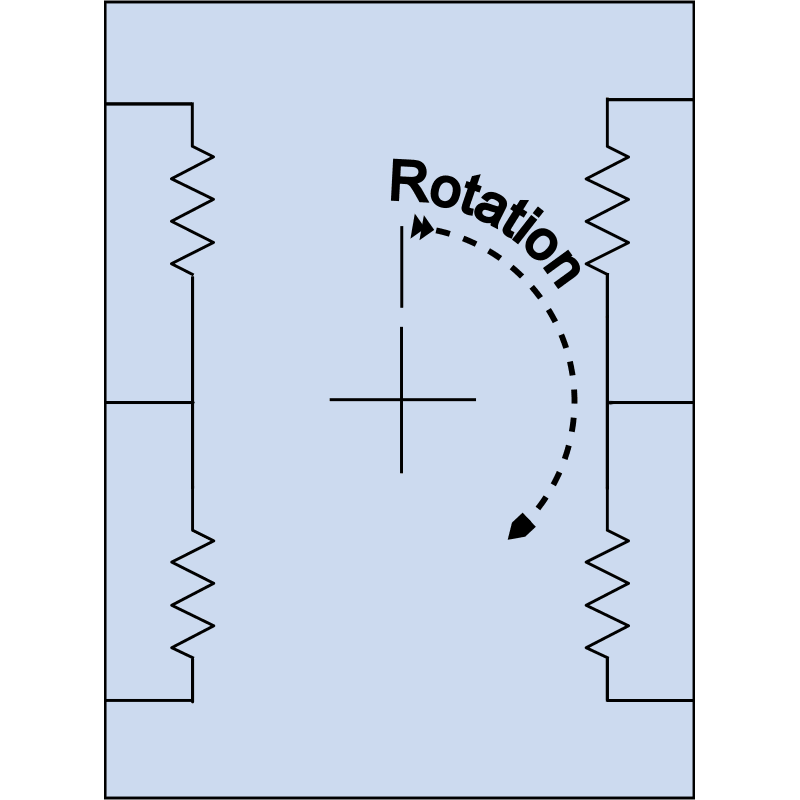

AAT006-10E Angle Sensors use Tunneling Magnetoresistance (TMR) technology for operation at magnetic fields as low as 15 Oe, allowing an extremely wide airgap tolerance. The device has a large output without amplification, and high device resistance for low power. Sine and cosine outputs provide full quadrature.

Key specifications are as follows:

TMR Angle Sensor
Typ. p-p Signal	Min. Applied Field (Oe)	Max. Angular Error (const. field)	Max. Op. Temp.	Typ. Device Resistance	Package
200 mV/V	15 Oe	0.5 degrees	125°C	1.25 MΩ	TDFN6

The angle sensors are typically used with a split pole magnets such as NVE part no. 12249 or 12426.
