The AAL024-10E high-performance magnetometer has high sensitivity, high linearity, low-hysteresis, and cross-axis sensitivity, making it ideal for noncontact current-sensing.
Features:
- 3.6 mv/V/Oe typical sensitivity for large output signals and low noise
- Wide linear range: 0.15 – 1.05 mT; 1.5 mT saturation

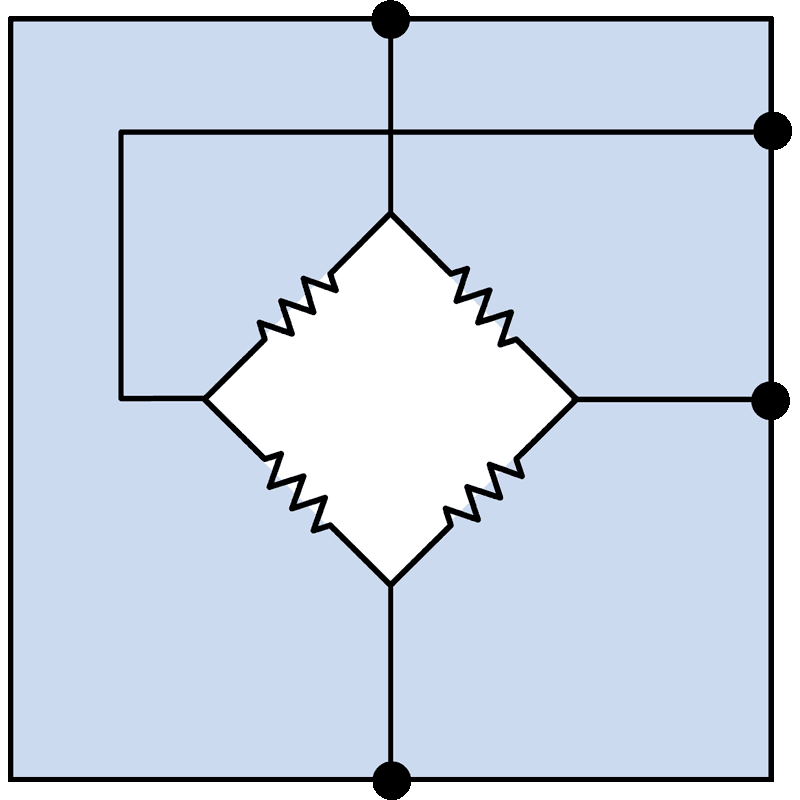

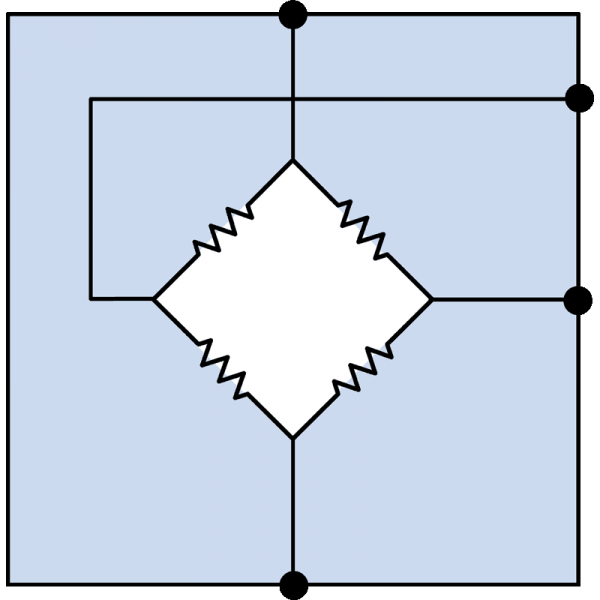

- 2.2 kΩ bridge resistance/1.1 kΩ output impedance for easy interface
- Low offset: 4 mV/V max.
- Low hysteresis: 2% max. for excellent repeatability
- Wide bandwidth: 100 kHz
- 63 V minimum inherent isolation (pad to electrical connections)

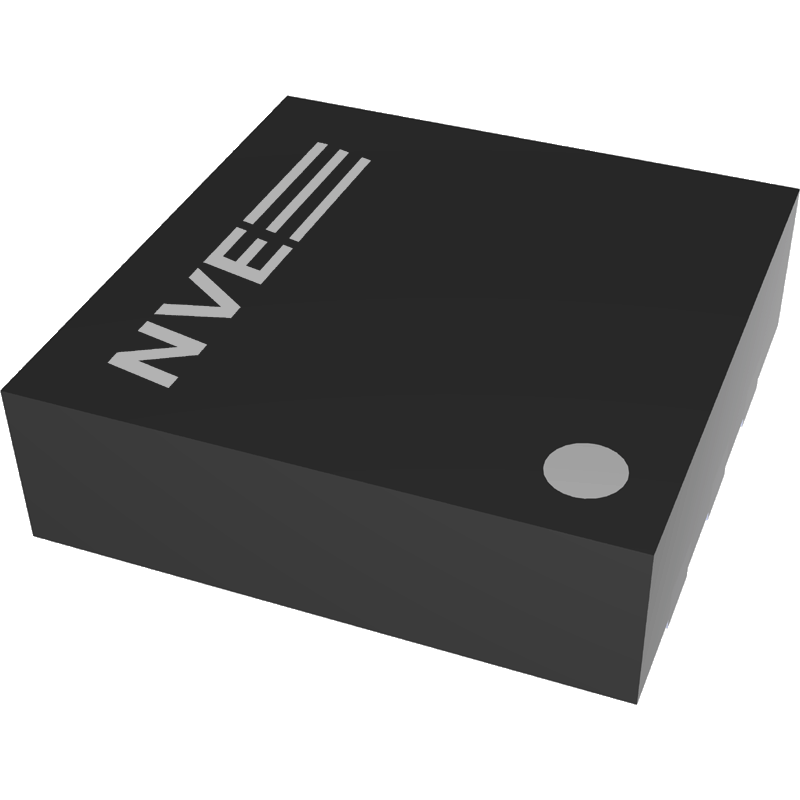

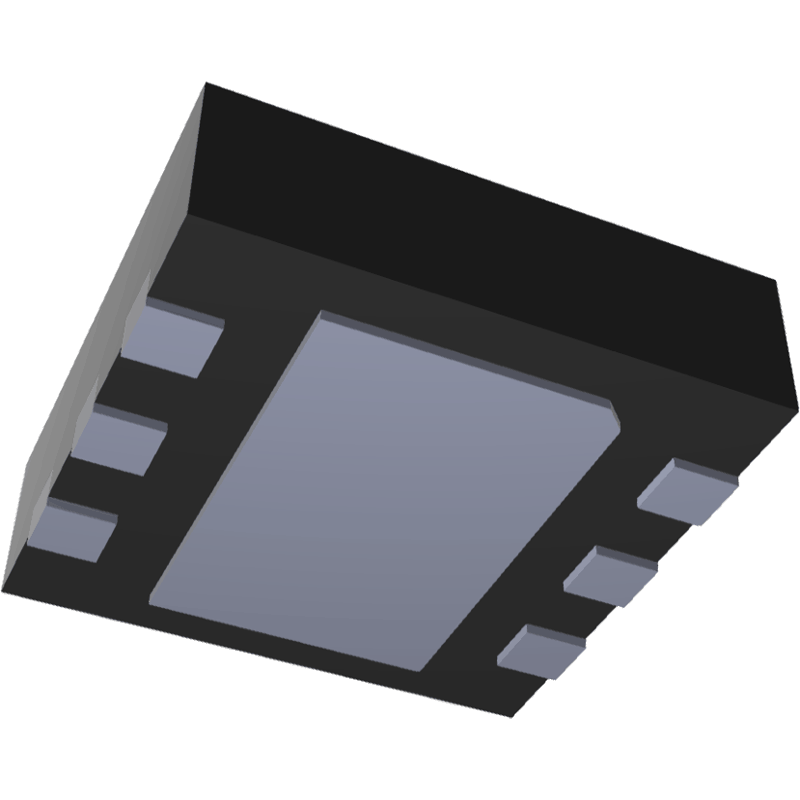

- Ultraminiature 2.5 mm x 2.5 mm DFN6 package
Applications:
- Current sensing
- Low-field sensing for magnetic media
- Earth’s magnetic field detection
Note: Parts are sold in increments of 100 for quantities of 100 or more.
This part is RoHS compliant.
