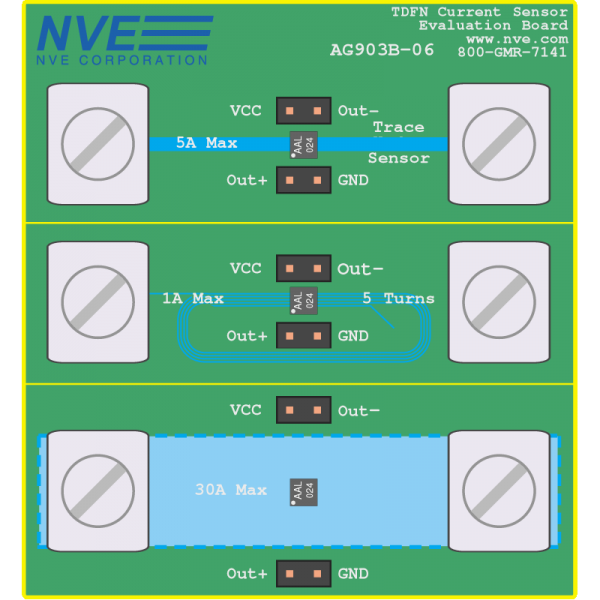

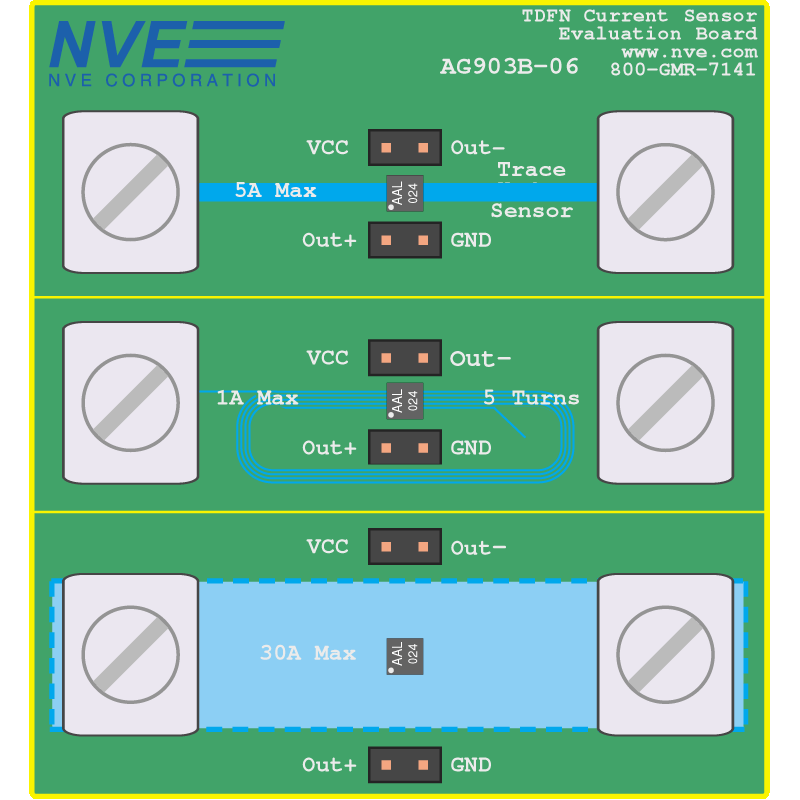

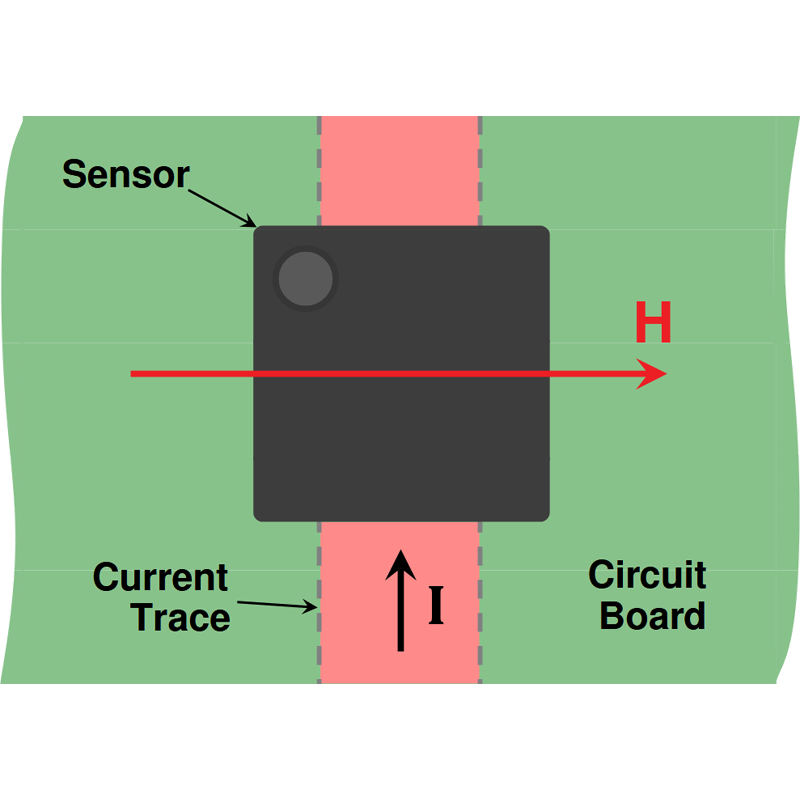

The evaluation board consists of three separable modules using AAL024-10E DFN6 current sensors over PCB traces. The three modules are optimized to measure currents of 0-0.75A, 0-5A, and 0-50A.
The complete board measures 1.565" x 2.915" (40 mm by 74 mm) and has headers for the sensor and low-current connections, and screw terminals for the 50A connections.
