SHIELD02: Angle/Rotation Sensor Eval Arduino Shield
Angle Sensor Arduino Shield
SHIELD02: Angle/Rotation Sensor Eval Arduino Shield
Part Number
SHIELD02
Board Size (mm)
69 x 53
Connections
Arduino
IC Included?
No
Magnet Included?
Yes
Data Sheet
(.pdf)
Software
GitHub
(External Link)
Description:

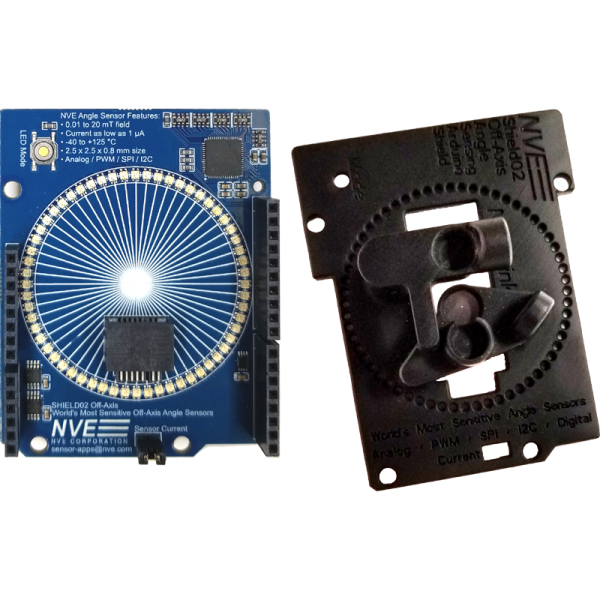

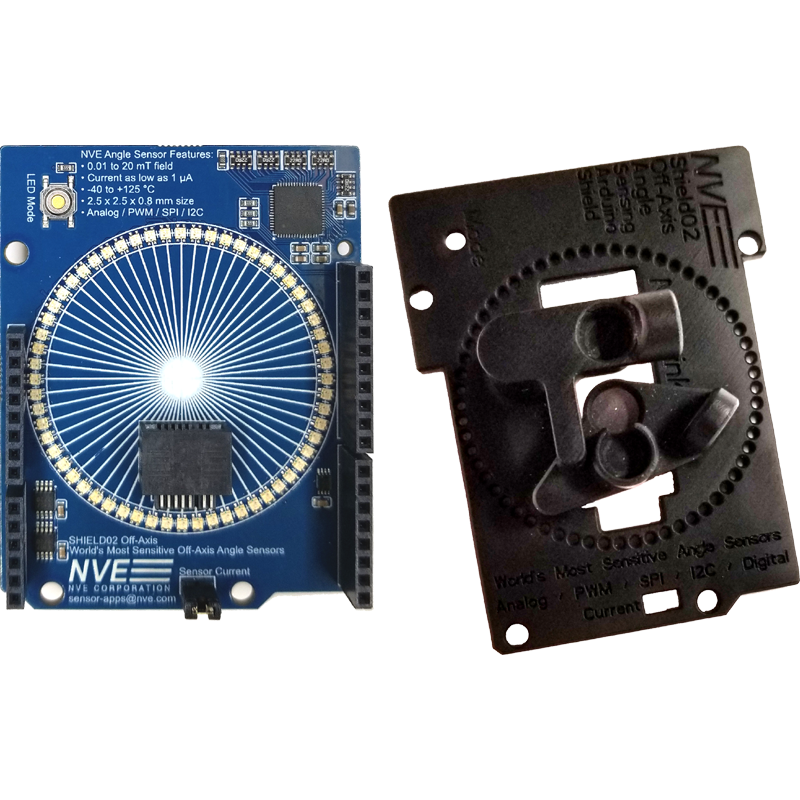

Arduino Shield02 demonstrates ALT521 or AAT-, ADT- and ASR-Series angle/rotation sensors. The Shield connects via an edge connector to a sensor breakout board. Sixty LEDs indicate the angle, and colors indicate direction of rotation. Arduino software can be downloaded by clicking on the "Software" button above, or via our
GitHub repository
.
A diametrically-magnetized neodymium magnet is included, and a magnet fixture allows the magnet to be positioned on-axis or in one of three off-axis positions.
Arduino not included; breakout boards sold separately. The Shield is compatible with the following breakout boards:
ALT521-10E-EVB01:
Ultrahigh sensitivity analog angle sensor
AAT003-10E-EVB01:
Low output impedance analog angle sensor
AAT006-10E-EVB01:
High-sensitivity analog angle sensor
ADT002-10E-EVB01:
Digital output quadrature rotation sensor
ASR002-10E-EVB01:
SPI interface factory-calibrated angle sensor
ASR012-10E-EVB01:
I²C interface factory-calibrated angle sensor
ASR022-10E-EVB01:
ABZ Encoder Sensor
Qty:
15 in stock
$
59.95
Add to Cart
In your cart
Add to Cart
Notify me when in stock
