Isolators
Ultrahigh CMTI Isolators/gate drivers (IL600CMTI-Series)

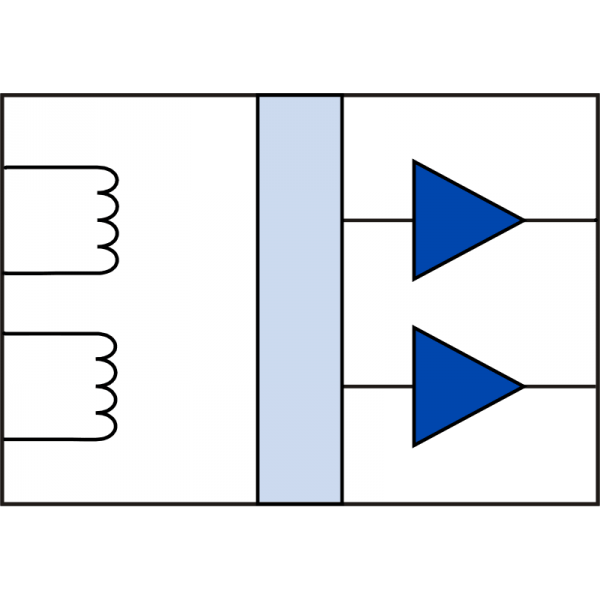

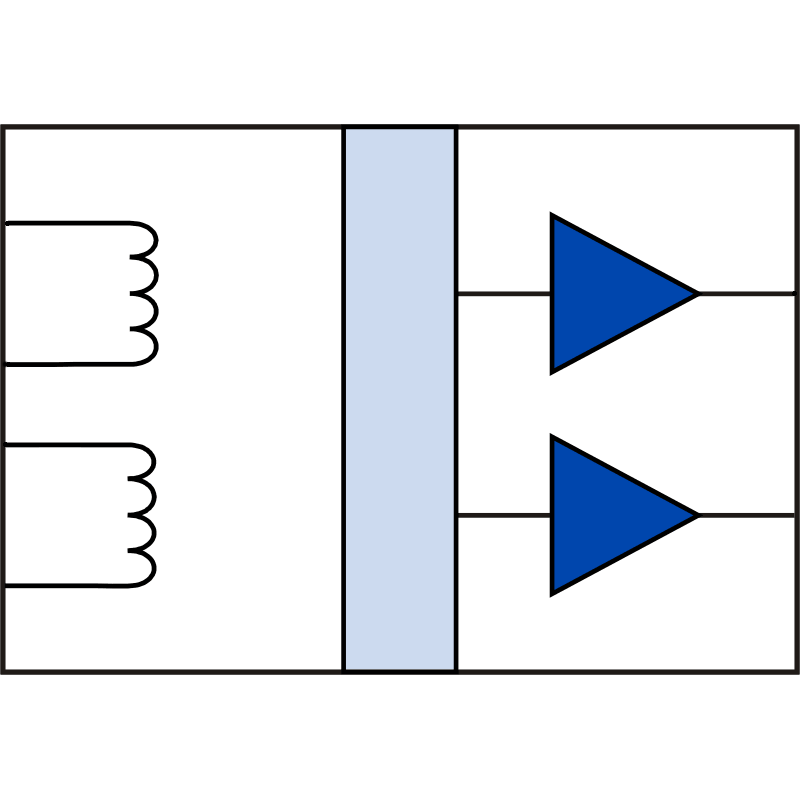

IL611FCMTI-1E: 2-Channel Ultrahigh CMTI Isolator, Default LOW, MSOP
IL611FCMTI-1E: 2-Channel Ultrahigh CMTI Isolator, Default LOW, MSOP
Part Number
IL611FCMTI-1E
Input
Passive
Output
CMOS-Default LOW
Total Channels
2
Transmit Channels
2
Receive Channels
0
Speed (Mbps)
100
Max. Temperature (°C)
85
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
CMTI (kV/μs)
300
Package
MSOP8
Data Sheet
(.pdf)
Package Outline
(.pdf)
3D
(.step)
KiCAD
(External Link)
1 - 9
$
6.24
10 - 24
$
5.83
25 - 99
$
5.10
100 - 499
$
4.42
500 +
$
4.22
Qty:
0 in stock
$
6.24
Add to Cart
In your cart
Add to Cart
Notify me when in stock
