Isolators
Ultrahigh CMTI Isolators/gate drivers (IL600CMTI-Series)

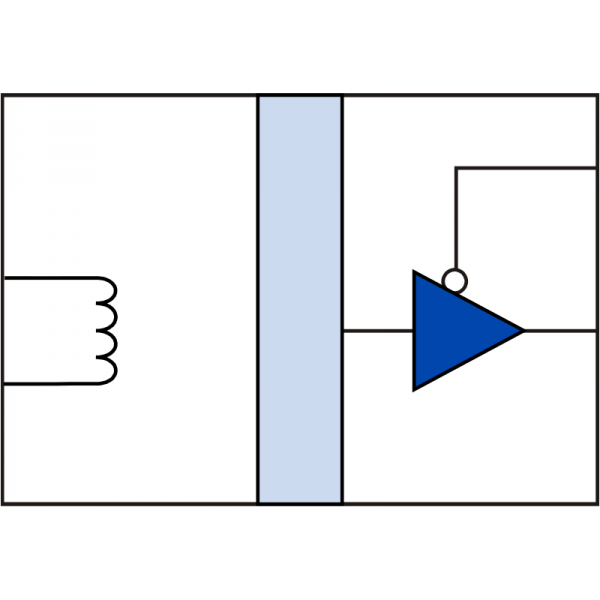

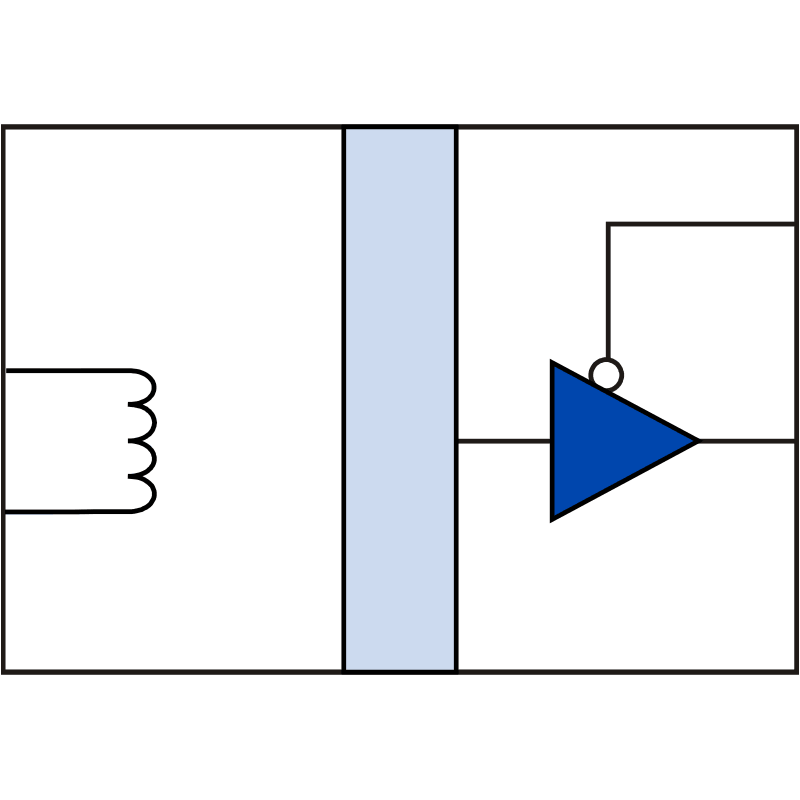

IL610FCMTI-1E: 1-Channel Ultrahigh CMTI Isolator, Default LOW, MSOP
IL610FCMTI-1E: 1-Channel Ultrahigh CMTI Isolator, Default LOW, MSOP
Part Number
IL610FCMTI-1E
Input
Passive
Output
CMOS-Default LOW
Total Channels
1
Transmit Channels
1
Receive Channels
0
Speed (Mbps)
100
Max. Temperature (°C)
85
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
CMTI (kV/μs)
300
Package
MSOP8
Data Sheet
(.pdf)
Package Outline
(.pdf)
STEP File
(.step)
KiCAD Footprints
(External Link)
×
×
Model for MSOP8
Description:
1 - 9
$
4.24
10 - 24
$
3.95
25 - 99
$
3.47
100 - 499
$
3.00
500 +
$
2.86
Qty:
0 in stock
$
4.24
Add to Cart
In your cart
Add to Cart
Notify me when in stock
