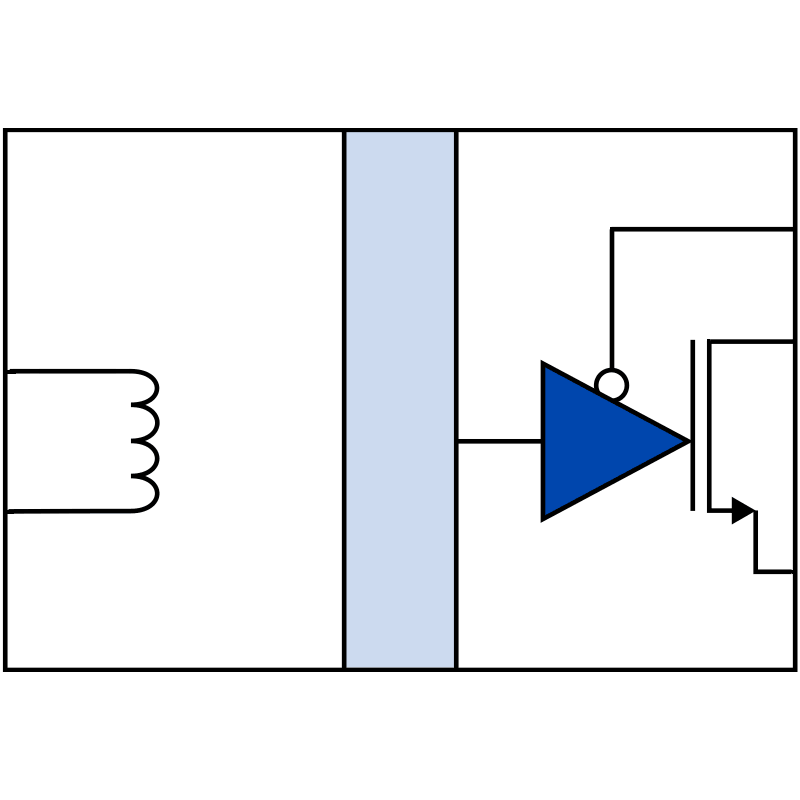

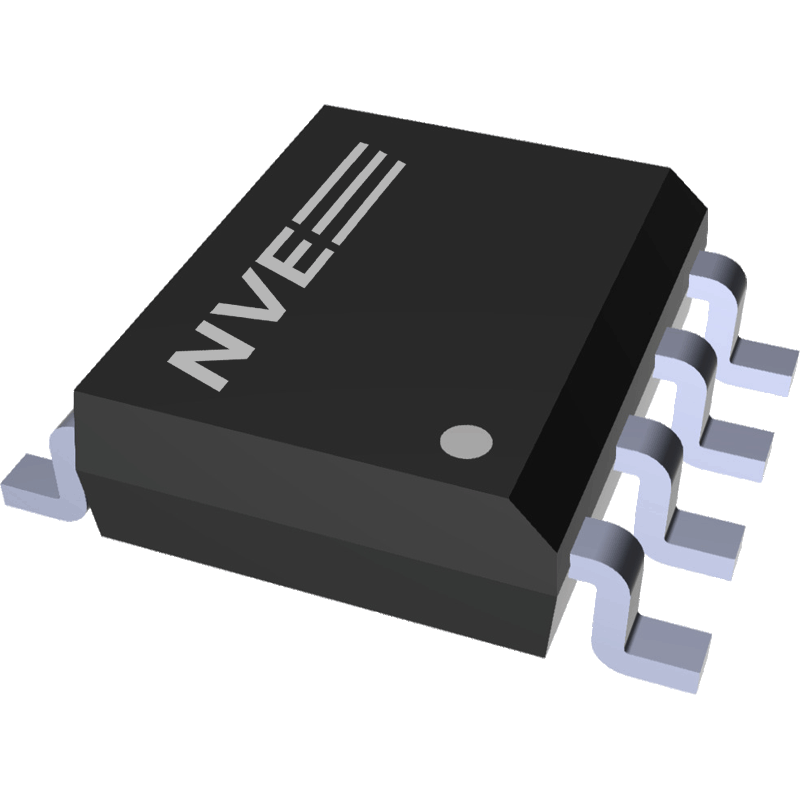

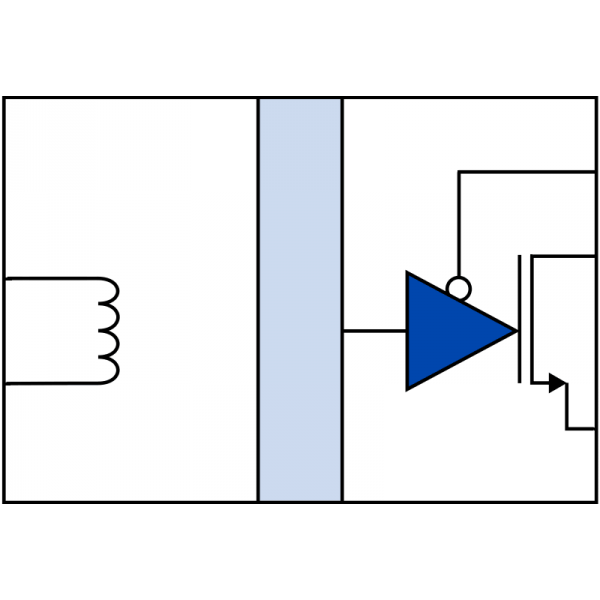

IL610A-3E: 1-Channel Passive Input, Open-Drain Isolator, 2.5 kV, SOIC8
Part Number
IL610A-3E
Input
Passive (resistive)
Output
Open-Drain
Total Channels
1
Transmit Channels
1
Receive Channels
0
Speed (Mbps)
10
Max. Temperature (°C)
85
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
Failsafe
Yes
DC Correct
Yes
Package
SOIC8
Data Sheet
(.pdf)
Package Outline
(.pdf)
3D
(.step)
KiCAD Footprints
Ibis
(External Link)
View 3D Model: SOIC8
×
×
Model for SOIC8
Description:
The IL610A-3E is a 3.3/5V, single-channel, 10 Mbps isolated signal coupler with an open-drain output, which can be used to replace opto-couplers in many standard isolation functions. The device is manufactured with NVE's IsoLoop spintronic GMR technology giving exceptional small size and low power dissipation. The passive input structure allows direct interface to a very wide range of voltage inputs. A single resistor is used to set maximum current for input voltages above 0.5 V. 20 kV/microsecond transient immunity. 8-pin SOIC package.
1 - 9
$
3.18
10 - 24
$
2.97
25 - 99
$
2.60
100 - 499
$
2.26
500 +
$
2.15
Qty:
7212 in stock
$
3.18
Add to Cart
In your cart
Add to Cart
Notify me when in stock
