IL3285E: Fractional Load Passive-Input Isolated RS485 Xcvr, 2.5 kV, Wide SOIC

  • Part Number
  • IL3285E
  • Bus Load (Unit Load)
  • 1/8
  • Bus Voltage (V)
  • 5
  • Speed (Mbps)
  • 5
  • Max. Temperature (°C)
  • 85
  • Isolation Voltage (Vrms)
  • 2500
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
KiCAD Footprints
Ibis
(External Link)
×
×
Model for SOIC16WB

Description:

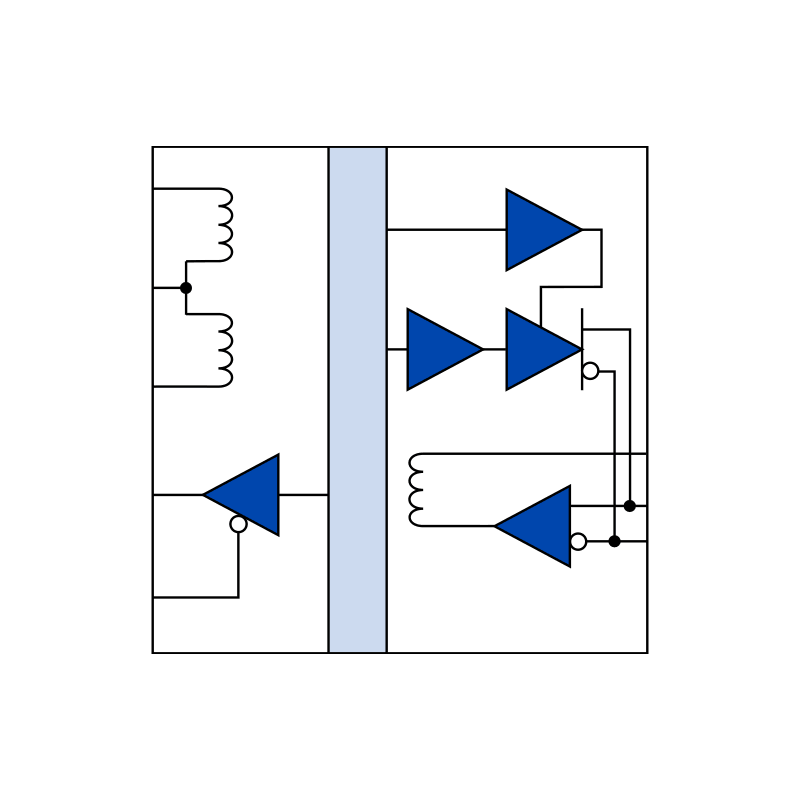

Isolated 1/8 fractional load RS485 transceiver compatible with 3.3 V or 5.0 V input logic. Additional features include 15 kV bus ESD protection, 5 Mbps data rate, and 20 kV per microsecond transient immunity. 16-pin wide-body (0.3’) SOIC package.

1 - 9 $4.52
10 - 24 $4.22
25 - 99 $3.71
100 - 499 $3.21
500 + $3.06
21053 in stock
$4.52
