ALT026-10E: 0-20 mT TMR Bipolar Analog Sensor, 20 KOhm, x-axis, DFN6

  • Part Number
  • ALT026-10E
  • Sensitivity (mV/V/mT)
  • Min. Detectable Field (µT)
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

The ALT026 is a Tunneling Magnetoresistance (TMR) analog bridge magnetic sensor with extraordinary signal amplitude and wide linear range. The differential bridge output is bipolar, meaning it is positive for a positive field and negative for an opposite field polarity. The ALT025 has cross-axis sensitivity (across the pads).

Features:

  • Large signal (200 mV/V)

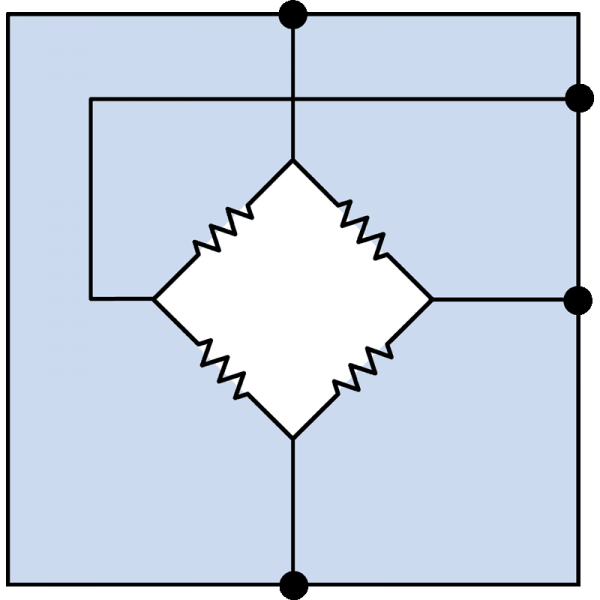

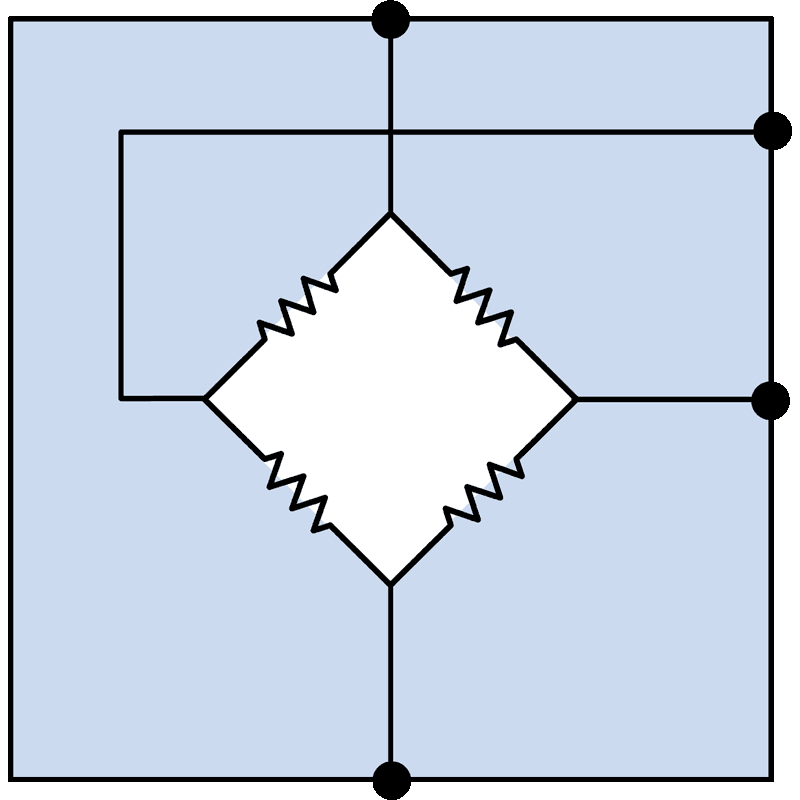

  • Wheatstone bridge magnetometer configuration
  • 0 - 10 V power supply
  • 20 kiloohm device resistance for low power
  • ±20 mT (±200 Oe) linear range
  • High linearity output (<1% F.S.)
  • Ultra-low temperature coefficient of output (±0.1%/°C)
  • Up to 300 kHz frequency bandwidth
  • 2.5 x 2.5 mm DFN6 package
  • –40 to 125°C

Applications:

  • Motion, speed, and position control
  • Non-contact current sensing
  • Mechatronics and robotics
224 in stock
$12.00
