ALT021-10E-EVB02: 0-0.25 mT TMR eval board w/amplifier

  • Part Number
  • ALT021-10E-EVB02
  • Sensitivity (mV/V/mT)
  • Min. Detectable Field (µT)
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

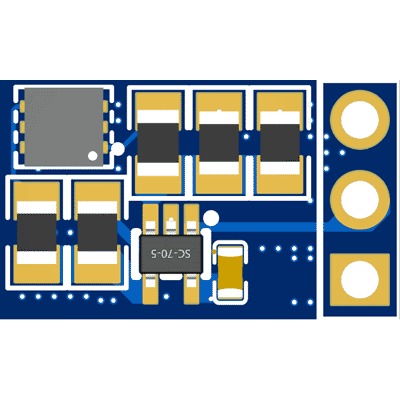

A 0.5 x 0.3 inch (13 x 8 mm) evaluation board with the ALT021-10E ultrahigh sensitivity Tunneling Magnetoresistance (TMR) analog bridge magnetometer. The board has a sensor and a 5x amplifier to provide a 2.5 V/V/mT output.

The board can be powered by a 0.9 to 7 V supply or battery and provides a linear, single-ended output.
16 in stock
$49.95
