AHT922-14E: 4.5 mT, 1.5V, Nanopower TMR Switch, DFN4

  • Part Number
  • AHT922-14E
  • Magnetic Operate Point  (mT)
  • Magnetic Release Point  (mT)
  • Supply Current @1.5 V (µA)
  • Output Current (mA)
  • Max. Temperature (°C)

Description:

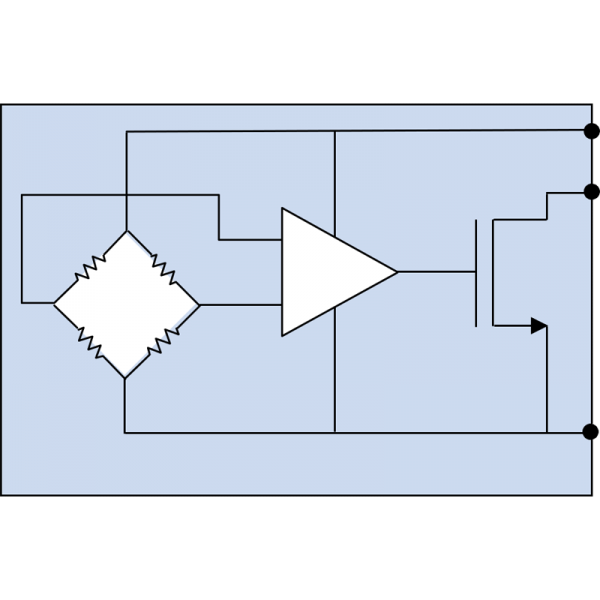

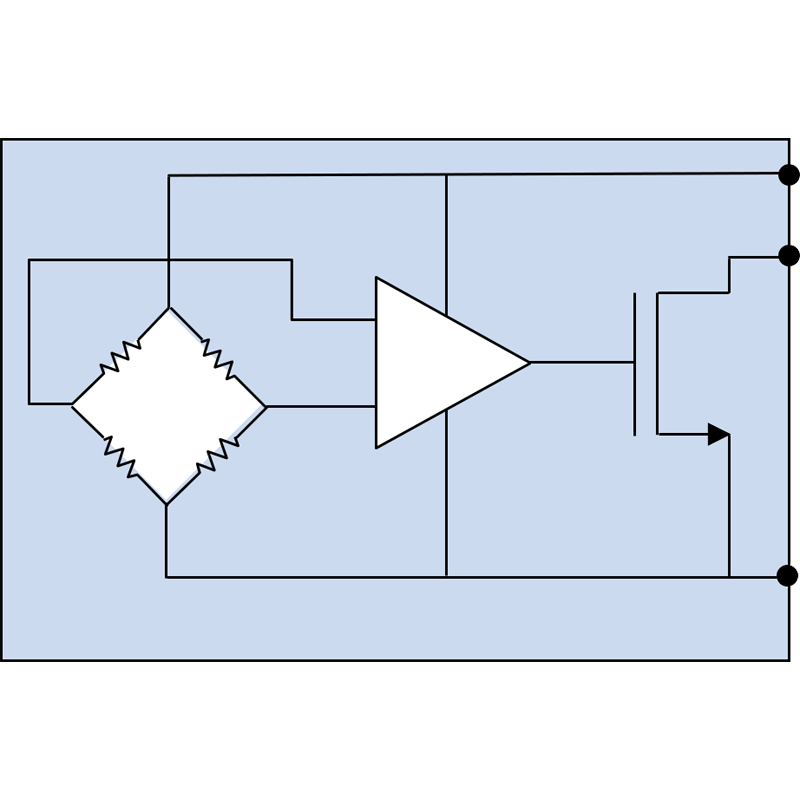

AHT-Series Nanopower Switches integrate TMR sensor elements with digital onboard signal processing. The ultralow power TMR element provides nanopower without duty cycling.

Features:

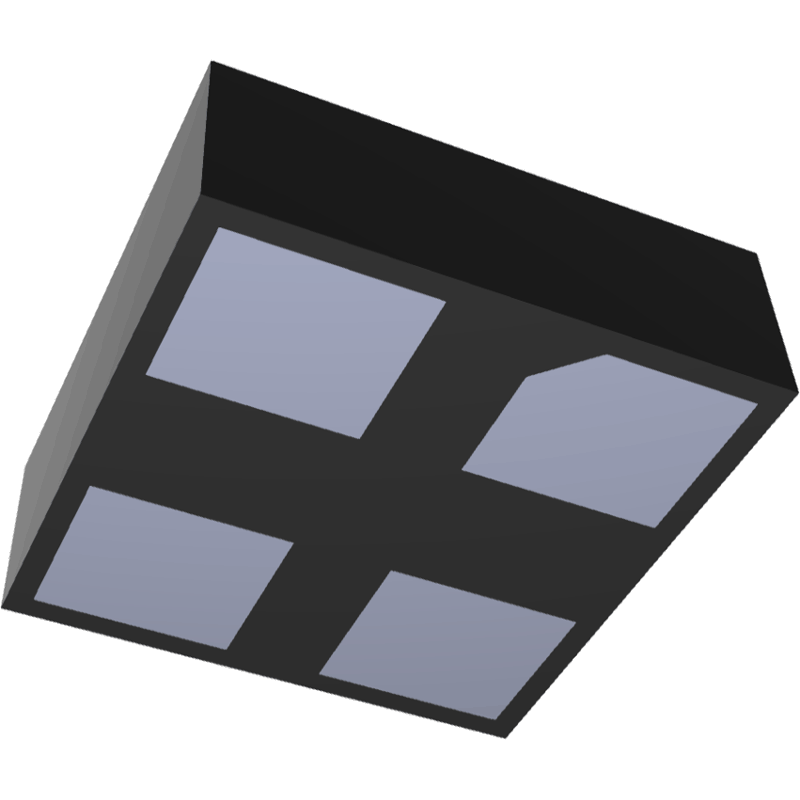

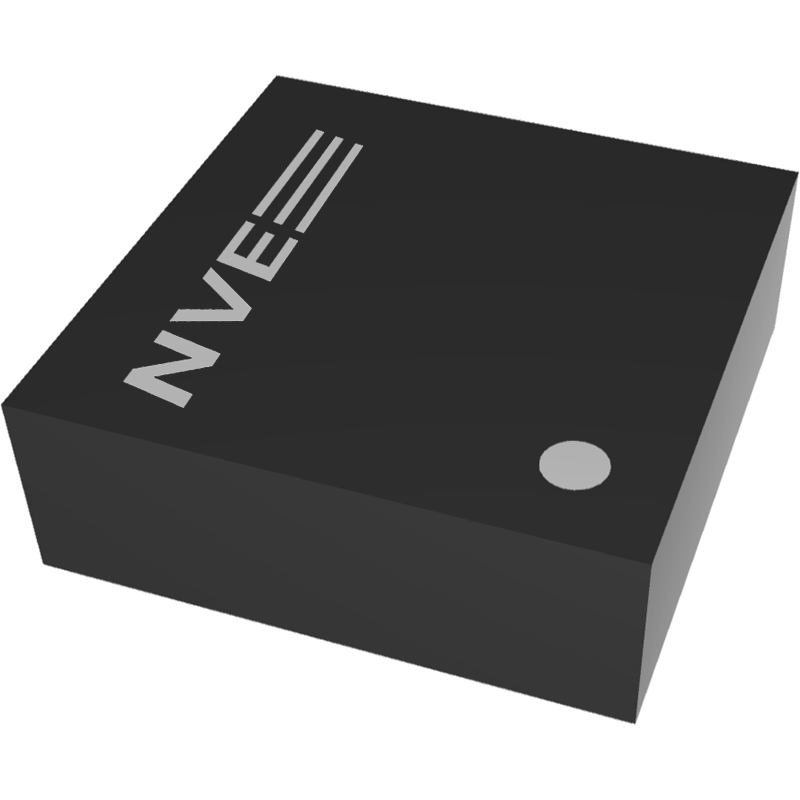

  • Ultraminiature 1.1 mm x 1.1 mm x 0.45 mm DFN4 package
  • Low Voltage Operation to 0.9 V
  • 1 microamp Typical Supply Current
  • Digital Switch Output

Applications:

  • Battery-Powered Devices
  • Portable Instruments
1 - 9 $8.36
10 - 99 $6.22
100 - 499 $4.84
500 + $4.35
1422 in stock
$8.36
