ADL922-14E: 4 mT, 3V Nanopower GMR Switch, DFN4

  • Part Number
  • ADL922-14E
  • Magnetic Operate Point  (mT)
  • 4
  • Magnetic Release Point  (mT)
  • 2.5
  • Supply Current @3 V (µA)
  • 60
  • Output Current (mA)
  • 0.1
  • Max. Temperature (°C)
  • 125
Data Sheet (.pdf)
Package Outline (.pdf)
3D (.step)
KiCAD Footprints
(External Link)
×

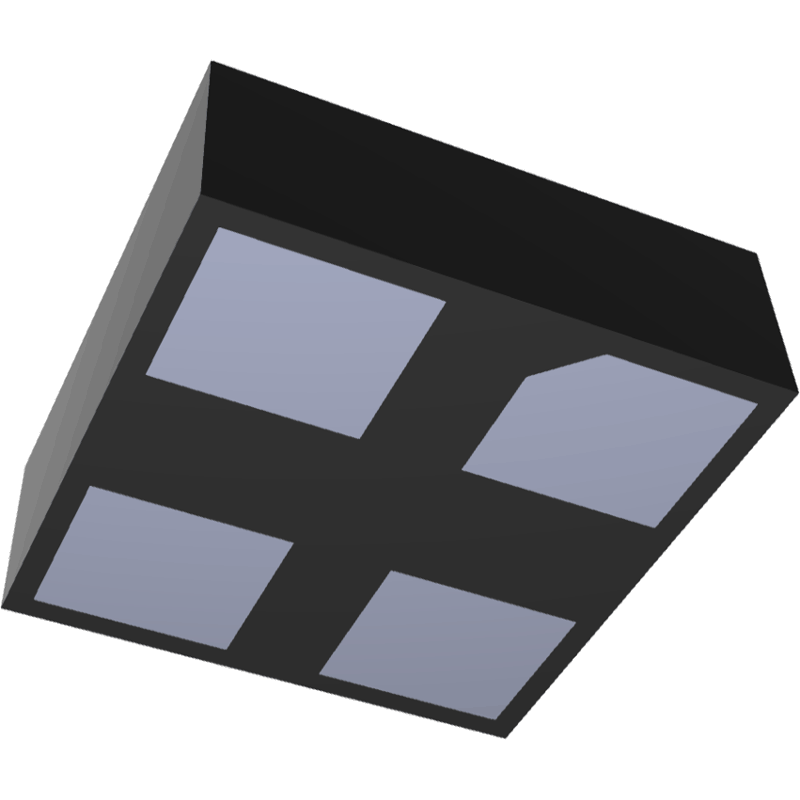

3D Model for 1.1-x-1.1-mm-DFN4
×
Model for 1.1-x-1.1-mm-DFN4

Description:

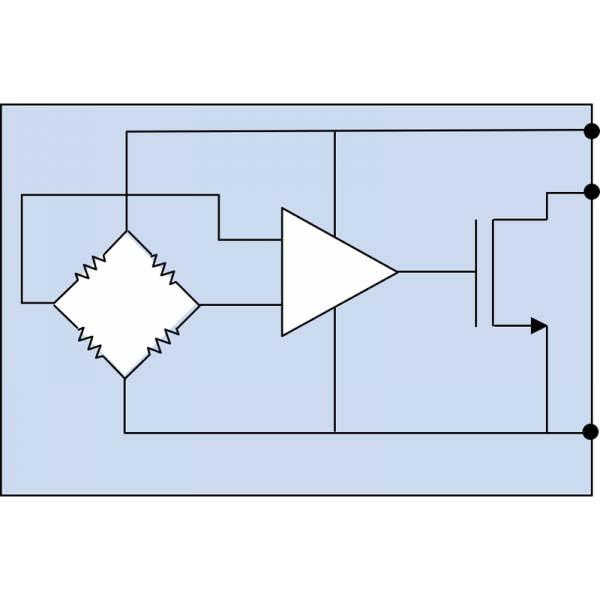

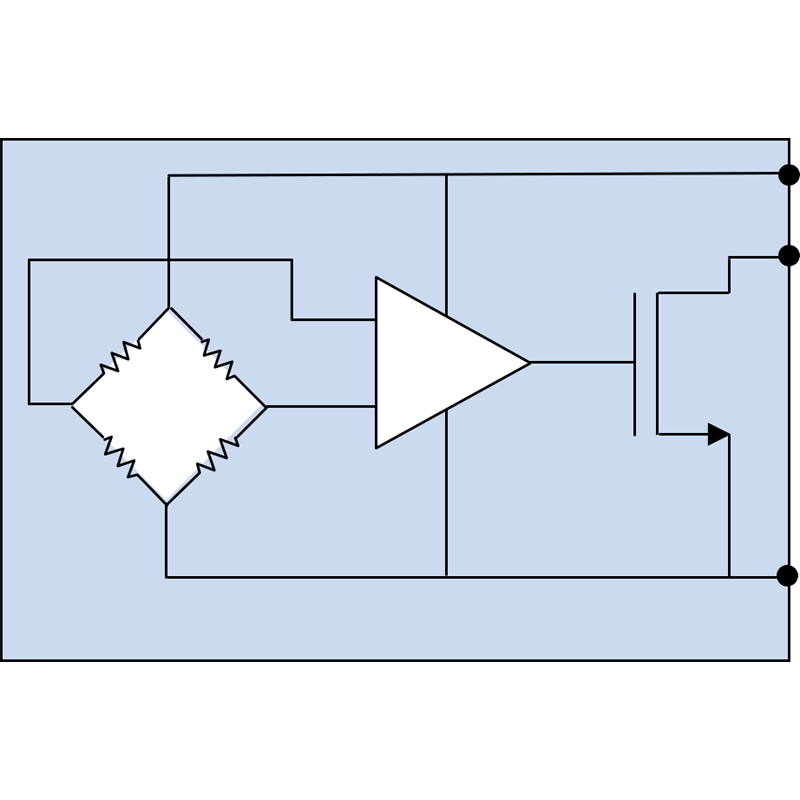

NVE's ADL922-14E Ultraminiature Nanopower Switch integrates GMR sensor elements with onboard digital signal processing. Continuous operation allows high frequency switching. External duty cycling allows nanopower operation. The part is packaged in a 1.1 x 1.1 x 0.35 mm DFN4 package.

Features:
  • Precise 4 mT operate point

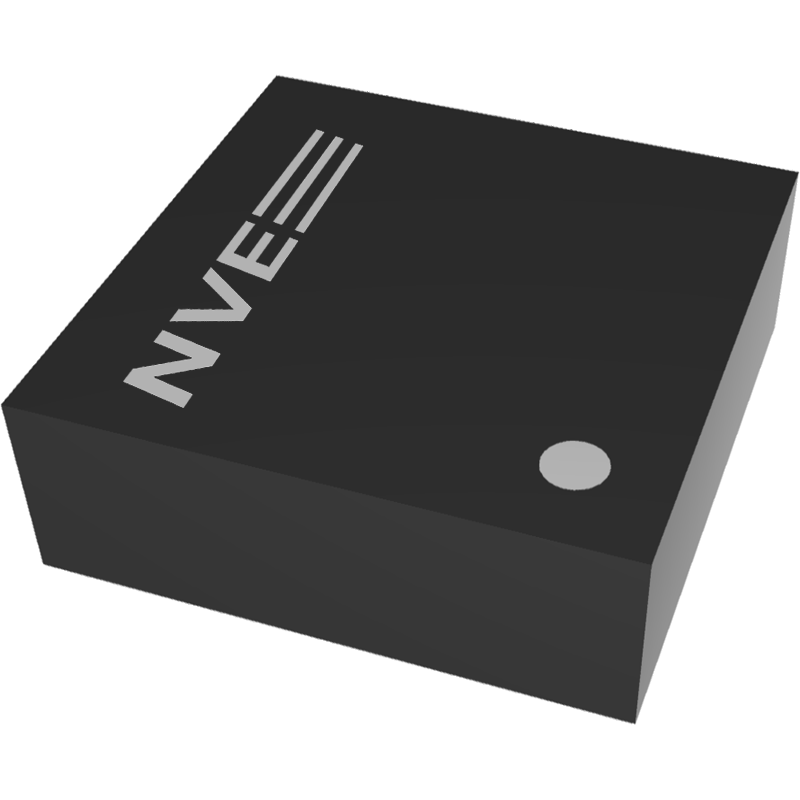

  • Ultraminiature 1.1 mm x 1.1 mm x 0.35 mm DFN4 package
  • 2.4 to 4.2 V
  • Typical Power Consumption 84 microwatts at 2.4 V without duty-cycling
  • 100 kHz Operating Frequency
  • Digital Switch Output
Applications:
  • Battery-Powered Devices
  • Wearables and IoT Sensors
  • Battery-Powered Devices
  • Industrial Sensors
1 - 9 $5.63
10 - 99 $3.68
100 - 499 $2.93
500 + $2.49
2853 in stock
$5.63
