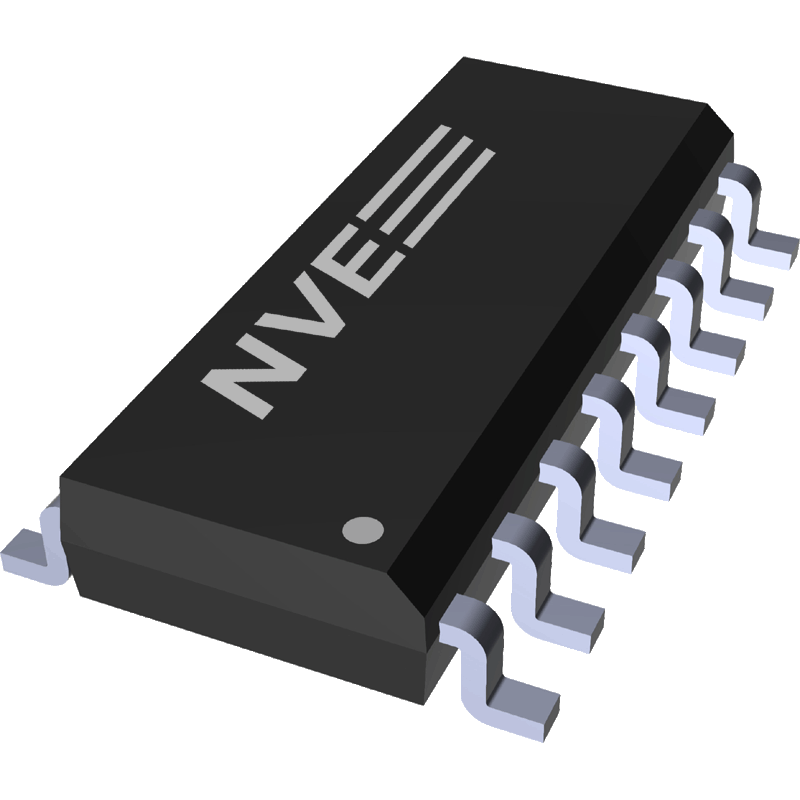

ABT020-03E gear-tooth sensors are typically used with back-biasing magnets to encode the position of a ferrous gear.

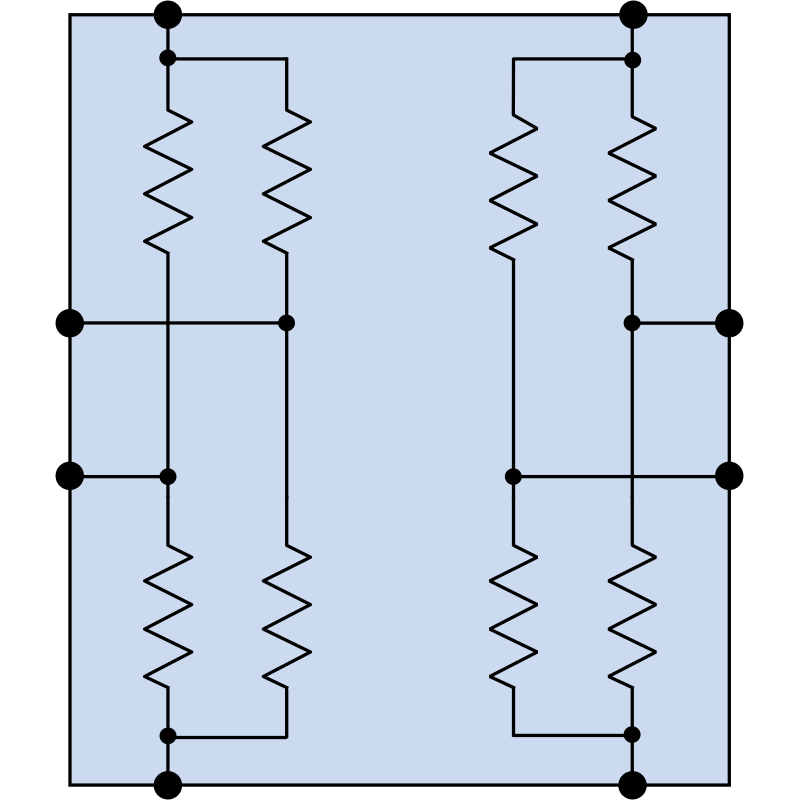

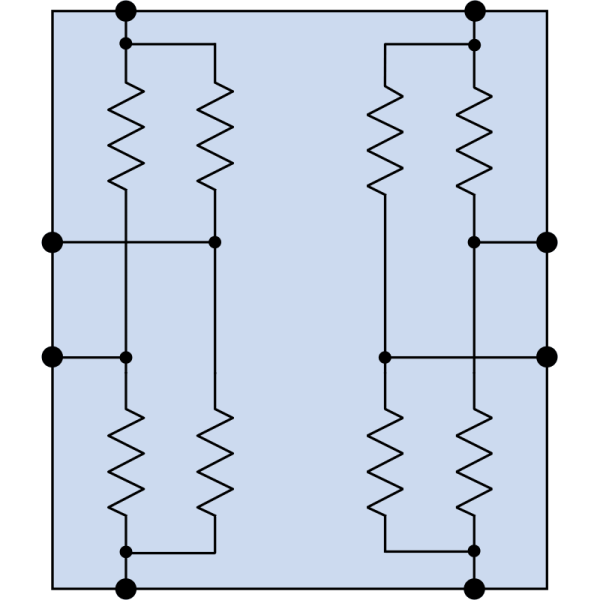

The ABT020-03E is optimized for module 2 gears. The sensors have two channels to encoder incremental position with sine and cosine outputs.
Key features include:
• 0.001° resolution
• Large analog peak-to-peak signals
• Operating frequency to 350 kHz
• 150 °C operating temperature |
