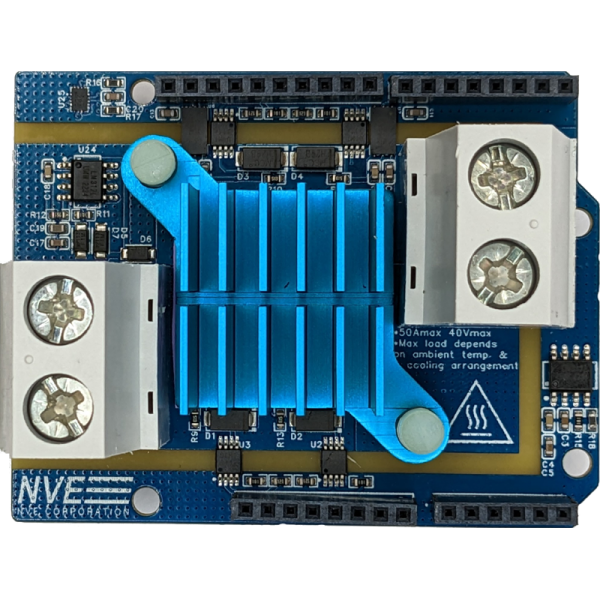

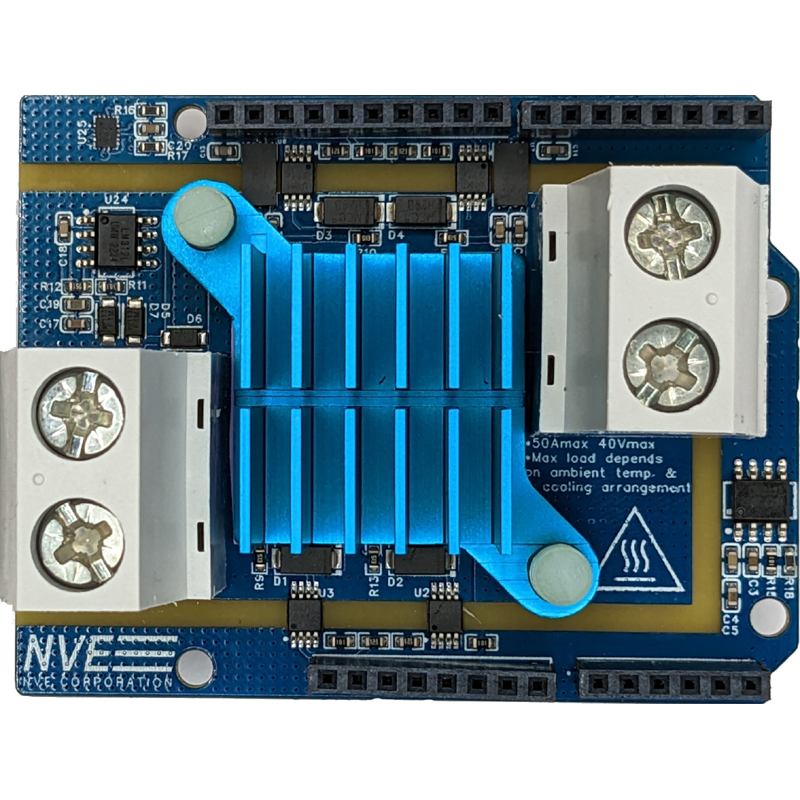

This Arduino Shield board implements an H-bridge power converter using four power MOSFETs, four IL610CMTI-1E ultrahigh CMTI isolated MOSFET drivers, and two ILDC13-15E ultraminiature isolated DC-to-DC convertors.
The board is rated for 40 volts and 50 amps, to control up to two-kilowatt loads.
Example programs are available via our
GitHub Repository.
Key features of the board are:
• A Simple three-wire Arduino interface (PWM, Dir, and Enable)
• Heat-sinking and thermal vias
• Standard Arduino Shield form factor outline
• Easy connections with large screw terminals
Specifications:
• Max. load: 2 kW (40 V / 50 A)
• Load supply line: 8 to 40 V
• Arduino input supply: 5V or 7 V to 20 V, 500 mA max.
• Logic-to-load isolation: 2.5 kV per UL 1577
• Operating Temperature Range: -40 °C to 85 °C
• Dimensions: 2.1 in. by 2.7 in. (53.4 mm by 68.6 mm)
Applications:
• Motor speed and direction control
• Robotics
• DC-to-AC invertors
