ILDC12V-01: Isolated 3.3-to-5V SOIC16 DC-DC Conv Eval Bd

  • Part Number
  • ILDC12V-01
  • DC-to-DC Output (V)

Description:

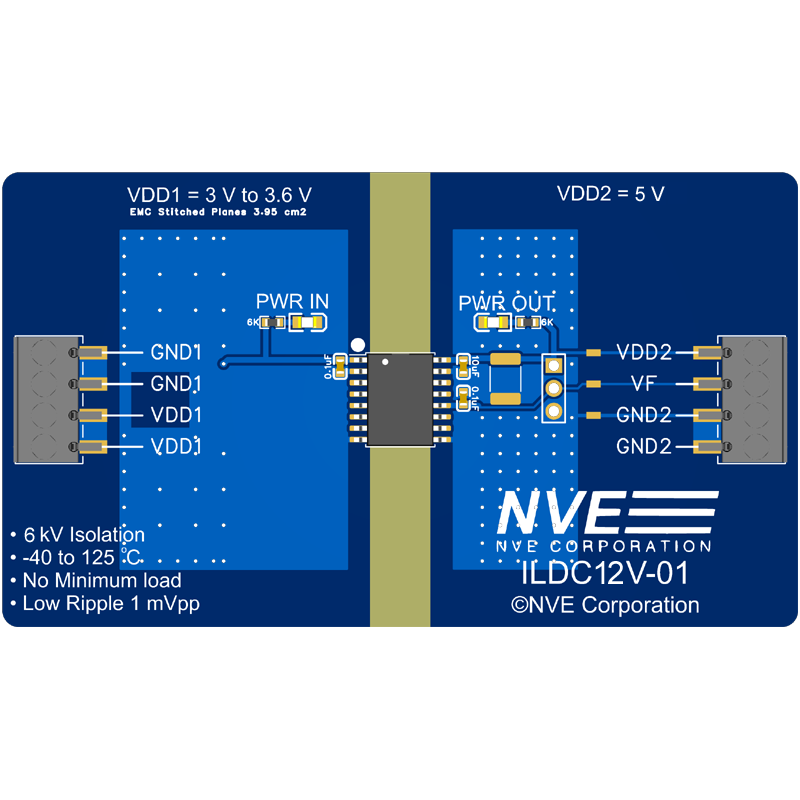

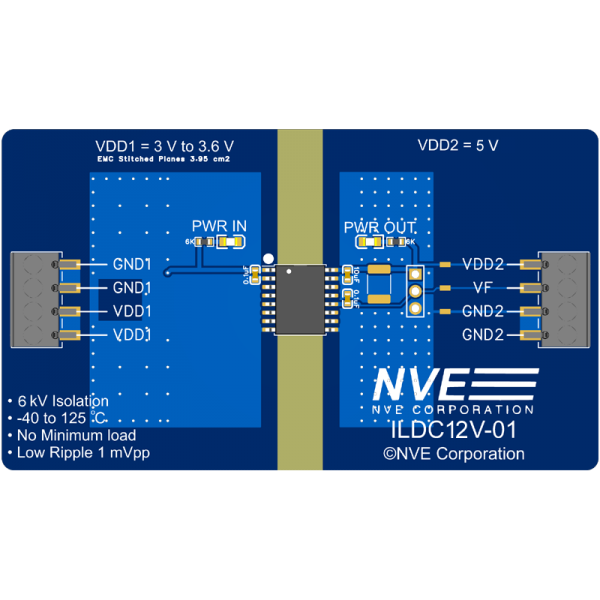

These 2 x 3.5-inch (50 x 90 mm) boards contain your choice of ILDC1x-Series DC-to-DC convertor, bypass capacitors as recommended, as well as test pads, screw terminals, and header pins. LEDs that show the DC-to-DC convertor is operating. The boards follow best practices including 2s2p with thermal vias for optimal thermal performance, and stitched ground planes to provide CISPR 32-compliant EMC mitigation with no external components. The boards have provisions for external components if additional EMC mitigation is desired. The ILDC1x-Series are ultraminiature one-quarter watt DC-to-DC convertors that generate fully-isolated, independent outputs from a 3.3-volt supply. 3.3, 5, and 6-volt output versions are available. No additional regulation is required and there is no minimum load. Frequency hopping and shielding reduce EMI, and ferrite beads or other external components are generally not necessary for EMI mitigation.
$84.95
50 in stock
