IL7816VE: 4-channel (2 each direction) Isolator w/3.3-5V DC-DC Convertor

  • Part Number
  • IL7816VE
  • Total Channels
  • 4
  • Transmit Channels
  • 2
  • Receive Channels
  • 2
  • Coupler Speed (Mbps)
  • 110
  • Max. Temperature (°C)
  • 125

Description:

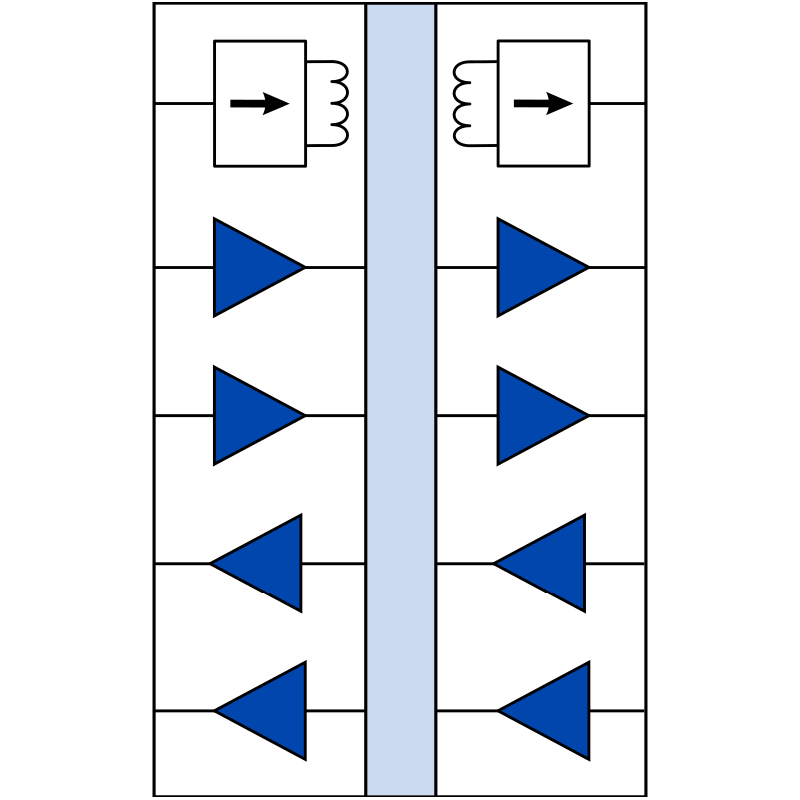

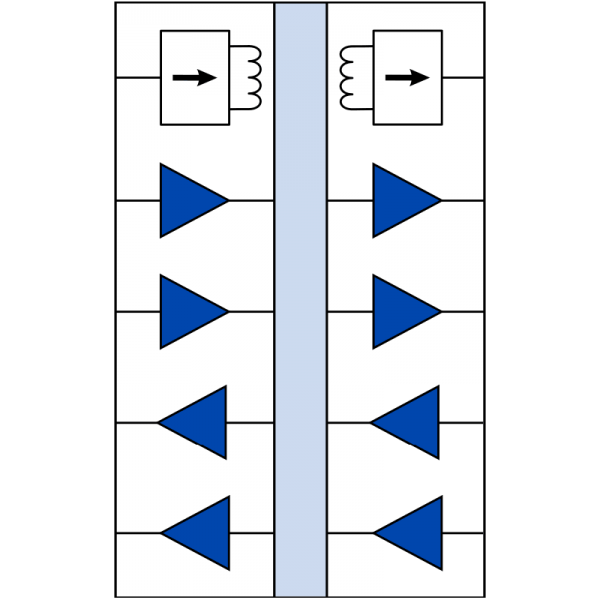

The IL7816VE is a four-channel (two each direction) 110 Mbps isolator with an integrated 3.3V-to-5V isolated DC-DC boost convertor.

The DC-DC convertor can output up to 250 mW, is fully regulated, and has built-in EMI mitigation.

6 kVRMS isolation; 125 C; 16-pin wide-body SOIC package with True 8™ mm creepage.
$12.40
1 - 9 $12.40
10 - 24 $11.60
25 - 99 $10.16
100 - 499 $8.80
500 + $8.40
22 in stock
