IL7814VE: 3-channel (both same direction) Isolator w/3.3-5V DC-DC Convertor

  • Part Number
  • IL7814VE
  • Total Channels
  • 3
  • Transmit Channels
  • 2
  • Receive Channels
  • 1
  • Coupler Speed (Mbps)
  • 110
  • Max. Temperature (°C)
  • 125

Description:

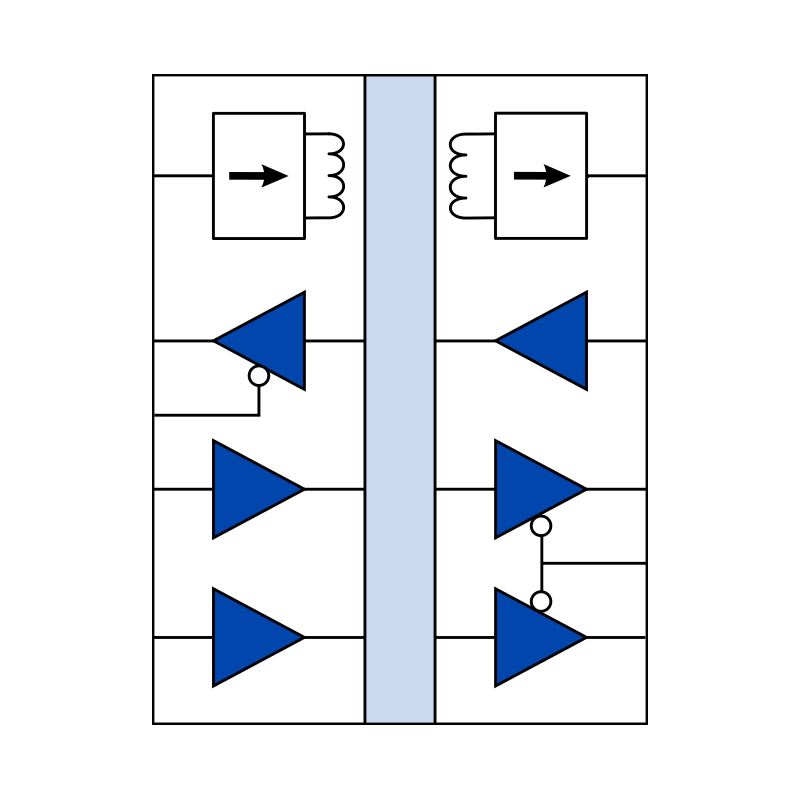

The IL7814VE is a three-channel (2 transmit, 1 receive) 110 Mbps isolator with an integrated 3.3V-to-5V isolated DC-DC boost convertor.

The DC-DC convertor can output up to 250 mW, is fully regulated, and has built-in EMI mitigation.

6 kVRMS isolation; 125 C; 16-pin wide-body SOIC package with True 8™ mm creepage.
$11.78
1 - 9 $11.78
10 - 24 $11.02
25 - 99 $9.66
100 - 499 $8.36
500 + $7.98
16 in stock
