IL7617VE: 4-channel (3 transmit, 1 receive) Isolator w/3.3-3.3V DC-DC Convertor

IL7617VE SPI isolator with integrated DC-DC convertor

IL7617VE: 4-channel (3 transmit, 1 receive) Isolator w/3.3-3.3V DC-DC Convertor

Part Number
IL7617VE

Input
CMOS

Output
CMOS

Total Channels
4

Transmit Channels
3

Receive Channels
1

Integrated DC-to-DC (V)
3.3-to-3.3

Coupler Speed (Mbps)
110

Max. Temperature (°C)
125

Isolation Voltage (Vrms)
6 kVrms

VDE Certification
V 0884-17

Approvals
CISPR 32 Class B

Package
SOIC16WB

Description:

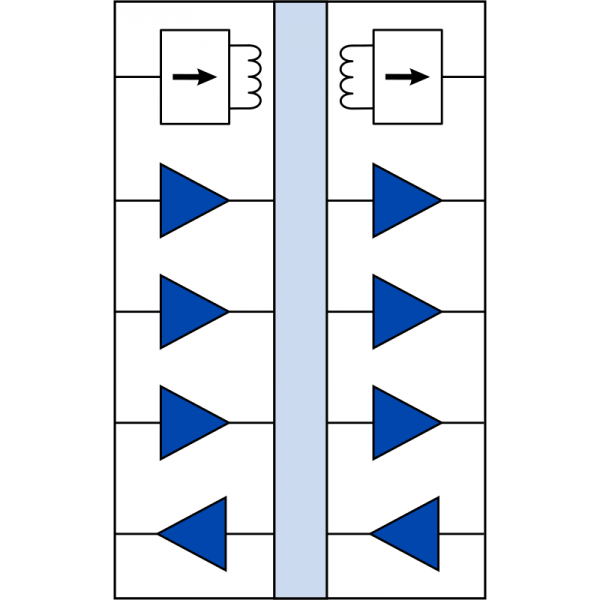

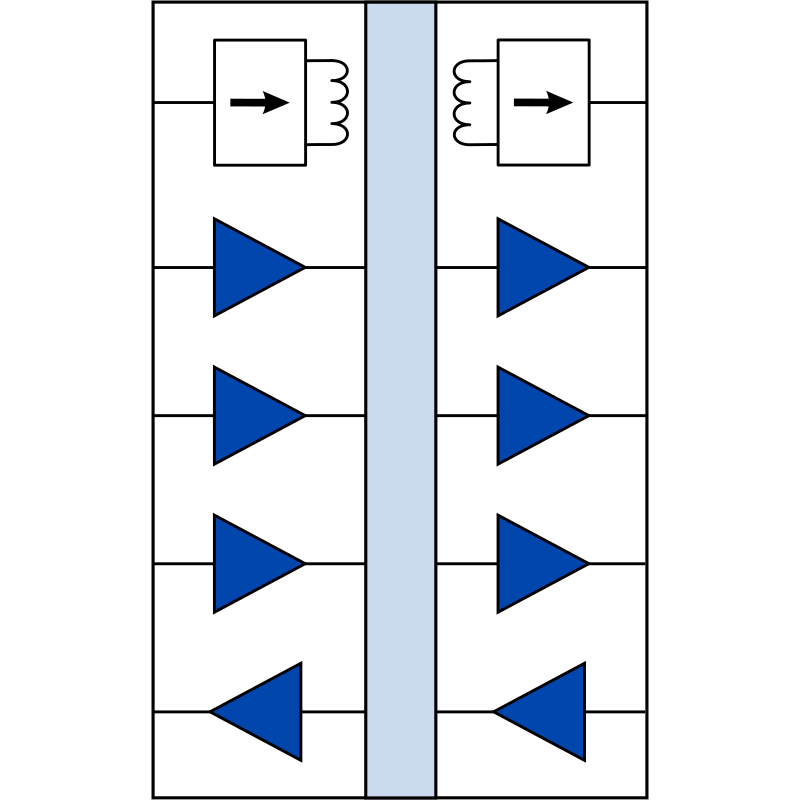

The IL7617VE is a four-channel (3 transmit, 1 receive) 110 Mbps isolator with an integrated 3.3V-to-3.3V isolated DC-DC convertor.

The DC-DC convertor can output up to 250 mW, is fully regulated, and has built-in EMI mitigation.

Best-in-class 6 kVRMS isolation; 125 C; 16-pin wide-body SOIC package with True 8™ mm creepage.

1 - 9 $13.64

10 - 24 $12.76

25 - 99 $11.18

100 - 499 $9.68

500 + $9.24

Qty:

223 in stock

$13.64
