IL716-1-01: 4-Ch (2 ea dir) QSOP Isolator Eval Bd

  • Part Number
  • IL716-1-01
  • Total Channels
  • 4
  • Transmit Channels
  • 2
  • Receive Channels
  • 2
  • Max. Temperature (°C)
  • 100
  • Isolation Voltage (Vrms)
  • 2500

Description:

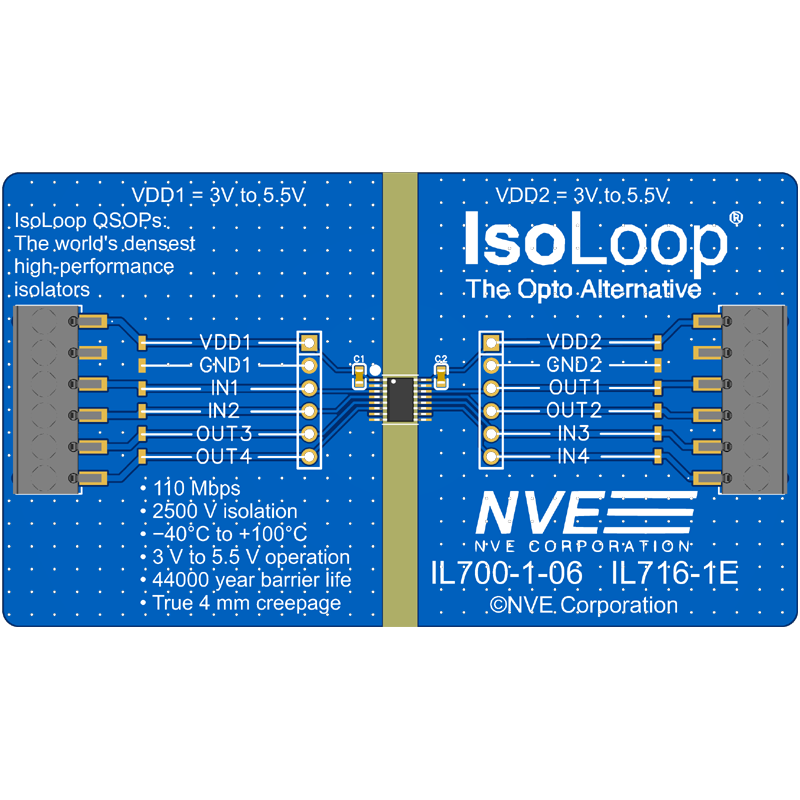

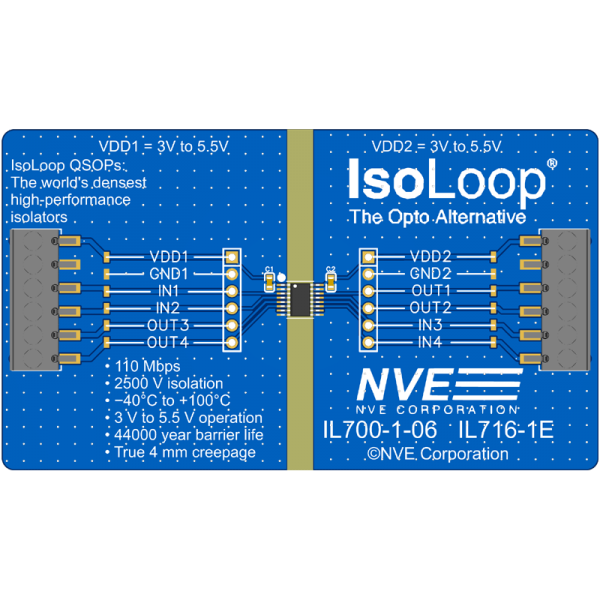

These 2 x 3.5-inch (50 x 90 mm) boards have an IL716-1E four channel (two each direction) ultraminiature QSOP isolator, two bypass capacitors as recommended, screw connections, test pads, and header pins.

The boards let you evaluate the world smallest high-performance isolators.
$49.95
50 in stock
