IL710S-1-01: 150 Mbps 1-Ch MSOP Isolator Eval Board

  • Part Number
  • IL710S-1-01
  • Total Channels
  • 1
  • Transmit Channels
  • 1
  • Receive Channels
  • 0
  • Max. Temperature (°C)
  • 100
  • Isolation Voltage (Vrms)
  • 1000

Description:

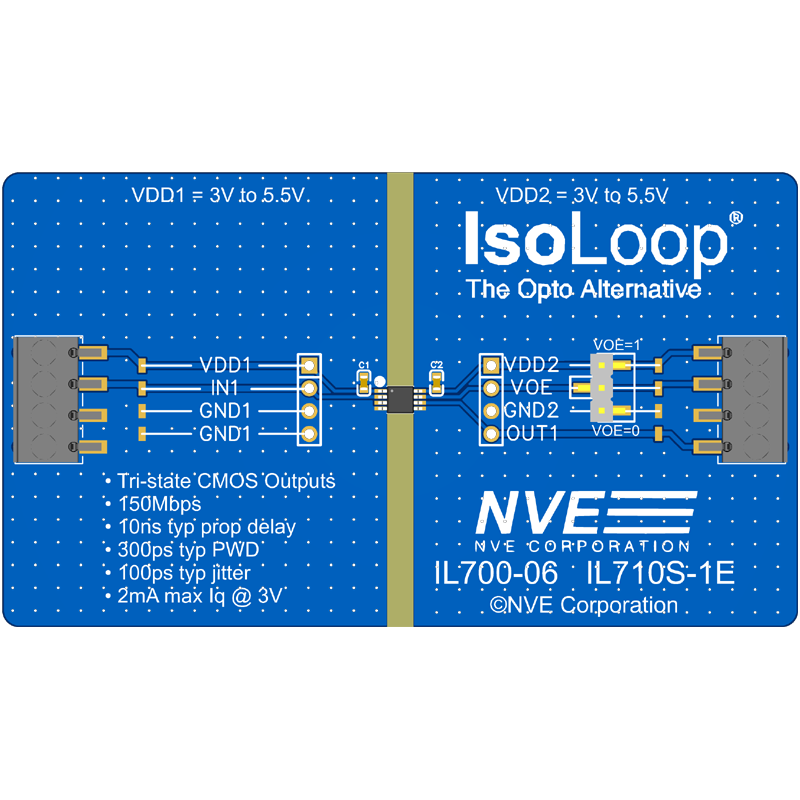

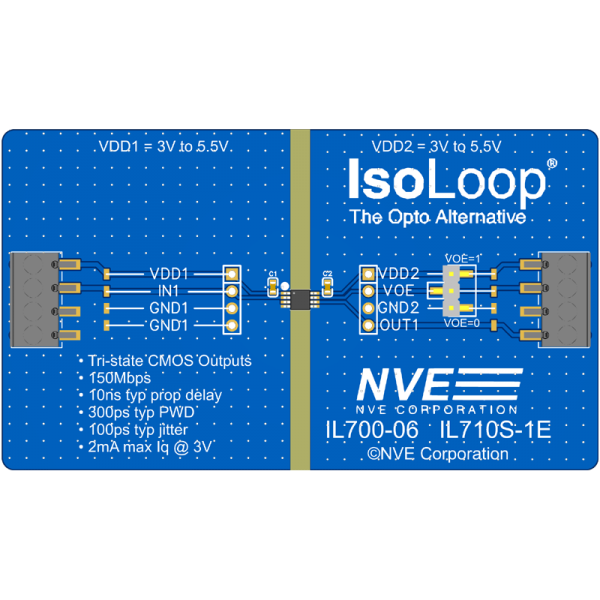

These 2 x 3.5-inch (50 x 90 mm) boards have an IL710S-1E 150 Mbps single-channel (all the same direction) ultraminiature MSOP8 isolator, two bypass capacitors as recommended, screw connections, test pads, and provisions for header pins.

The board lets you evaluate the world smallest isolators.
$49.95
50 in stock
