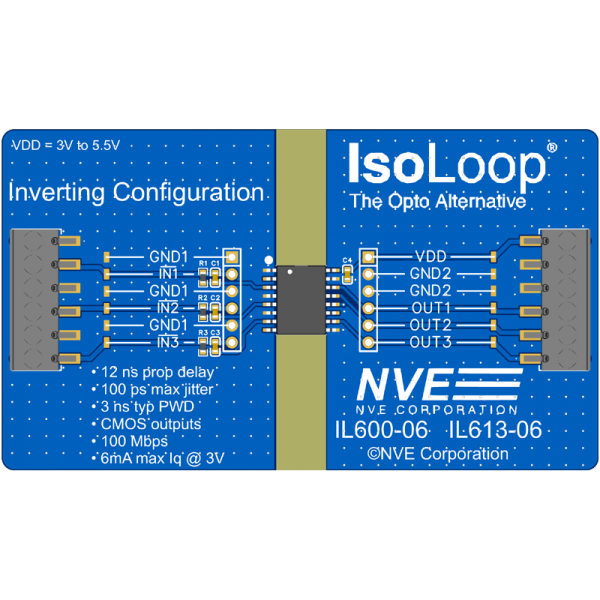

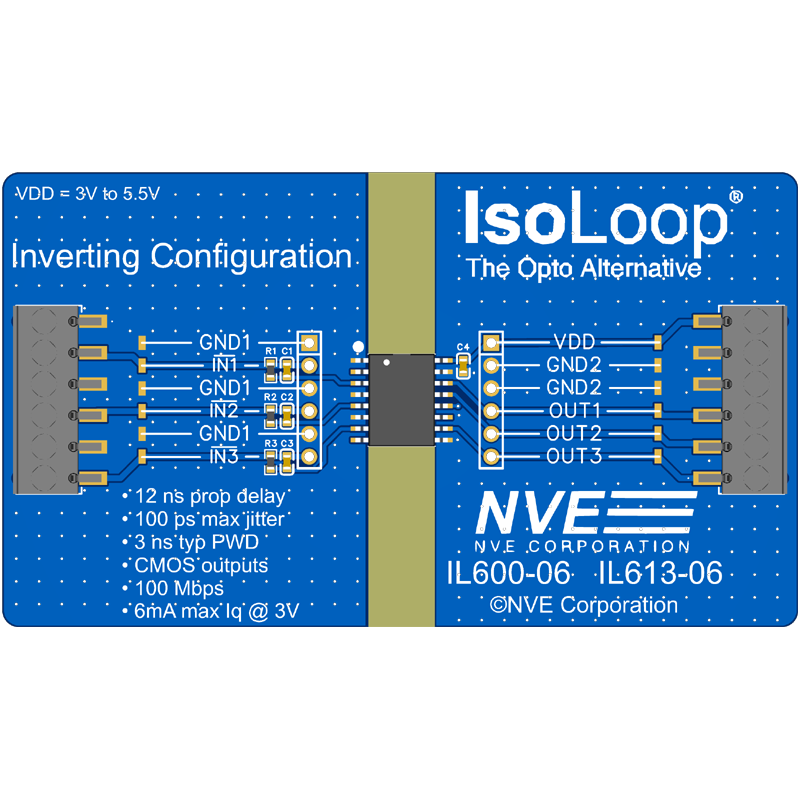

These 2 x 3.5-inch (50 x 90 mm) boards have an
IL613E three-channel (all the same direction) passive isolator, input resistors and capacitors, a power-supply bypass capacitor as recommended, screw connections, and provisions for header pins.
Award-winning IL600-Series Isolators provide unique passive inputs for flexibility similar to LED-input optocouplers but with better performance and higher package density. The devices are manufactured with NVE’s patented IsoLoop spintronic Giant Magnetoresistive (GMR) technology for small size, high speed, and low power.
