IL610A-2E: 1-Channel Passive Input, Open-Drain Isolator, 2.5 kV, PDIP

  • Part Number
  • IL610A-2E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

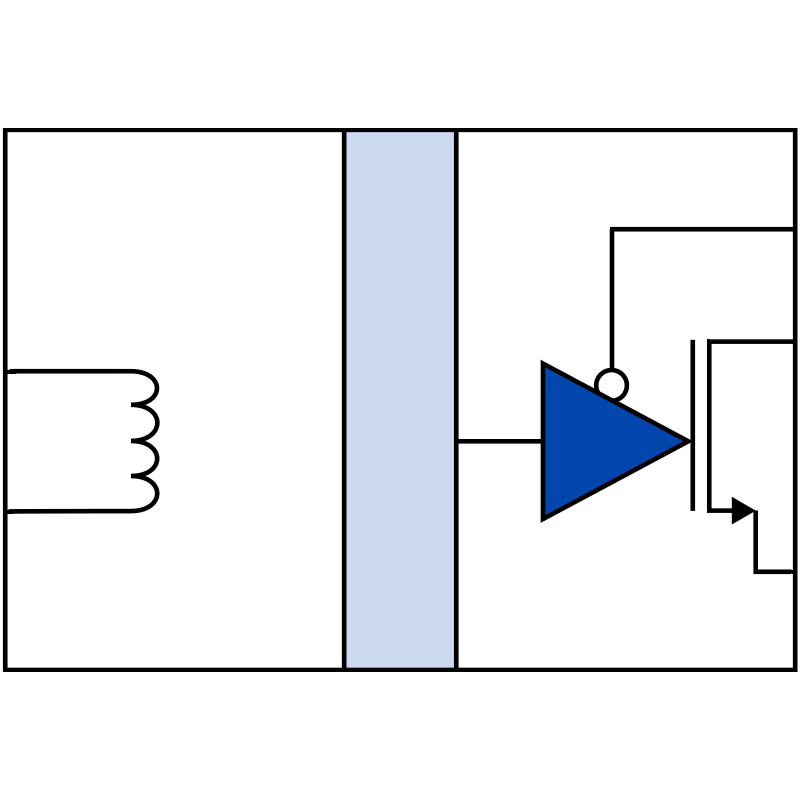

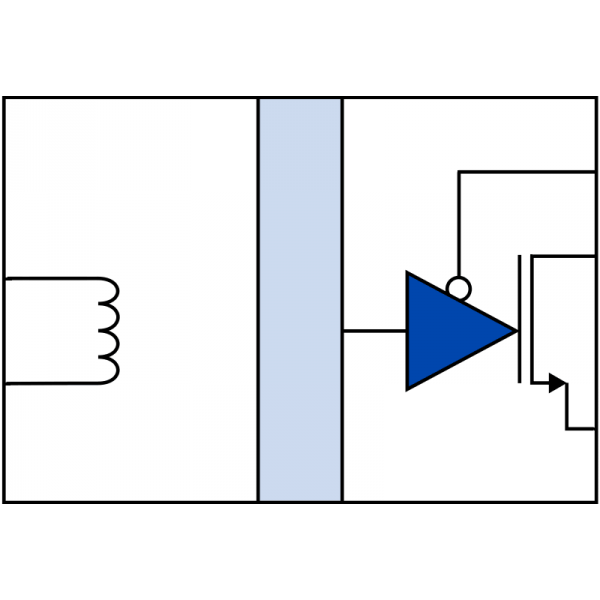

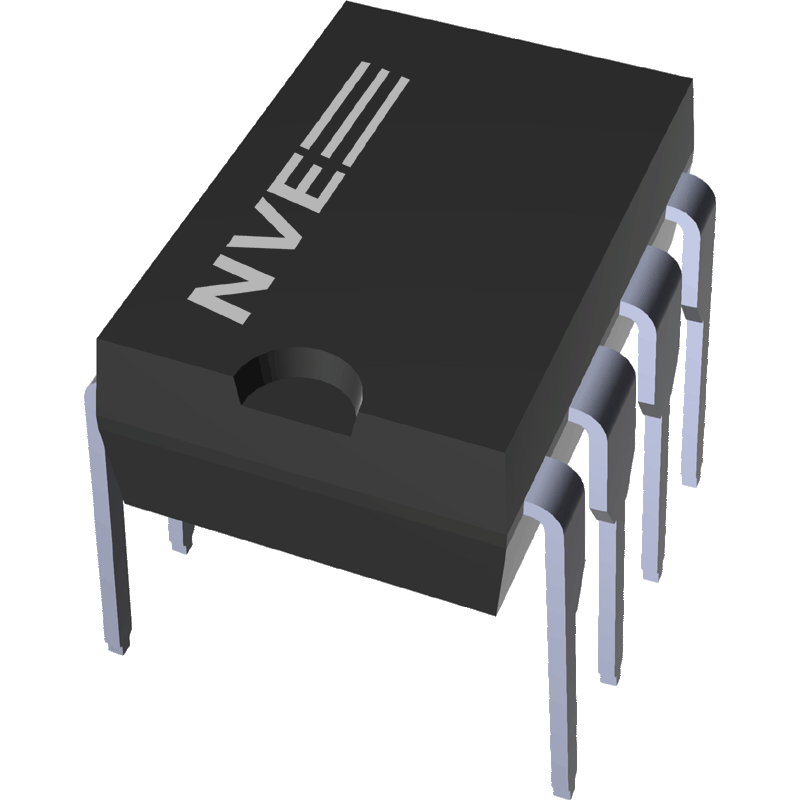

The IL610A-2E is a 3.3/5V, single-channel, 10 Mbps isolated signal coupler with an open-drain transistor output, which can be used to replace opto-couplers in many standard isolation functions. The device is manufactured with NVE IsoLoop spintronic GMR technology giving exceptional small size and low power dissipation. The passive input structure allows direct interface to a very wide range of voltage inputs. A single resistor is used to set maximum current for input voltages above 0.5 V. 20 kV/microsecond transient immunity. 8-pin PDIP package.

RoHS compliant.

Lead-free product information

$3.19
1 - 9 $3.19
10 - 24 $2.98
25 - 99 $2.61
100 - 499 $2.26
500 + $2.16
730 in stock
