IL600-01: IL600-Series Isolator Evaluation Board

  • Part Number
  • IL600-01
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

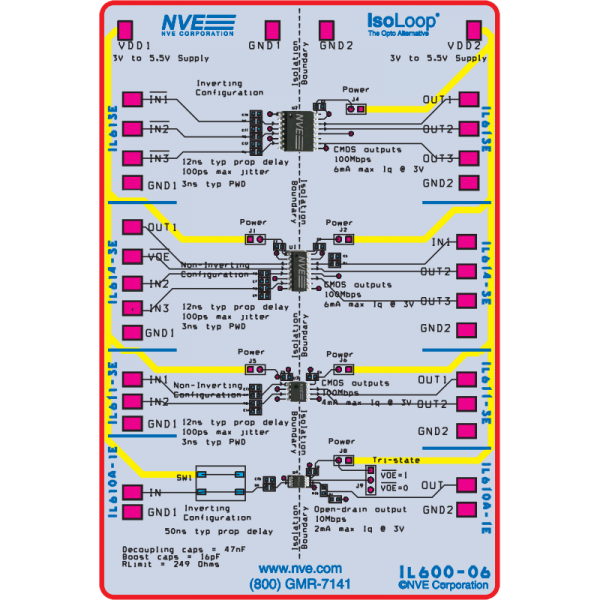

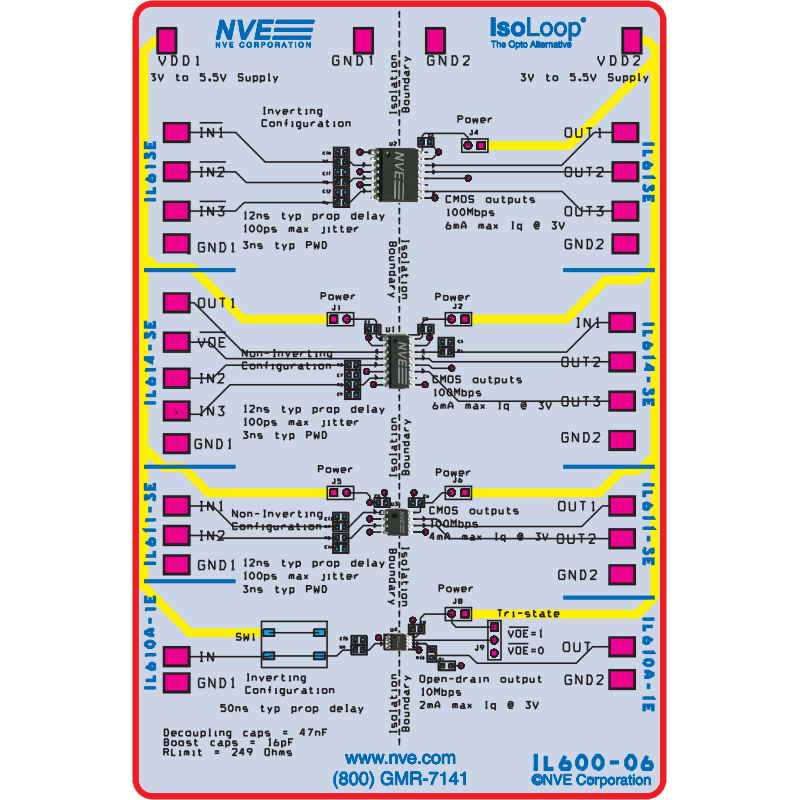

The IL600-Series Isolator evaluation board lets you try a variety of NVE’s unique passive-input isolators.

The board has four IL600-Series isolators in four package types:
• IL613E (wide-body SOIC-16)
• IL614-3E (narrow-body SOIC-16)
• IL611-3E (SOIC-8)
• Open-drain IL610A-1E (MSOP-8)

A pushbutton and LED demonstrates the unmatched flexibility of these devices.

The award-winning IL600 and IL600A Series Isolators provide unique flexibility similar to LED-input optocouplers but with better performance and higher package density.
$49.95
2 in stock
