IL3685T-01: 40Mbps, 125C Isolated Xcvr Eval Bd, Wide SOIC

  • Part Number
  • IL3685T-01
  • Bus Load (Unit Load)
  • Bus Voltage (V)
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

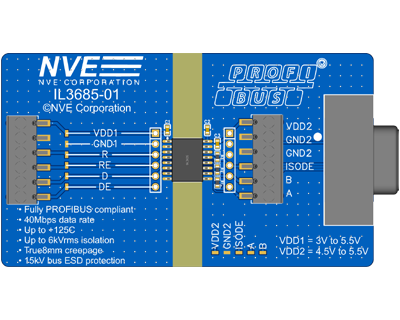

These 2 x 3.5-inch (50 x 90 mm) boards include an IL3685TE isolated RS-485 transceiver, a termination resistors, power-supply bypass capacitors as recommended, screw connections, provisions for header pins, and a DB9 bus connector for PROFIBUS.

The IL3685TE is the world fastest isolated transceiver with data rates to 40 Mbps, is fully PROFIBUS compatible, including the stringent bus differential specifications, and is rated to a full 125C.
$49.95
50 in stock
