IL3685-3-01: PROFIBUS Isolator Evaluation Board

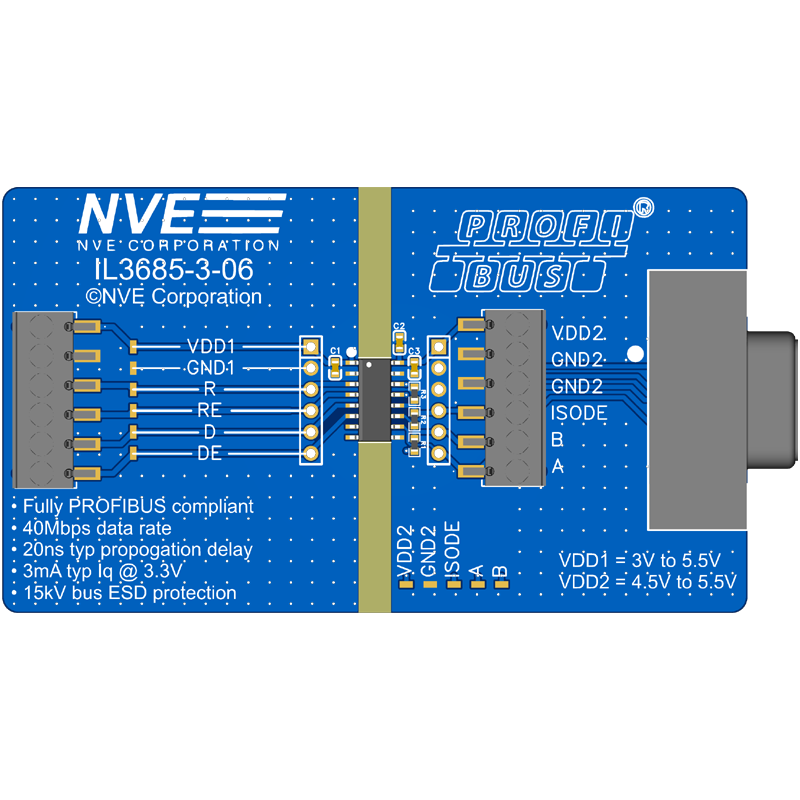

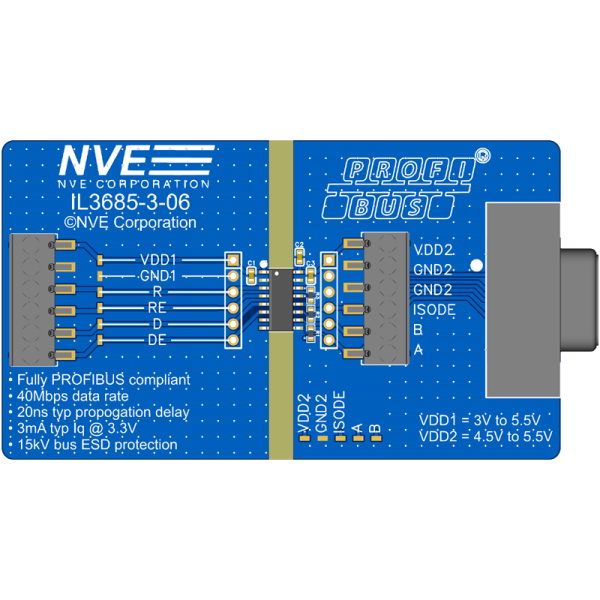

The PROFIBUS Isolated Transceiver Evaluation Board provides a complete isolated PROFIBUS node using the unique 0.15" narrow-body IL3685-3E isolated transceiver. The board provides screw terminal and PROFIBUS DB9 connections.

Termination, pull-up, and pull-down resistors are typical PROFIBUS values, and easily changed for specific applications.

The transceiver provides data rates to 40 Mbps, and is fully PROFIBUS compatible, including the stringent bus differential specifications.
