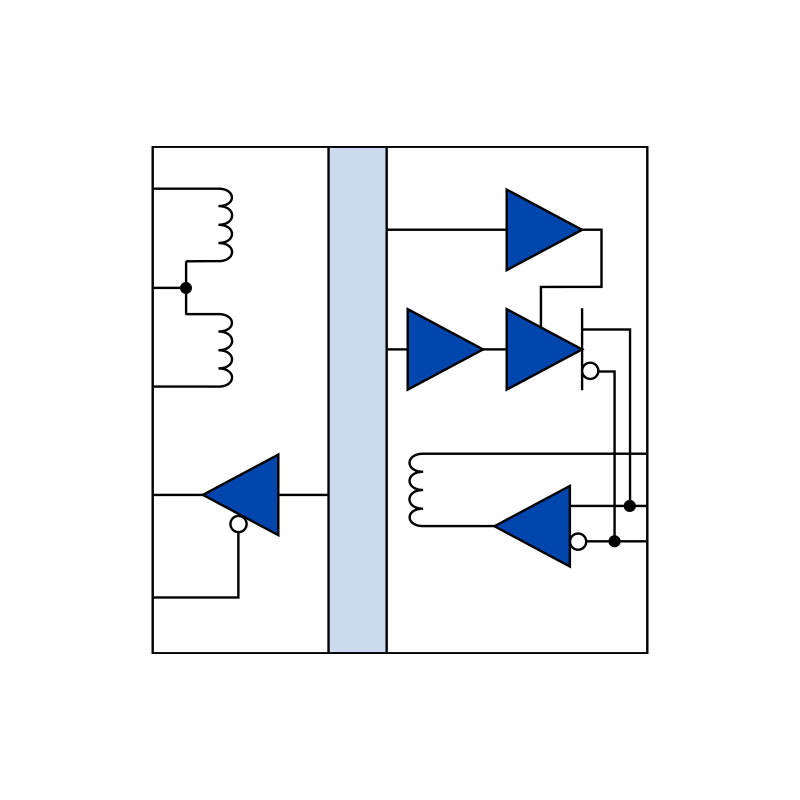

IL3485E: High-Speed Passive-Input Isolated RS485 Xcvr, 2.5 kV, Wide SOIC

  • Part Number
  • IL3485E
  • Bus Load (Unit Load)
  • 1
  • Bus Voltage (V)
  • 5
  • Max. Temperature (°C)
  • 85
  • Isolation Voltage (Vrms)
  • 2500
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
KiCAD Footprints
Ibis
(External Link)
×
×
Model for SOIC16WB

Description:

20 Mbps, 3.3 V or 5.0 V input logic, 15 kV bus ESD protection, and 20 kV per microsecond transient immunity. 16-pin wide-body (0.3’’) SOIC package.

1 - 9 $4.62
10 - 24 $4.31
25 - 99 $3.77
100 - 499 $3.27
500 + $3.12
4543 in stock
$4.62
