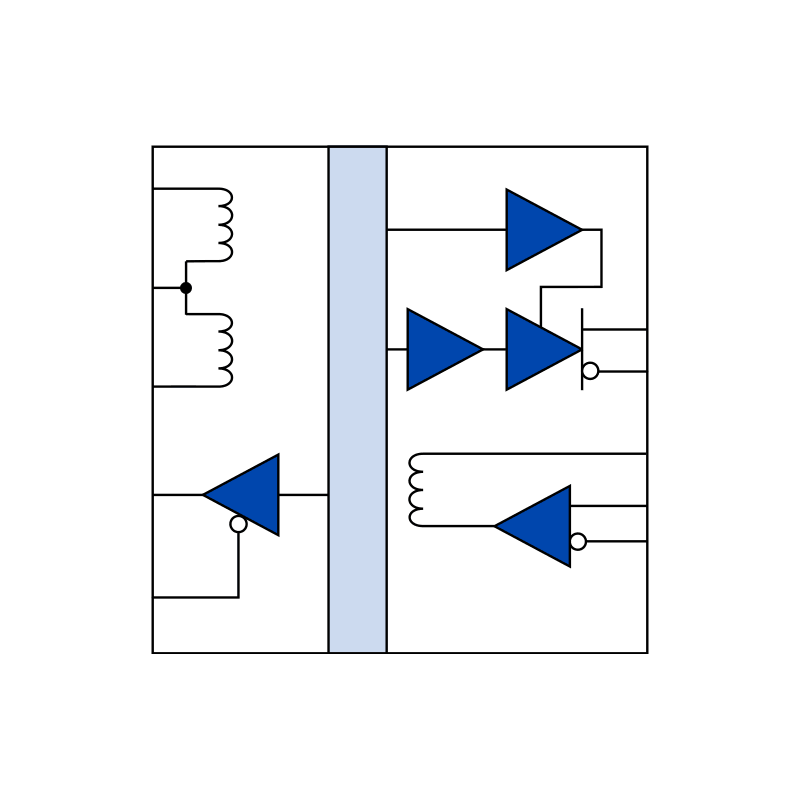

IL3422-3E: High-Speed Passive-Input Isolated RS422 Xcvr, 2.5 kV, Narrow SOIC
IL3422-3E: High-Speed Passive-Input Isolated RS422 Xcvr, 2.5 kV, Narrow SOIC
Part Number
IL3422-3E
Input
Passive (resistive)
Bus
RS-422/RS-485
Duplex
Full
Bus Load (Unit Load)
1
Bus Voltage (V)
5
Speed (Mbps)
20
Max. Temperature (°C)
85
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
Package
SOIC16NB
Electronic Data Automation
(External Link)
Data Sheet
(.pdf)
Description:

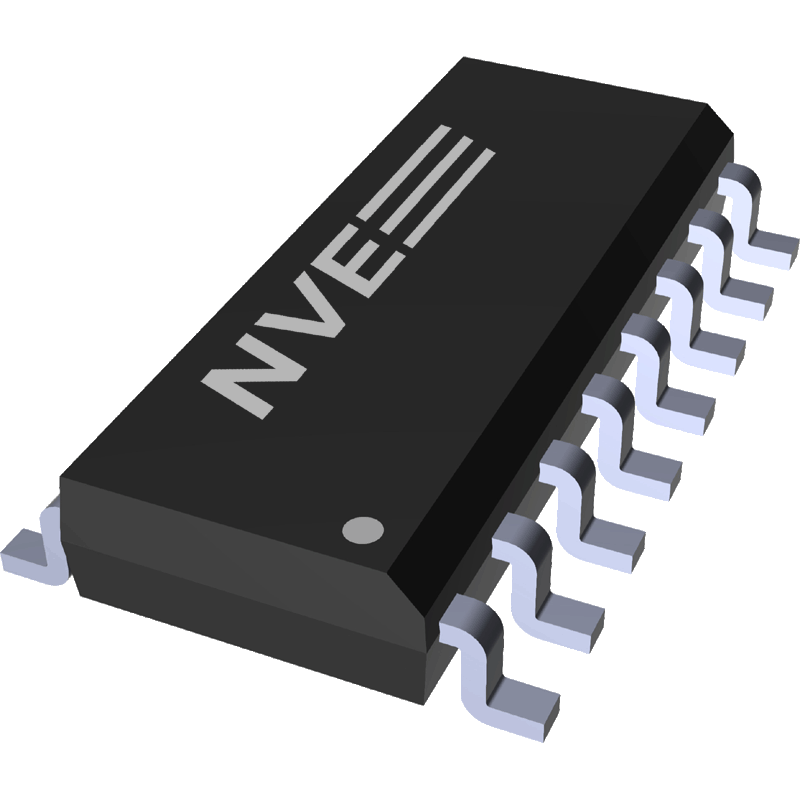

20 Mbps, 3.3 V or 5.0 V input logic, 15 kV bus ESD protection, and 20 kV per microsecond transient immunity. 16-pin narrow-body (0.15'') SOIC package.
RoHS compliant.
Lead-free product information
$
4.19
Qty:
7894 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
