DC002-10E: 5V High-Temp Voltage Regulator

  • Part Number
  • DC002-10E
  • Output Current (mA)
  • Max. Input Voltage (V)
  • Max. Temperature (°C)

Description:

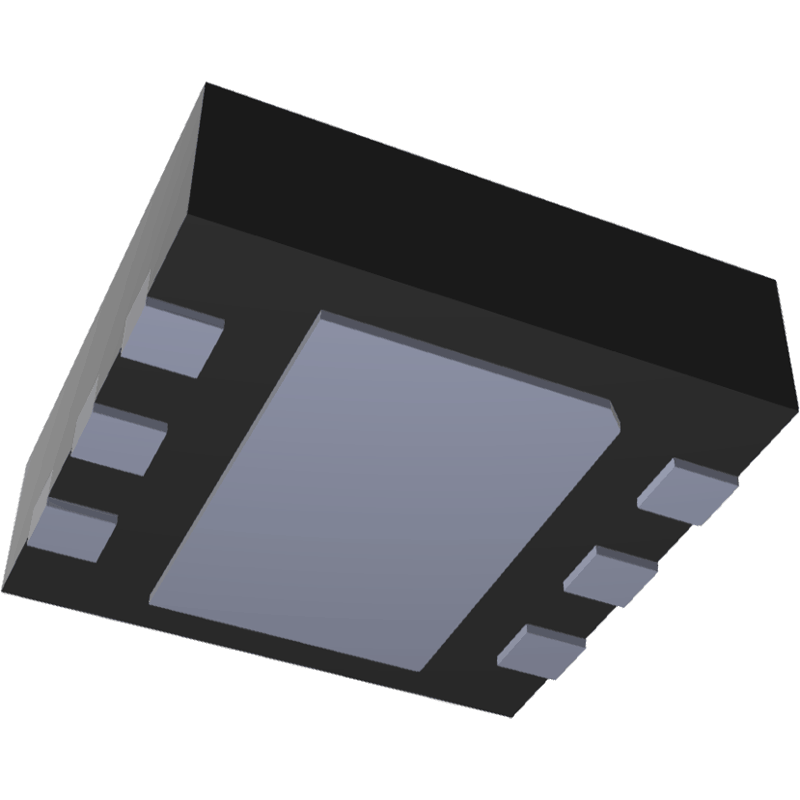

The DC001-10E 5V regulator is designed for harsh, noisy environments where immunity to large voltage transients and high input voltages are required. These regulators protect the sensitive electronic components while providing a stable regulated supply. They are rated for high temperature operation, up to 175 degrees Celsius. The low profile, small footprint package features an exposed die-attach pad for direct heat sinking to the circuit board.

Features:

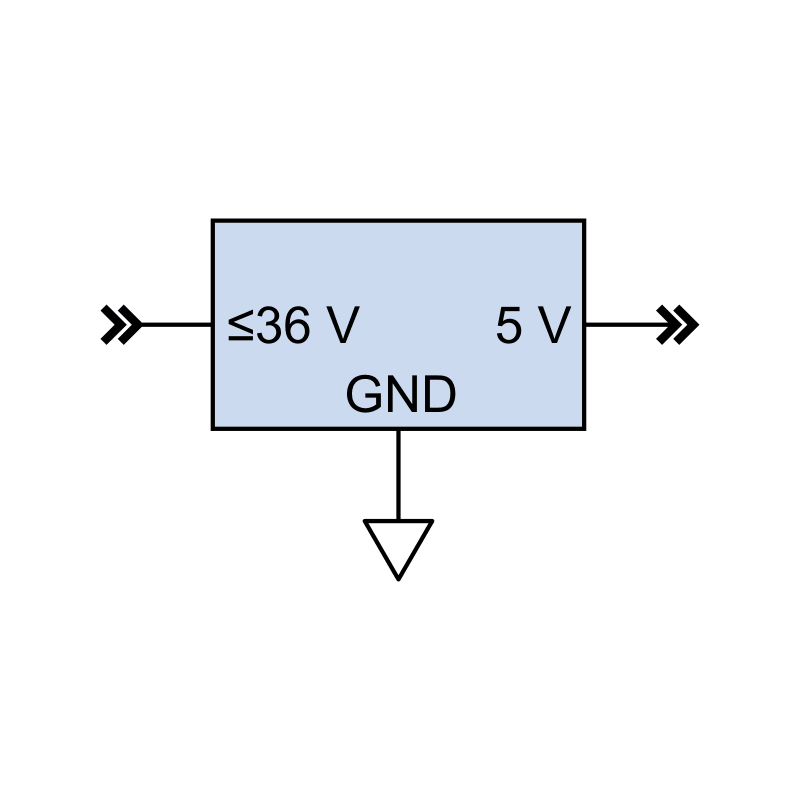

  • Input voltage to 36VDC
  • 5V Regulated Output
  • Reverse Battery Protection
  • Excellent immunity to Transients and ESD

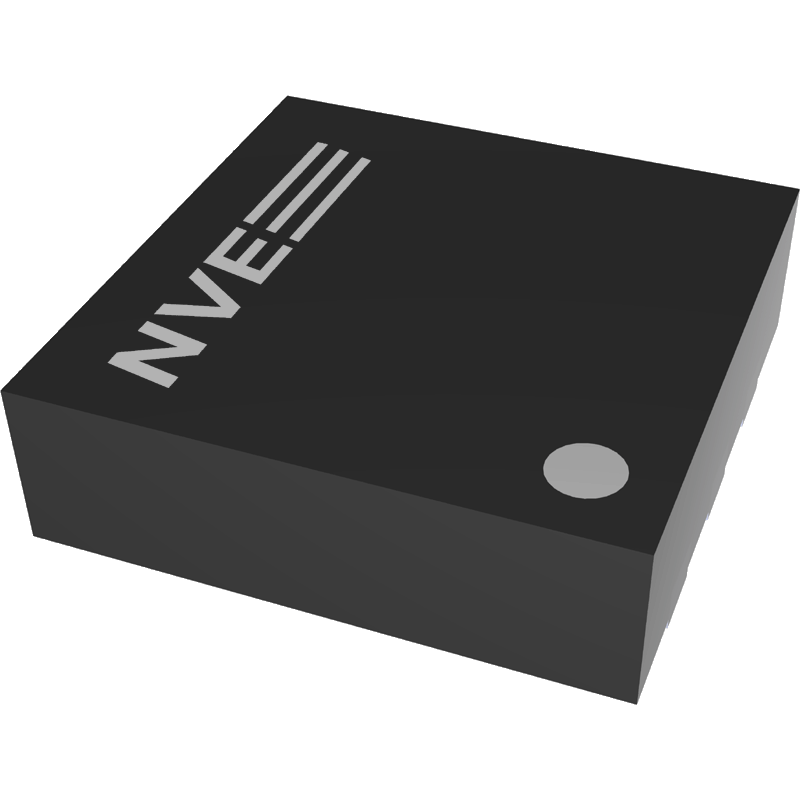

  • Small, Low Profile Surface Mount Packages

Note: Parts must be purchased in multiples of 100 for quantities of 100 or more. Larger quantities are subject to NVE standard lead times.



RoHS compliant.

Lead-free product information

$2.50
1 - 9 $2.50
10 - 99 $1.85
100 - 499 $1.45
500 + $1.00
2546 in stock
