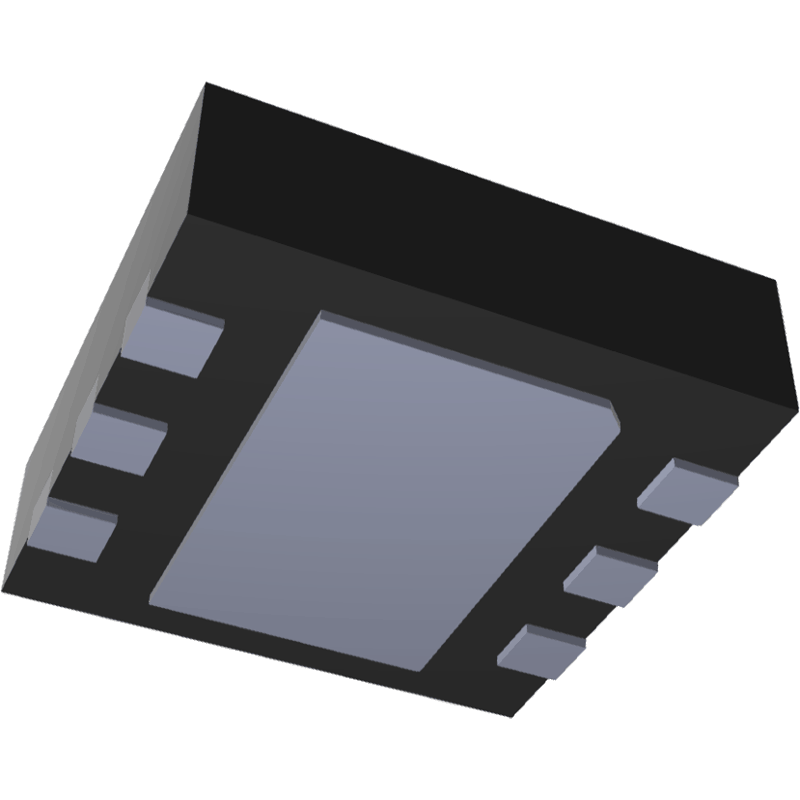

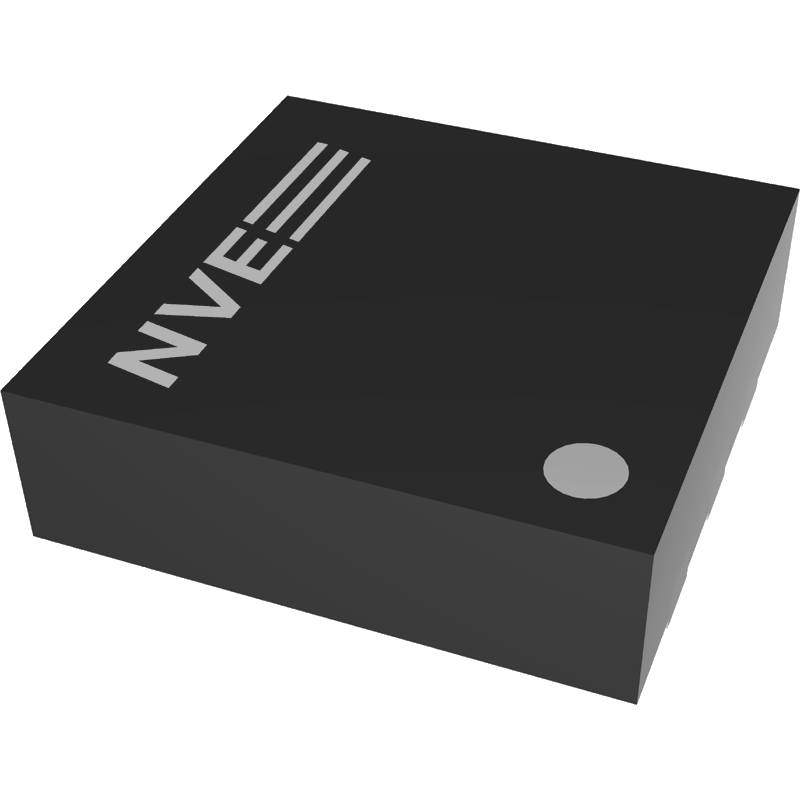

ASR022-10E: ABZ Noncontact TMR Encoder Sensor, DFN6

  • Part Number
  • ASR022-10E
  • Magnetic Field Operating Range (mT)
  • Resolution (bits)
  • Supply Current @ 3.3 V (µA)
  • Max. Temperature (°C)

Description:

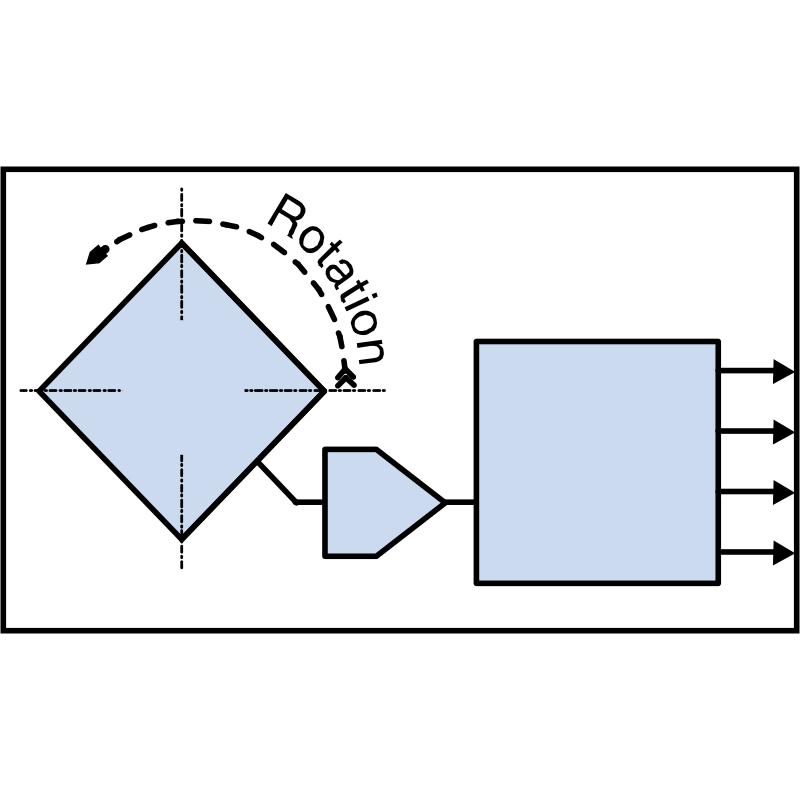

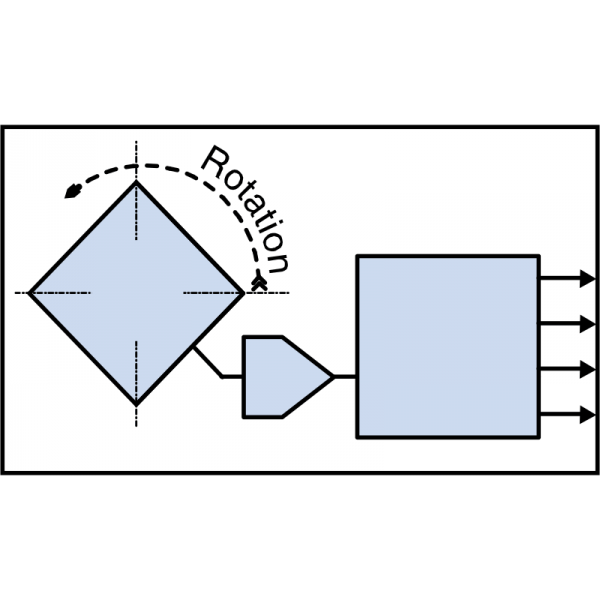

ASR022 noncontact TMR encoder sensors provide precise pulses indicating angular motion, and is more accurate and smaller than other non-contact encoders.

An ABZ interface allows the ASR022 to replace legacy optical encoders.

The sensor combines precise, low-power Tunneling Magnetoresistance (TMR) sensing elements with sophisticated digital signal processing.

The sensor is factory calibrated, with coefficients stored in internal memory.

The ASR022 is designed for harsh industrial or automotive environments with ESD protection, and full −40 °C to 125 °C operating temperature range.
$8.98
1 - 9 $8.98
10 - 99 $6.78
100 - 499 $4.87
500 + $3.43
710 in stock
