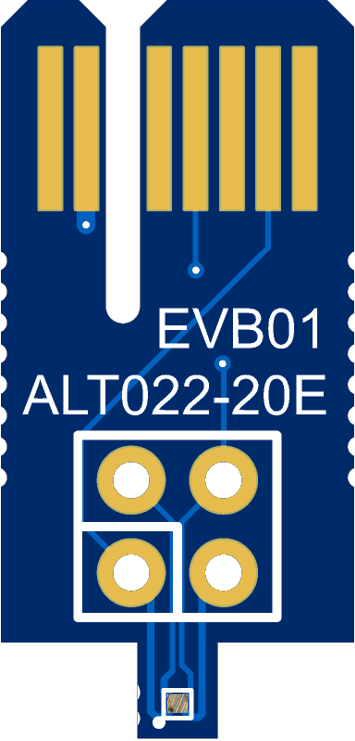

A 0.8 x 0.4 inch (21 x 10 mm) breakout board with the ALT022-20E 0.58 x 0.58 mm WLCSP Tunneling Magnetoresistance (TMR) analog bridge magnetometer. The board has a pre-soldered sensor and footprints for a standard 0.1" (2.54 mm) header and a 1 mm pitch card-edge connector.
The board can be powered by a 0 to 10 V supply and provides a linear, differential output voltage. |
