AHL025-20E: 1 mT, 1.5V, Duty-Cycled Nanopower GMR Switch, WLCSP
AHL025-20E: 1 mT, 1.5V, Duty-Cycled Nanopower GMR Switch, WLCSP
Part Number
AHL025-20E
Technology
GMR
Magnetic Polarity
Omnipolar
Magnetic Operate Point (mT)
1
Magnetic Release Point (mT)
0.5
Duty Cycling
Duty Cycled
Output
Sink
Direction of Sensitivity
Cross-axis
Supply Voltage (V)
0.9 to 2.4
Supply Current @1.5 V (µA)
0.095
Output Current (mA)
0.1
Max. Temperature (°C)
85
Package

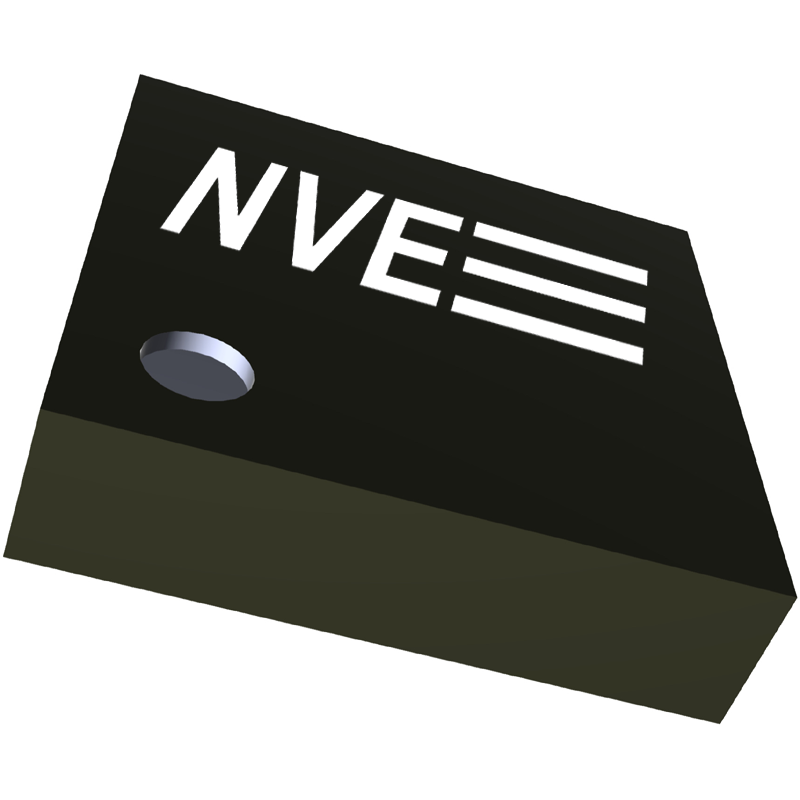

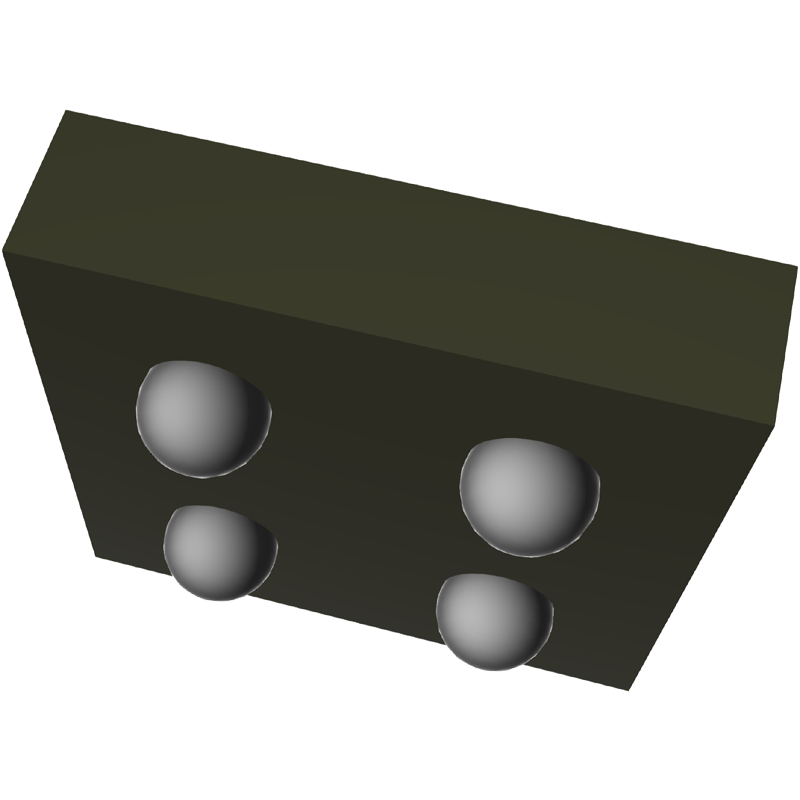

0.65 x 0.65 mm WLCSP
Data Sheet
(.pdf)
Package Outline
(.pdf)
3D
(.step)
(External Link)
Description:
AHL-Series Nanopower Switches integrate GMR sensor elements with digital onboard signal processing.
Features:
Ultraminiature 0.65 x 0.65 mm WLCSP
Low Voltage Operation to 0.9 V
0.095 µA Supply Current @1.5 V
Digital Switch Output
Applications:
Battery-Powered Devices
Portable Instruments
1 - 9
$
8.36
10 - 99
$
6.22
100 - 499
$
4.84
500 +
$
4.35
Qty:
200 in stock
$
8.36
Add to Cart
In your cart
Add to Cart
Notify me when in stock
Related Products
AHL025-20E-EVB01: 1 mT, 1.5V, WLCSP GMR Switch Breakout Board
$29.95
