AHL024-20E: 2.8 mT, 1.5V, Duty-Cycled Nanopower GMR Switch, WLCSP

  • Part Number
  • AHL024-20E
  • Magnetic Operate Point  (mT)
  • 2.8
  • Magnetic Release Point  (mT)
  • 2
  • Supply Current @1.5 V (µA)
  • 0.095
  • Output Current (mA)
  • 0.1
  • Max. Temperature (°C)
  • 85
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
(External Link)
×
×
Model for 0.65-x-0.65-mm-WLCSP

Description:

AHL-Series Nanopower Switches integrate GMR sensor elements with digital onboard signal processing.

Features:

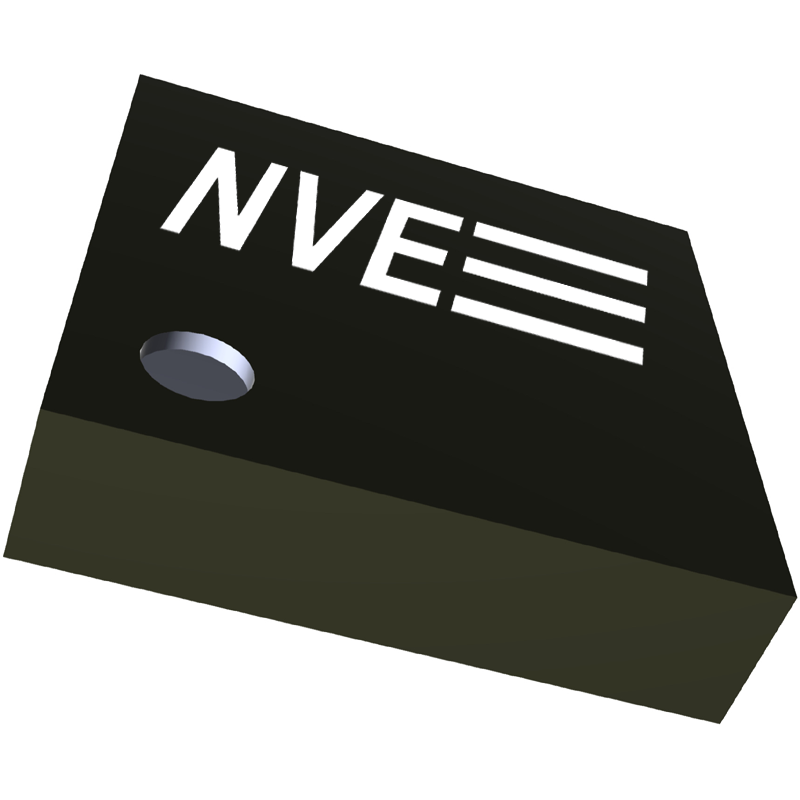

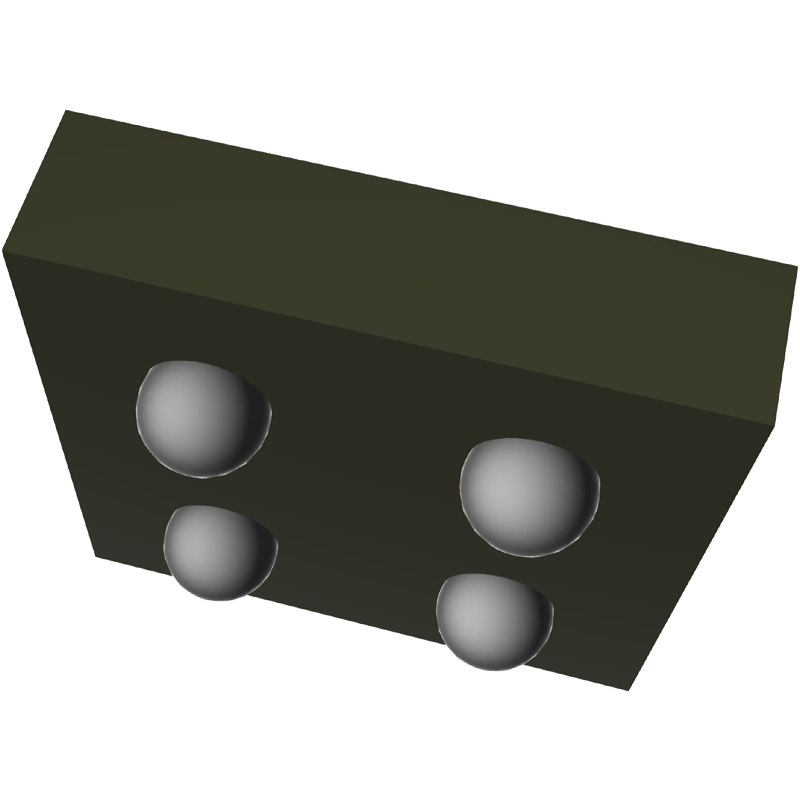

  • Ultraminiature 0.65 x 0.65 mm WLCSP
  • Low Voltage Operation to 0.9 V
  • 0.095 µA Supply Current @1.5 V
  • Digital Switch Output
  • Battery-Powered Devices
  • Portable Instruments
    • 1 - 9 $8.36
    10 - 99 $6.22
    100 - 499 $4.84
    500 + $4.35
    50 in stock
    $8.36
